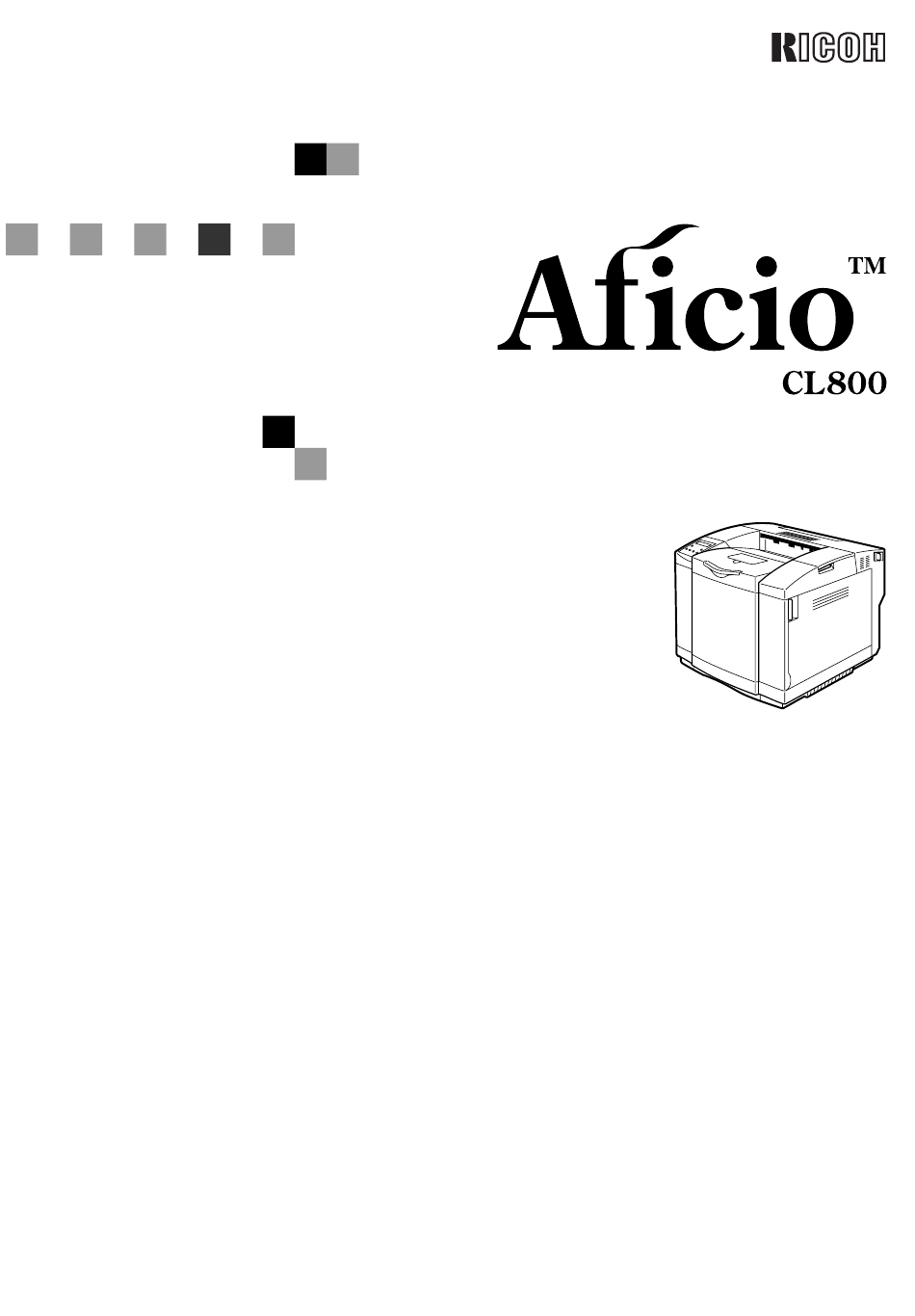

- Page 1 Option Setup Guide Read this manual carefully before you use this product and keep it handy for future reference. For safe and correct use, please be sure to read the Safety Information in the Setup Guide before using the machine.
- Page 2 Introduction This manual describes detailed instructions on the operation and notes about the use of this machine. To get maximum versatility from this machine all operators are requested to read this manual carefully and follow the instructions. Please keep this manual in a handy place near the machine. Important Contents of this manual are subject to change without prior notice.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Options.................... 1-1 Chapter 2 Paper Feeder................... 2-1 1. Packed Supplies ..................2-2 2. Before Installing to the Printer ..............2-3 3. Installation....................2-4 4. After Installation ..................2-6 Chapter 3 Duplex Unit ..................3-1 1. Packed Supplies ..................3-2 2. -
Page 5: Chapter 1 Options
Chapter 1 Options... - Page 6 Options The printer has the following options. CAUTION • Before installing options, the machine should be turned off and unplugged for at least an hour. Components inside the machine become very hot, and can cause a burn if touched. • Before moving the machine, unplug the power cable from the outlet. If the cable is unplugged abruptly, it could become damaged.
-
Page 7: Chapter 2 Paper Feeder
Chapter 2 Paper Feeder 1. Packed Supplies------------------------------------------------ 2-2 2. Before Installing to the Printer ---------------------------- 2-3 3. Installation-------------------------------------------------------- 2-4 4. After Installation------------------------------------------------ 2-6... -
Page 8: Packed Supplies
1. Packed Supplies The following are packed for the supplies of the paper feeder. If some of the supplies are missing or damaged, contact your sales representative. g Paper feeder unit (with Paper cassette) g Left cover g Right cover g Two Metal stoppers... -
Page 9: Before Installing To The Printer
2. Before Installing to the Printer Since the paper feeder is installed at the bottom of the printer, you must position the printer so that you are able to install the paper feeder in it. CAUTION • The printer weights approxi-mately 31.5 kg (69.4 lb). When moving the printer, use the inset grips on both sides, and lift slowly. -
Page 10: Installation
3. Installation To install a paper feeder in the printer, follow the procedures below. connection steps Guide pins (a) Install the paper feeder in place. (b) Place the printer on the paper feeder. Gently insert the right guide pin on the paper feeder into the pin hole at the bottom of the printer. - Page 11 (d) Tighten the thumb screw at the right front of the paper feeder. Make sure that the tab has been placed into the printer and paper feeder. (e) Install the left cover. Hook the pivot at the left back of the paper feeder and turn the left cover around the pivot and fit it (f) Install the left cover.
-
Page 12: After Installation
(g) Turn the two rubber feet to lightly touch them to the installation. The rubber foot is located at the back of the paper feeder. When you turn it right, the rubber foot lowers. Stopper Rubber foot (h) Secure the rubber foot with a stopper. When you turn the stopper left to lift it up, the rubber foot is secured. -
Page 13: Chapter 3 Duplex Unit
Chapter 3 Duplex Unit 1. Packed Supplies------------------------------------------------ 3-2 2. Installation-------------------------------------------------------- 3-3 3. After Installation------------------------------------------------ 3-5... -
Page 14: Packed Supplies
1. Packed Supplies The contents of the package are as follows. If any component is missing or damaged, contact your dealer. g Duplex unit itself... -
Page 15: Installation
2. Installation Install the duplex unit to the printer according to the following procedure. CAUTION • Lifting the duplex unit carelessly or dropping it may cause injury. • The inside of this machine gets very hot. Do not touch parts labeled “... - Page 16 (e) Remove the duplex connector cap from the back of the printer. Keep all the covers and cap carefully. (f) Hold the duplex unit grasping the grips in the right and left sides of the unit. (g) Set the duplex unit to the lower positioning groove of back cover.
-
Page 17: After Installation
Setscrew Open the duplex cover, incline the paper reverse unit, and then tighten the setscrews. Push against the setscrews to tighten them further. When the setscrew starts tightening, poll away the green part, and continue Paper reverse unit to tighten. Be sure to push in the setscrews after tightening them. -
Page 19: Chapter 4 Adjusting Paper Feeder And Duplex Unit
Chapter 4 Adjusting Paper Feeder and Duplex Unit 1. Adjusting Left and Right Margins ------------------------ 4-2 2. Confirming Left and Right Margins after Adjustment - 4-3... -
Page 20: Adjusting Left And Right Margins
1. Adjusting Left and Right Margins If the test printout is biased horizontally, adjust the left and right margins using the utility function of the control panel. Procedure for adjusting the left and right margins (a) Perform test print. (See Operating Instructions attached to the CD-ROM.) i. -
Page 21: Confirming Left And Right Margins After Adjustment
(h) Press key proper times to select the menu item as follows. Utility Menu h When adjusting the left and right margins for tray2: Tray2 Margin h When adjusting the left and right margins for duplex Utility Menu Duplex Margin print: The subsequent explanation assumes adjustment for tray 2. - Page 23 Copyright © 2004...
- Page 24 RICOH COMPANY, LTD. 15-5, Minami Aoyama 1-chome, Minato-ku, Tokyo 107-8544, Japan Phone: +81-3-3479-3111 Overseas Affiliates U.S.A. Spain RICOH CORPORATION RICOH ESPAÑA S.A. 5 Dedrick Place Avda. Litoral Mar, 12-14, West Caldwell, New Jersey 07006 Blue Building, Marina Village, Phone: +1-973-882-2000 08005 Barcelona Phone: +34-(0)93-295-7600 The Netherlands...
