This guide outlines the steps required to install the Rabid
Elephant MidiBrains 2v1 MIDI interface board into a Mr. Black
Eterna reverb pedal.
MidiBrains is easy to install but some pedals require special
considerations depending on the effect circuit.
installing MidiBrains
understand how MidiBrains likes to be connected before diving
in.
MidiBrains uses 2 mm pitch dual-row connectors for all
connections to the MidiBrains board. Your kit comes with pre-
crimped wire harnesses. Use them. The MidiBrains headers
are labeled on the PCB.
Installation time is approximately 2.5 hours if you are
thorough, take your time, and check your work.
desoldering and cleaning out pads, we find the best tool is
decent quality #2 solder wick. Also ensure a static-safe work
environment throughout the installation process.

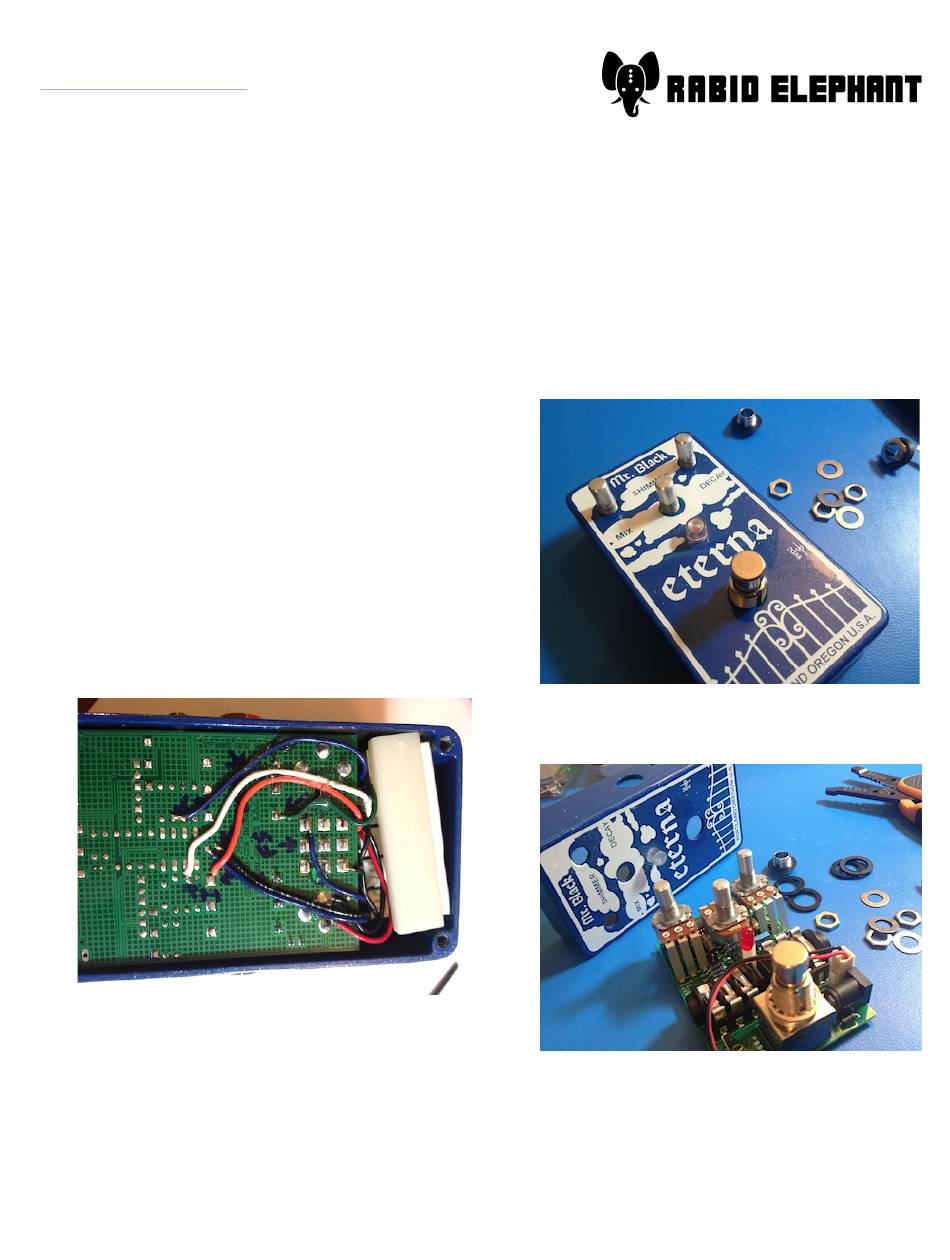

The installation should resemble Figure 1 when finished.
Figure 1. What the wiring should resemble when you are
done.
Please note that modification of MidiBrains into the Eterna
requires cutting PCB traces since everything on the Eterna is
PCB mount. MidiBrains always retains at least the stock
functionality of the devices it's installed so it's not a big deal.
0
V
The Rabid Elephant recognizes his reflection...
If you are
yourself, please make sure
© 2013 Rabid Elephant
2 D
ISASSEMBLY
Remove power from the Mr. Black Eterna before proceeding.
Remove the 4 screws on the back of the Eterna and remove the
cover.
2.1 R
EMOVING THE
Remove the knobs by loosening the setscrews.
Remove pot, jack, and switch nuts as shown in Figure 2 to
allow removal of the PCB. We will be using the stock switch
– leave it installed.
you
For any
Figure 2. Nuts off.
The PCB is now be free and can be removed from the
enclosure as shown in Figure 3.
Figure 3. The PCB has been removed.
3 PCB M
ODIFICATIONS
You will need a needle file (with a sharp cutting edge on its
side – like a half-round or some shiz) to cut through several
Page 1 of 4
PCB
