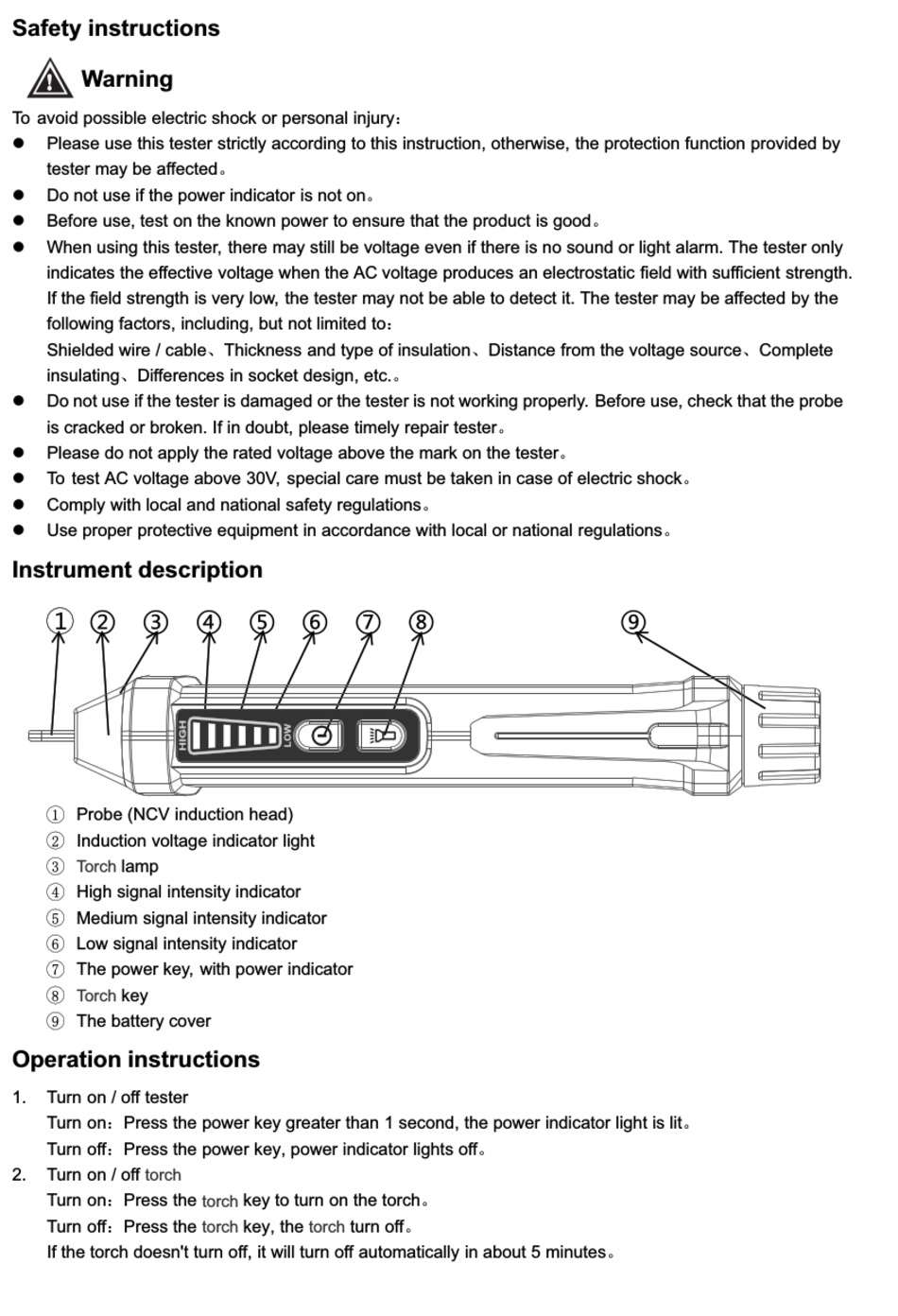

Safety instructions
Warning
To avoid possible electric shock or personal injury：
l
Please use this tester strictly according to this instruction, otherwise, the protection function provided by
tester may be affected。
l
Do not use if the power indicator is not on。
l
Before use, test on the known power to ensure that the product is good。
l
When using this tester, there may still be voltage even if there is no sound or light alarm. The tester only
indicates the effective voltage when the AC voltage produces an electrostatic field with sufficient strength.
If the field strength is very low, the tester may not be able to detect it. The tester may be affected by the
following factors, including, but not limited to：
Shielded wire / cable、Thickness and type of insulation、Distance from the voltage source、Complete
insulating、Differences in socket design, etc.。
l
Do not use if the tester is damaged or the tester is not working properly. Before use, check that the probe
is cracked or broken. If in doubt, please timely repair tester。
l
Please do not apply the rated voltage above the mark on the tester。
l
To test AC voltage above 30V, special care must be taken in case of electric shock。
l
Comply with local and national safety regulations。
l
Use proper protective equipment in accordance with local or national regulations。
Instrument description
② ③ ④ ⑤ ⑥ ⑦ ⑧
1
1
Probe (NCV induction head)
2
Induction voltage indicator light
3
Torch
lamp
4
High signal intensity indicator
5
Medium signal intensity indicator
6
Low signal intensity indicator
7
The power key, with power indicator
8
key
Torch
9
The battery cover
Operation instructions
1.
Turn on / off tester
Turn on：Press the power key greater than 1 second, the power indicator light is lit。
Turn off：Press the power key, power indicator lights off。
2.
Turn on / off
torch
Turn on：Press the
Turn off：Press the
If the torch doesn't turn off, it will turn off automatically in about 5 minutes。
key to turn on the torch。
torch
key, the
turn off。
torch
torch
⑨
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

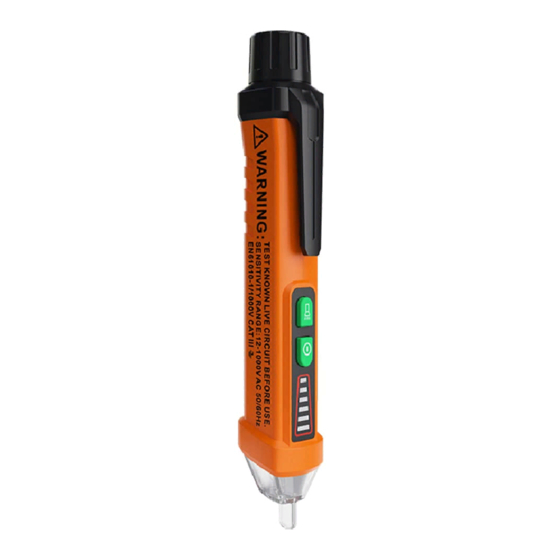

Summary of Contents for PEAKMETER PM8908C
- Page 1 Safety instructions Warning To avoid possible electric shock or personal injury： Please use this tester strictly according to this instruction, otherwise, the protection function provided by tester may be affected。 Do not use if the power indicator is not on。 Before use, test on the known power to ensure that the product is good。...
- Page 2 AC voltage detection The probe tester inserted into the power socket or close to the live wire，When the tester detects the AC voltage signal, the induction voltage signal lamp flashes，According to the detected signal strength, the tester can illuminate the corresponding signal intensity indicator (high, middle, low)，At the same time, the buzzer sends out different alarm sounds。When the AC voltage signal is sensed, Low signal intensity indicator is lit；When sensing a higher AC voltage signal，Light up the signal intensity indicator (middle, low) at the same time；When the highest AC voltage signal is sensed, the signal intensity indicator (high,...
