Summary of Contents for Savannah 390026

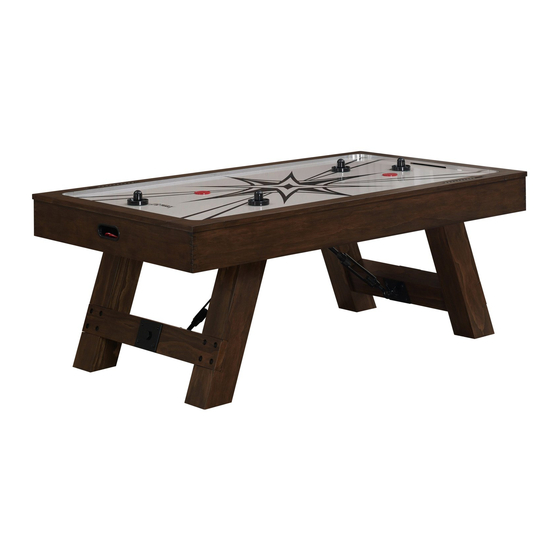

- Page 1 SAVANNAH AIR HOCKEY #390026...
- Page 3 Parts List for Pottery Barn Air Hockey Table Left Leg Right Leg End Leg Panel Main Cabinet 1 piece 2 pieces 2 pieces 2 pieces Turnbuckle lron plate Main plate Support plate 1 piece 2 pieces 2 pieces 2 pieces 5/16"X3/4"...
- Page 4 Step 1： Attach the main plate(#8) on the inside of the end leg panels(#4) using bolts(#9) and washers(#10) Attach the iron plate(#7) to the outside of the end leg panels using bolts(#9) and washers(#10). Step 2： Attach the end leg panel(#4) to the legs(#2 & #3) using bolts(#17) and washers(#10).
- Page 5 Step 3： Attach the legs to the main cabinet(#1) using bolts(#11) and washers(#12) Set the support plate(#6) between the main frame and Attach using bolts(#13) and washers(14). Step 4： Insert the leg levelers(#18) into each leg. Attach the turnbuckle(#5) to the support plate(#6) using bolts(15) and washers(#16) and hang the hook on the mainplate(#8).
- Page 6 Step 5: Set the table right side up using two aduits. Enjoy with your friends and family!
