Summary of Contents for DX Engineering DXE-RSC-2

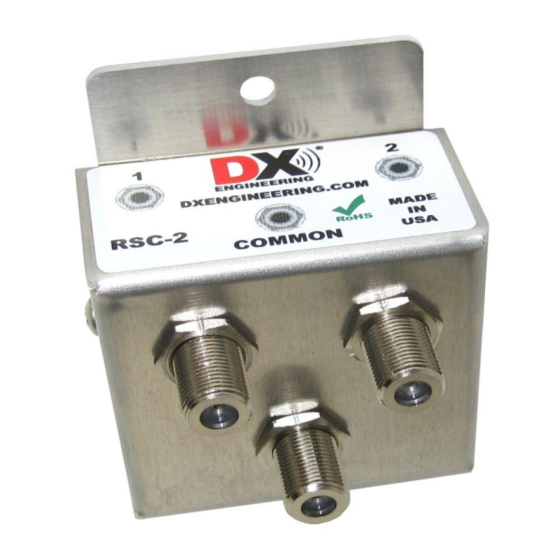

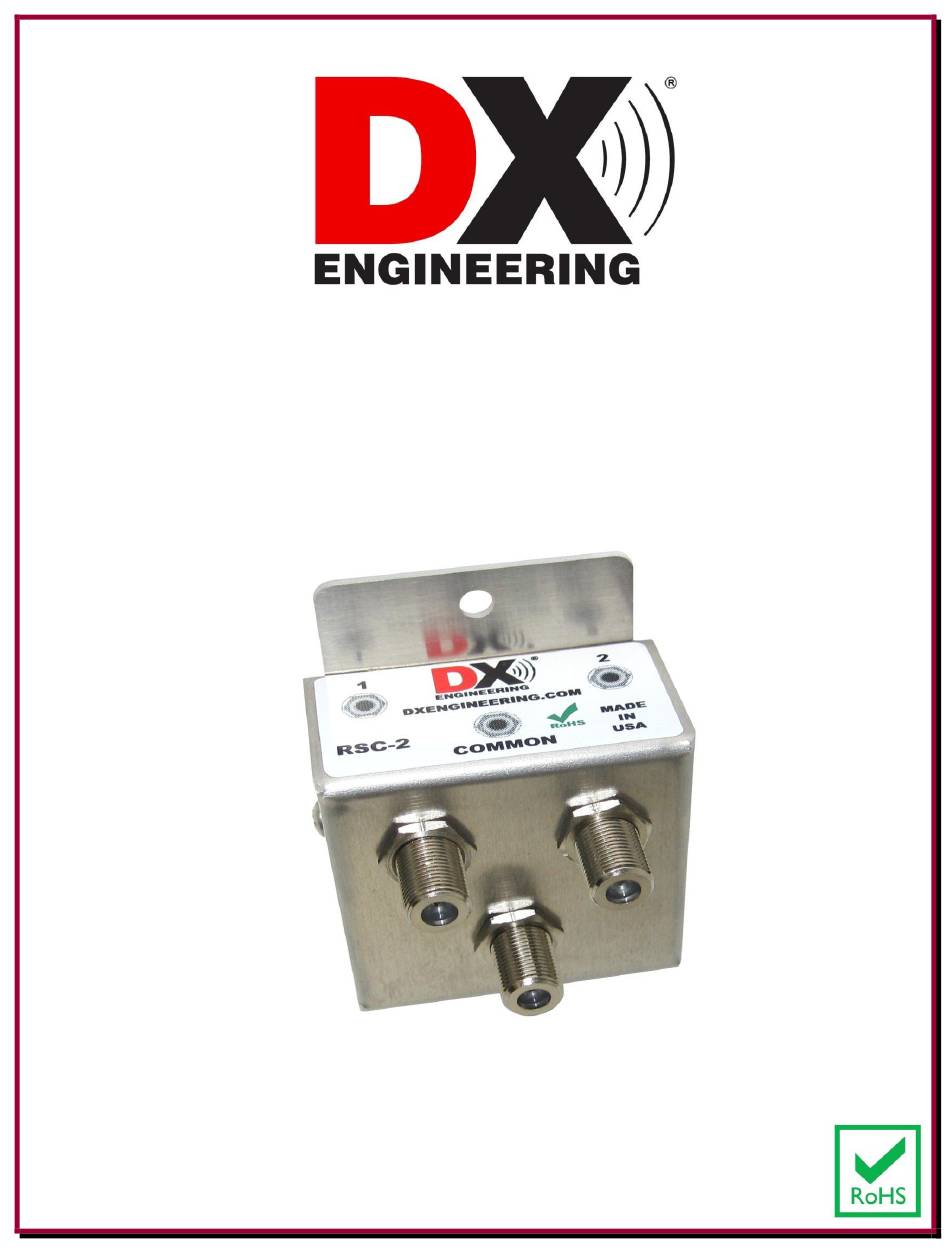

- Page 1 Two-Port Splitter/Combiner DXE-RSC-2 DXE-RCS-2-INS Revision 4 © DX Engineering 2012 P.O. Box 1491 ∙ Akron, OH 44309-1491 Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200 Fax: (330) 572-3279 ∙ E-mail: DXEngineering@DXEngineering.com...
- Page 2 Introduction The DX Engineering RSC-2 can be used to combine two receiving antennas to form an array or to split the signal from an antenna to feed two receivers. The RCS-2 can reduce problems and performance shortfalls caused by impedance errors in less-than-perfect antenna systems.
- Page 3 75 Ω. Connect the feedline to the Common port. In outdoor applications, a bead of non-corrosive, marine grade silicone, like DX Engineering part number DXE-RTV598335, should be used along the seams of the enclosure. Be sure to leave a small opening in the bead, at the lowest point, for a condensation drain.
- Page 4 All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted;...
