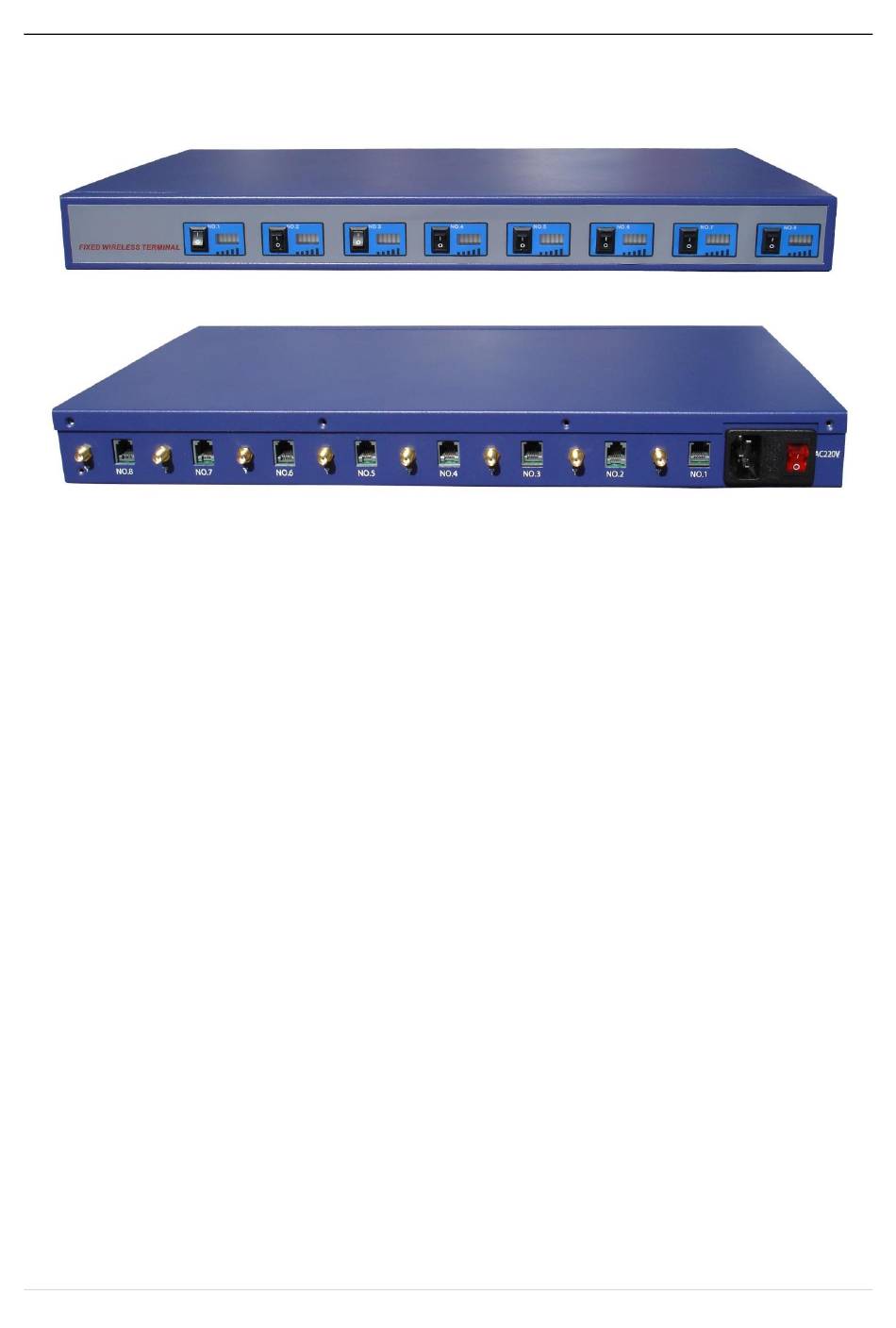

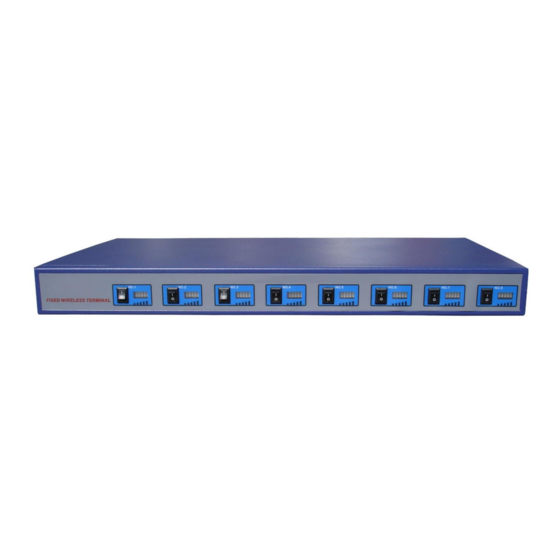

8 Channel GSM Fixed Wireless Terminal (Model: GSM-TIT200A)
1. Functions & Features
The terminal is an eight-channel GSM fixed wireless access terminal. It is suitable in rural and
remote areas where PSTN is not available, and it's also applicable as wireless public phone. It
can be connected to payphone, PBX and charge counter to provide more flexible services to
users. This product has the following function characteristics:
1. Suitable for GSM 900/1800 or 850/1900 MHz network, taking SIM card as wireless interface.
2. Provide the reverse polarity signal for charging.
3. Can be connected with charging counter, payphone and PBX.
4. Can set up call-out/call-in restriction.
5. Caller ID.
6. Hands free, redial, sound volume adjustment while calling in/out.
7. Wireless signal indicator available.
8. Possess an agile function for setting up parameters through the phone set.
9. The power supply of DC12V and AC220V are both OK.
10. PIN code protection.
11. Ingenious outside appearance is the standard 1U 19 inches.
User Manual
1
| P a g e
Advertisement
Summary of Contents for DIGM Technology GSM-TIT200A
- Page 1 8 Channel GSM Fixed Wireless Terminal (Model: GSM-TIT200A) User Manual 1. Functions & Features The terminal is an eight-channel GSM fixed wireless access terminal. It is suitable in rural and remote areas where PSTN is not available, and it’s also applicable as wireless public phone. It can be connected to payphone, PBX and charge counter to provide more flexible services to users.
- Page 2 8 Channel GSM Fixed Wireless Terminal (Model: GSM-TIT200A) 2. Terminal Configurations A terminal is matched with the following parts generally: GSM fixed wireless access terminal: 1 pc Antenna: 8pcs SIM card cover board: 8pcs Telephone line: 8pcs ...
- Page 3 8 Channel GSM Fixed Wireless Terminal (Model: GSM-TIT200A) B) Assembly of the terminal: CAUTION! Make sure that the power switch is turned off. 1. Keep the terminal with fixed SIM card flatwise. 2. Screw down the connector of antenna to the bolt stick on the back of the terminal.
- Page 4 8 Channel GSM Fixed Wireless Terminal (Model: GSM-TIT200A) 4. Operation Instructions Before starting the following operations, please make sure the terminal is connected correctly. Then turn on the power switch in the front of the terminal. A) Explanation of state indicator light (take one port for example): 1) Network indicator (the first light): the light is on, it means the device get connected with network, vice versa.
- Page 5 8 Channel GSM Fixed Wireless Terminal (Model: GSM-TIT200A) Caution! The system setup must be operated by the professional personnel. 7. Technique parameters 1) Working frequency: Transmit band (Tx) Receive band (Rx) GSM 850 824 to 849 MHz 869 to 894 MHz...
-
Page 6: Troubleshooting
8 Channel GSM Fixed Wireless Terminal (Model: GSM-TIT200A) 8. Troubleshooting Notes Working environment: Choose areas with good signal Requirement for the power supply: The reliable and stable power supplies will guarantee the normal working of GSM terminal. Antenna: Keep the antenna far away from the telephone to reduce the communication disturbance.
