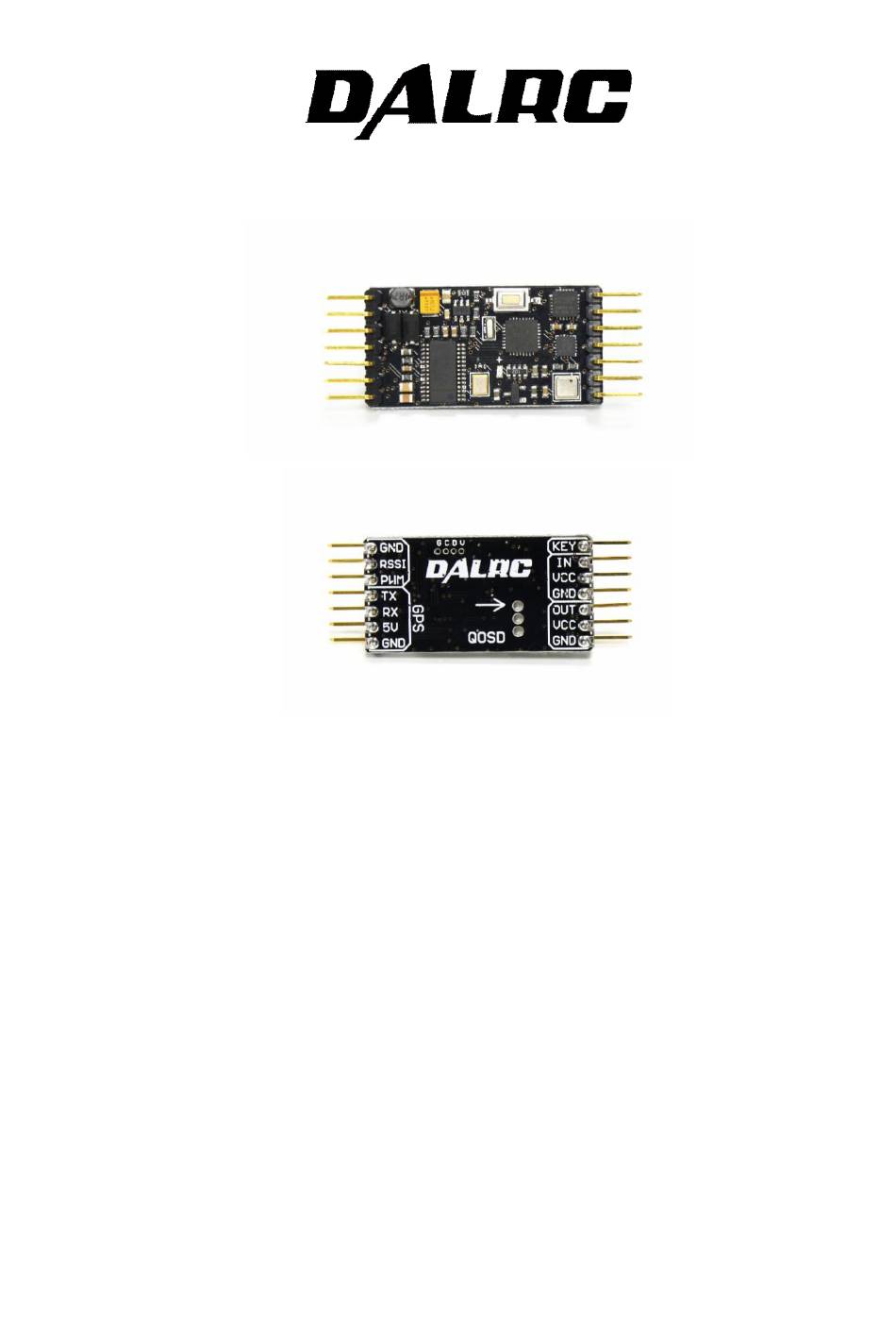

DALRC QOSD product instructions V1.5
QOSD is a completely separate OSD system, simple operation. Do not need any flight
controllers's support and can work independently, with compass, barometer, gyroscope as well as
accelerometer built-in, complete flight data display (it can also be used in car models and ship
models, ). Support GPS, RSSI signal strength and can control OSD switch and other functions by
connecting with receiver
Technical Parameters：
Weight：4.8g
Dimension：36.7*19.6MM
Sensor：Compass, barometer, gyroscope, accelerometer
Operating Voltage：6-26V
GPS baud rate：NEMA
0813 4800/9600/19200/38400/57600/115200
Advertisement
Summary of Contents for DALRC QOSD
- Page 1 DALRC QOSD product instructions V1.5 QOSD is a completely separate OSD system, simple operation. Do not need any flight controllers‘s support and can work independently, with compass, barometer, gyroscope as well as accelerometer built-in, complete flight data display (it can also be used in car models and ship models, ).
-
Page 2: Hardware Connection Description
1：Hardware Connection Description... -
Page 3: Remote Control Function
After enter QOSD homepage, short press the QOSD board button recording the home position meanwhile clear time to 0 , Under the main page, press QOSD board button about 2 seconds enter the OSD setup menu, short press to “next”,long press (about 2 seconds) to “YES / BACK.”... - Page 4 17：Maximum flight speed (default is not shown) 18：Maximum line distance (default is not shown) QOSD data can be customized switch, user can display or close any of the contents, QOSD interface display position can not be changed but CUSTOM custom interface display position can...
- Page 5 After enter QOSD homepage, short press the QOSD board button recording the home position meanwhile clear time to 0 , Under the main page, press QOSD board button about 2 seconds enter the OSD setup menu, short press to “next”,long press (about 2 seconds) to “YES / BACK.”...
- Page 7 OSD overlay, pull out the camera to change the system can be (the display should be PAL or NTSC standard) 6：OSD display type: QOSD for the default interface, such as QOSD interface data display is not complete, switch to QOSD1. CUSTOM for the custom interface, each content can change the location (can be changed in 10 MENU CUSTOM) 7 ：...
- Page 8 8：Auto setting home: ON OFF 9：Horizon Display：ON OFF 10：Custom Menu 11: second page setup menu 12：Directions acquisition device (AUTO, COMPASS, GPS, recommend the use of compass) 13：Mounting direction (FRONT BACK LEFT RIGHT, direction arrows GOSD ago) 14 ： The rolling sense (the horizon does not coincide or the reverse is set, generally without setting).
- Page 9 23：Time display (switch position adjustment) 24：Speed display (switch position adjustment) 25：Height of the display (switch position adjustment) 26：Direction of home display (switch position adjustment) 27：From the home display (switch position adjustment) 28：Total flight display (switch position adjustment) 29：Remote RSSI signal strength display (switch position adjustment) 30：Vertical speed display(switch position adjustment) 31: fourth page setup menu (MENU CUSTOM) 32：Latitude and longitude display (switch position adjustment)
-
Page 10: Firmware Upgrade
38：Maximum speed is displayed (switch position adjustment) 39：Center of the screen display (switch position adjustment) 40：Previous Menu 41：Exit menu 42：fifth page of the setup menu (CUSTOM MENU submenu) 43：Display (ON OFF) 44：Row (from the left count) 45：Column (start counting from the top) 46：SAVE Firmware upgrade：... - Page 11 QOSD support online upgrade software, need to access the internet. Press OSD button to insert power，OSD will enter the upgrade mode (LED flash)，Note: need to insert power and upgrade module at the same time in case the insufficient voltage of the upgrade module，...
- Page 12 Other: OSD Connect the power immediately after pressing the button, this model has a complete sensor data, for professional players you refer! OK：Compass POST OK MAG：Compass raw data (three arrows indicate the data no problem) GYRO：Gyro raw data DMP: Stable posture filtered data ACCE：Accelerometer H：Altitude PWM：Control channel data...
