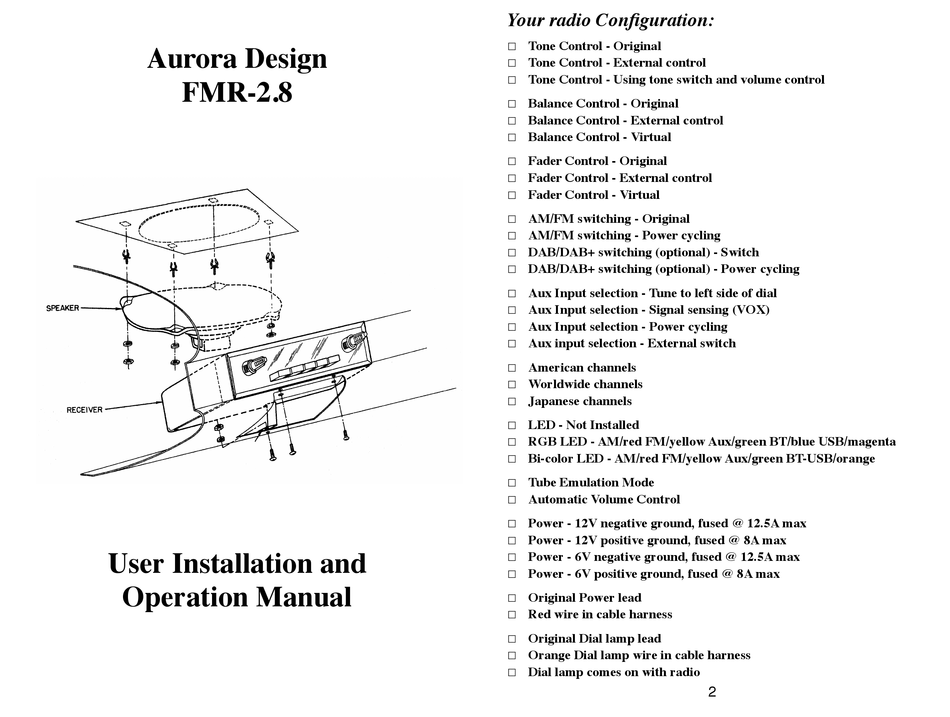

Aurora Design FMR-2.8 User's Installation And Operation Manual

Your radio Configuration:
☐ Tone Control - Original
Aurora Design
☐ Tone Control - External control
☐ Tone Control - Using tone switch and volume control
FMR-2.8
☐ Balance Control - Original
☐ Balance Control - External control
☐ Balance Control - Virtual
☐ Fader Control - Original
☐ Fader Control - External control
☐ Fader Control - Virtual
☐ AM/FM switching - Original
☐ AM/FM switching - Power cycling
☐ DAB/DAB+ switching (optional) - Switch
☐ DAB/DAB+ switching (optional) - Power cycling
☐ Aux Input selection - Tune to left side of dial
☐ Aux Input selection - Signal sensing (VOX)
☐ Aux Input selection - Power cycling
☐ Aux input selection - External switch
☐ American channels
☐ Worldwide channels
☐ Japanese channels
☐ LED - Not Installed
☐ RGB LED - AM/red FM/yellow Aux/green BT/blue USB/magenta
☐ Bi-color LED - AM/red FM/yellow Aux/green BT-USB/orange
☐ Tube Emulation Mode
☐ Automatic Volume Control
☐ Power - 12V negative ground, fused @ 12.5A max
☐ Power - 12V positive ground, fused @ 8A max
☐ Power - 6V negative ground, fused @ 12.5A max
User Installation and
☐ Power - 6V positive ground, fused @ 8A max
Operation Manual
☐ Original Power lead
☐ Red wire in cable harness
☐ Original Dial lamp lead
☐ Orange Dial lamp wire in cable harness
☐ Dial lamp comes on with radio
! 2
