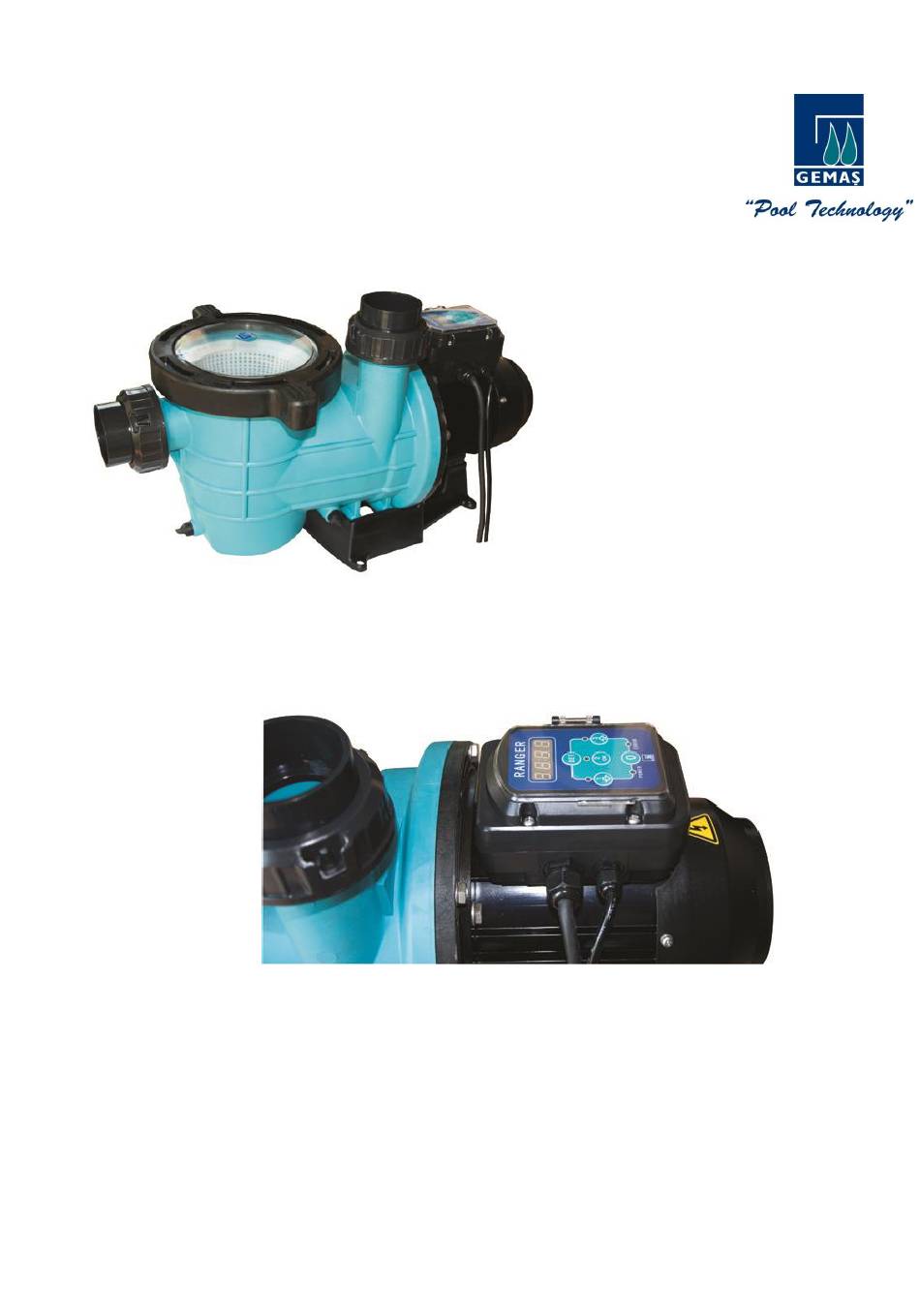

- Page 1 GEMAS RANGER PUMP INSTRUCTION MANUAL...
- Page 2 Pumps are complete with 5 wire cable for connection. Cable colours are shown on below chart with RPM amounts. Cables should be connected to dry contact. Contacts must be changed seperately. Otherwise speed can not be adjusted.
- Page 3 PUMP CONTROLLER OPERATION GUIDE Rev.1.2 The pump controller version 1.2 provides two pump operation modes of constant power control and constant speed control with advanced sensorless sine wave vector control method.A four- digits each with 7-segment led displays the motor speed, power percentage, and fault code information (1) LED window: displays the current speed of the motor, or error code message.
- Page 4 Presetting the control mode and control signal source Keep the "SET" button be pressed when turning on the ac power supply till the LED display shows "0" . The digit is for control mode setting. The digits can be changed with the buttons “▼▲”. Press "OK" button to save the settings, and the display shows "OFF".
- Page 5 Presetting the fixed power in constant power operation mode The power or flow is shown in percentage of the maximum power rating or flow rating. In constant power operation mode or constant flow operation mode, press the button "1", "2" or "3" of the fixed value which is to be changed and the LED window displays the current power percentage, then keep the "SET"...
- Page 6 Stop operation 1. Button "0" is pressed; 2. stop signal is detected if wire control is selected 3. Fault occurred If the pump is stopped normally as in the above case 1~3, the "Power" LED flashes and the LED display shows "OFF", while the LED shows an error code if the pump is stopped due to a fault.
- Page 7 Recover factory default settings The motor can be reset to the state of factory delivery by pressing the "SET" button for at least 15 seconds. The three lights of the fixed speeds and the power light turn on. The motor starts to run by the default preset speed after the "SET"...
- Page 8 Fault alarm In case of an error occurs, the Error light turns on and the LED window displays an error code. The message will not be cleared until the fault is disappeared or the power supply is turned off. The controller records the latest 8 errors, and the error history can be viewed one by one in the LED window.
