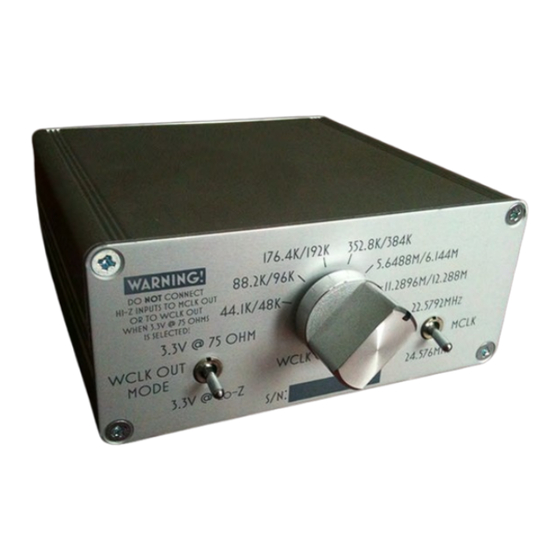

M2TECH EVO CLOCK User Manual

High performance clock generator
Hide thumbs Also See for EVO CLOCK:

Advertisement

Table of Contents

M2TECH
E
C
VO
LOCK
HIGH PERFORMANCE CLOCK GENERATOR
USER MANUAL
REV. P
B – 12/2011
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVO CLOCK and is the answer not in the manual?

Questions and answers

Summary of Contents for M2TECH EVO CLOCK

  • Page 1 M2TECH LOCK HIGH PERFORMANCE CLOCK GENERATOR USER MANUAL REV. P B – 12/2011...
  • Page 2 Materials recycling helps saving natural resources. For more in-depth information about recycling this product, please contact M2Tech Srl. Copyright © 2011, M2Tech Srl...
  • Page 3 LOCK features two high precision, low phase noise temperature compensated crystal oscillators, custom-made for M2Tech, low-noise regulators to avoid injecting jitter by the supplies, transformer-coupled outputs and a wide range of frequencies. Two outputs are available: one is specifically designed for the hi vo, the other is for more general usage with other market equipment which accept word clocks.

  • Page 4: Table Of Contents

    M2Tech LOCK HIGH PERFORMANCE CLOCK GENERATOR www.m2tech.biz REVISION P B – DECEMBER 2011 INDEX 1. Unpacking........................5 2. Front Panel ........................6 3. Back Panel........................7 4. Connections........................8 5. Digital Audio connections and jitter..................9 6. Technical Specifications ....................10 Copyright © 2011, M2Tech Srl...

  • Page 5: Unpacking

    HIGH PERFORMANCE CLOCK GENERATOR www.m2tech.biz REVISION P B – DECEMBER 2011 1. Unpacking LOCK box contains the following items: LOCK • • 9V/2A wall adaptor Should any item be missing, please contact your dealer for a warranty claim. Copyright © 2011, M2Tech Srl...

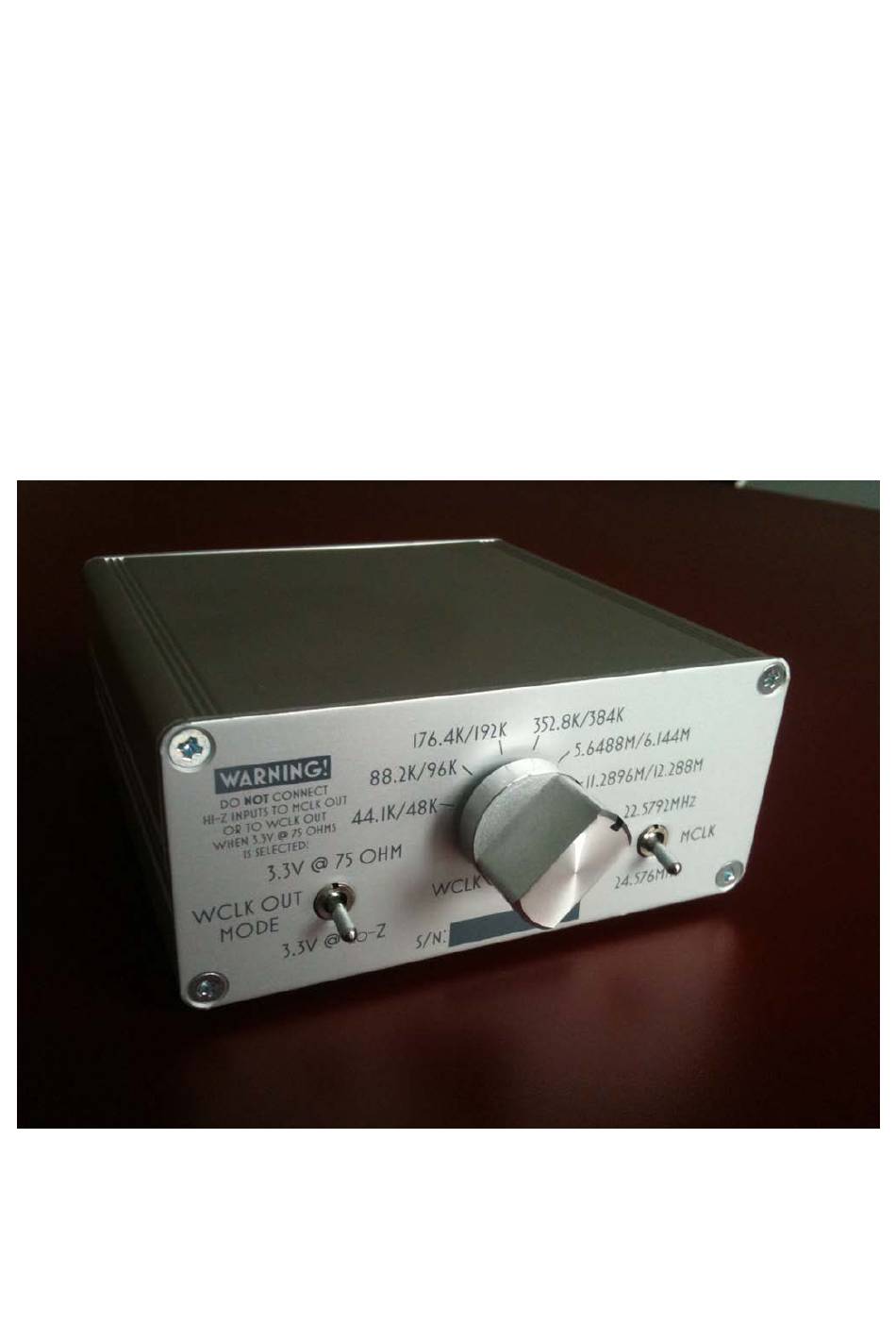

  • Page 6: Front Panel

    75 Ohm load for matched connection). When the latter option is selected, a 75 Ohms cable should be used for best performance. UPPLY are 4) Power indicator. Turns on when the stock wall adaptor or the LOCK. connected to the Copyright © 2011, M2Tech Srl...

  • Page 7: Back Panel

    LOCK together with an HI vo, use the upper position When using the (22.5792MHz) for files with 44.1, 88.2 and 176.4 sampling frequency; use the lower position (24.576MHz) for files with 48, 96 and 192 sampling frequency. Copyright © 2011, M2Tech Srl...

  • Page 8: Connections

    We recommend a 75 Ohms cable when using the MCLK output and when feeding a 75 Ohms input. UPPLY to the supply connector (Page Connect the output plug of the wall adaptor or LOCK. 6, no.1) of Copyright © 2011, M2Tech Srl...

  • Page 9: Digital Audio Connections And Jitter

    LOCK is designed keeping this guidelines in mind: very low phase noise custom made TCXO’s are used, along with special low noise regulators to achieve very high performance. Copyright © 2011, M2Tech Srl...

  • Page 10: Technical Specifications

    Phase noise (@ 1KHz): ....-145dBC/Hz min Precision: .......... +/- 1.5ppm 0°C to 50°C Temperature stability: ....... +/-1ppm stability: ........+/-0.3ppm Operative temperature range:... 0°C to 50°C Size: ..........105x50x104mm (cabinet) 105x50x150mm (with connectors) Weight:..........400g Copyright © 2011, M2Tech Srl...
