Summary of Contents for KINGS 3500iO

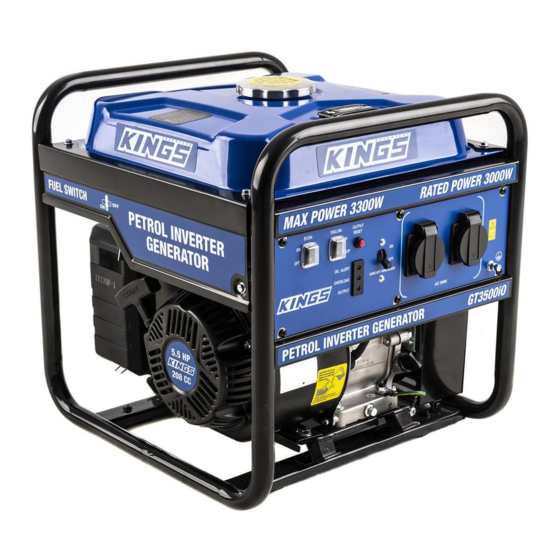

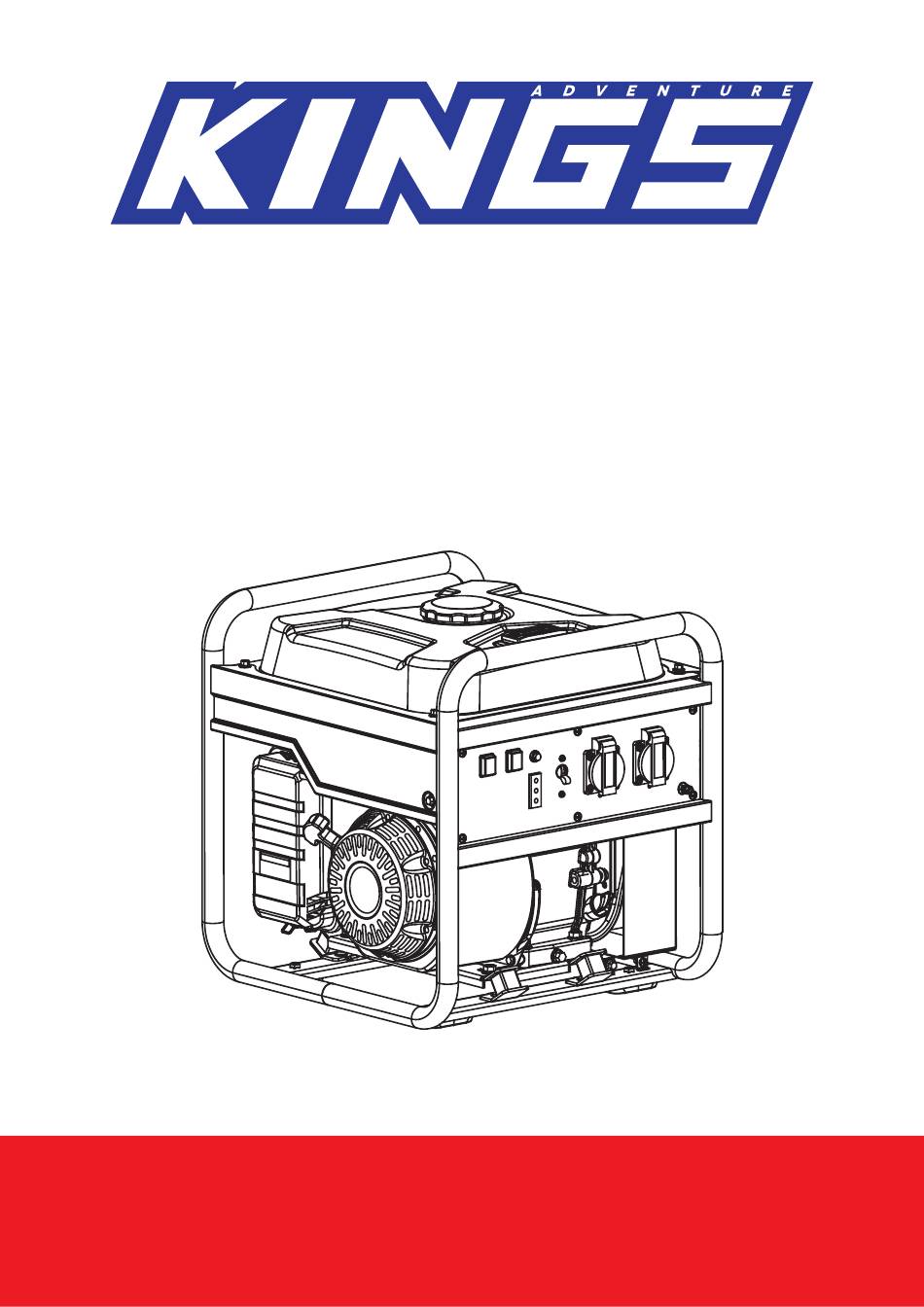

- Page 1 3000W RATED POWER INVERTER GENERATOR USER MANUAL AKGE-3.0KGO_01 V1.2 PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE USING THIS PRODUCT.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INFORMATION 2. CONTROL FUNCTIONS 3. PRE-OPERATION CHECK 4. OPERATION 5. PERIODIC MAINTENANCE 6. TROUBLESHOOTING 7. STORAGE 8. SPECIFICATIONS 9. WIRING DIAGRAM 10. WARRANTY CARD... -
Page 3: Safety Information
1. SAFETY INFORMATION EXHAUST FUMES ARE POISONOUS • Never operate the engine in an enclosed space or it may cause unconsciousness and death within a short time. Operate the engine in a well-ventilated area. FUEL IS HIGHLY FLAMMABLE AND POISONOUS •... - Page 4 CONNECTION NOTES • Do not connect the generator to any power outlet. • Do not connect the generator in parallel with any other generator. • This generator is designed for portable use to supply power to appliances connected to its socket outlets.
-
Page 5: Control Functions
2. CONTROL FUNCTIONS GENERATOR OVERVIEW (1) Carrying handle (2) Fuel tank (3) Economy control switch (4) Engine switch (5) Output reset (6) Breaker circuit (7) AC receptacle (8) Fuel meter (9) Fuel tank cap (10) Fuel filter (11) Spark plug (12) Air filter (13) Choke button (14) Carburetor... - Page 6 OIL WARNING SYSTEM When the oil level falls below the lower level, the engine stops automatically. Unless you refill with oil, the engine will not start again. CIRCUIT BREAKER The circuit breaker switch controls the AC output. ① AC output is on. ②...
-
Page 7: Pre-Operation Check
3. PRE-OPERATION CHECK • Pre-operation checks should be made each time the generator is used. CHECK ENGINE FUEL • Make sure there is sufficient fuel in the tank. • If fuel is low, refill with unleaded automotive gasoline. • Be sure to use the fuel filter screen on the fuel filter neck. -
Page 8: Operation
4. OPERATION NOTE • The generator has been shipped without engine oil. Fill with oil or it will not start. • Do not tilt the generator when adding engine oil. This could result in overfilling and damage the engine. STARTING THE ENGINE NOTE •... - Page 9 USING ELECTRIC POWER 1. AC APPLICATION CHOKE a. Check the AC pilot lamp for proper voltage. b. Turn off the switch(es) of the electrical appliance(s) before connecting to the generator. c. Insert the plug(s) of the electrical appliance(s) into the receptacle. CAUTION •...
- Page 10 STOPPING THE ENGINE 1. Turn off the power switch of the electrical apparatus and switch the circuit breaker to the OFF position. 2. Turn the engine switch to the STOP position. 3. Turn the fuel petcock lever to OFF.
-
Page 11: Periodic Maintenance
5. PERIODIC MAINTENANCE MAINTENANCE CHART PRE-OPERATION INITIAL EVERY EVERY EVERY ITEM REMARKS CHECK 1 MONTHS 3 MONTHS 6 MONTHS 12 MONTHS (DAILY) OR 20 HR OR 50HR OR 100HR OR 300HR Check condition adjust gap and Spark Plug clean. Replace if necessary. - Page 12 ENGINE OIL REPLACEMENT 1. Place the generator on a level surface and warm up the engine for several minutes. Stop the engine and turn the fuel petcock knob to the OFF position. Turn the fuel tank cap air vent knob counterclockwise to the CLOSED position.
- Page 13 CLEANING AND ADJUSTING THE SPARK PLUG 1. Remove the spark plug 2. Check for discoloration and remove any carbon buildup. 3. Check the spark plug type and gap. 4. Install the spark plug. 5. Install the cover. CAUTION • Standard electrode color: Tan Color. •...
-
Page 14: Troubleshooting
6. TROUBLESHOOTING ENGINE WON’T START 1. Fuel systems No fuel supplied to combustion chamber. • No fuel in tank: Supply fuel. • Fuel in tank: Fuel cock knob to ON. • Clogged fuel line: Clean fuel line. • Clogged carburetor: Clean carburetor. -
Page 15: Storage
7. STORAGE Long term storage of your machine will require some preventive procedures to guard against deterioration. DRAIN THE FUEL 1. Remove the fuel tank cap, drain the fuel from the fuel tank 2. Drain fuel from the carburetor by loosening the drain screw. ENGINE 1. -
Page 16: Specifications
8. SPECIFICATIONS MODEL 3500iO Type Inverter Generator AC Voltage 240V Frequency 50Hz Max. Output 3.3 kW Rated Output 3.0 kW Power Factor Model XY170F-2 Type Air-cooled, 4 cycle, OHV, Gasoline Engine Bore×Stroke mm×mm 70×54 Displacement 208 cc Max. Output 4.0KW / 3800rpm... -
Page 17: Wiring Diagram
9. WIRING DIAGRAM 3500iO (240V) -
Page 18: Warranty Card
24 MONTH LIMITED WARRANTY WARRANTY PERIOD: Full 24 month warranty from date of purchase against all manufacturing defects. WHAT DOES THE WARRANTY COVER? Under normal usage conditions, this warranty covers: a. Any defect in design or manufacture which results in the product failing to perform substantially as described in authorised advertising or literature.
