Beam Platinum Series User Manual

Central vacuum system
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL
Central Vacuum System
EN
DOC-703-INTBM REV01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Platinum Series and is the answer not in the manual?

Questions and answers

Related Manuals for Beam Platinum Series

Summary of Contents for Beam Platinum Series

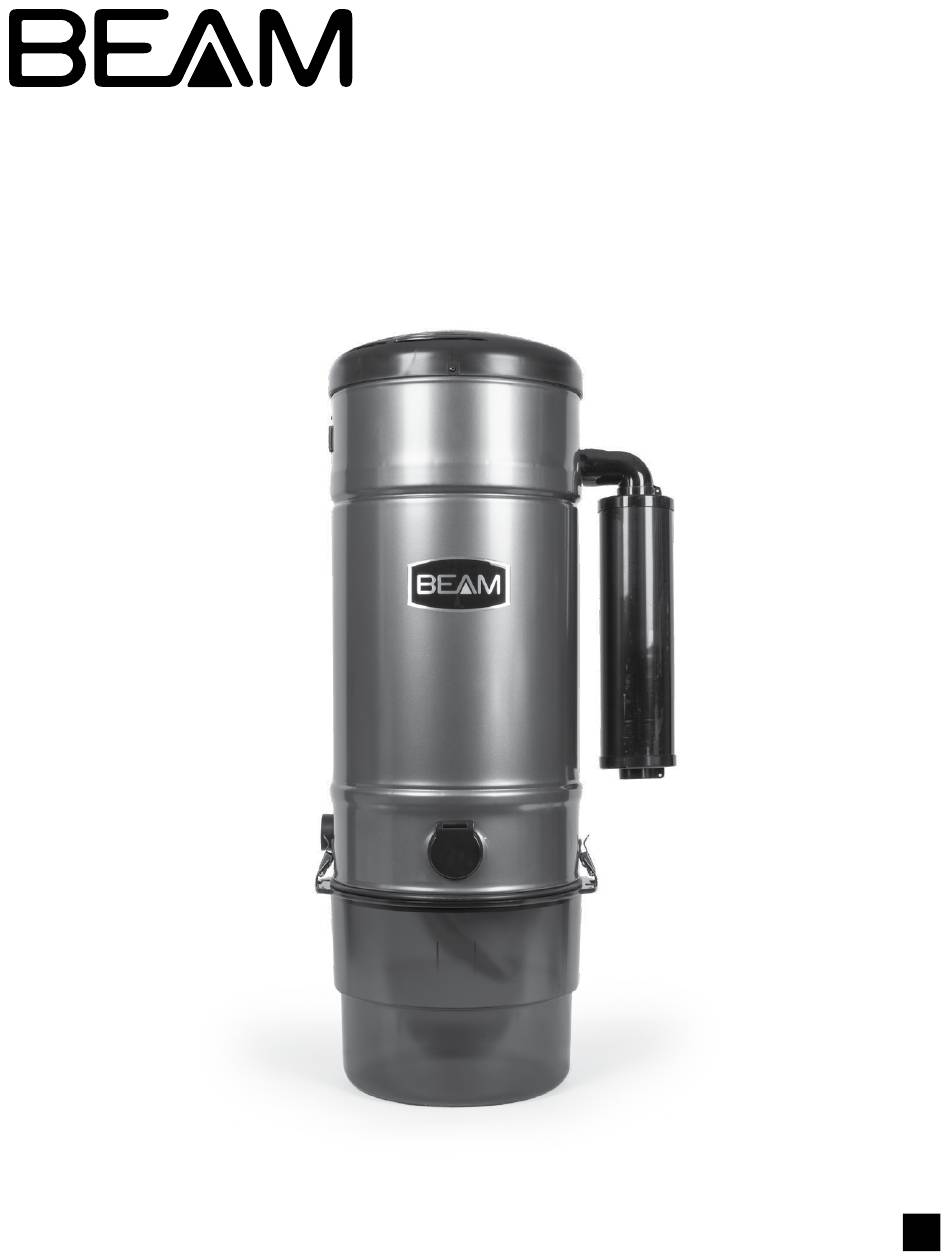

  • Page 1 USER MANUAL Central Vacuum System DOC-703-INTBM REV01...

  • Page 2: Table Of Contents

    TABLE OF CONTENT INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 IMPORTANT SAFEGUARDS .

  • Page 3: Introduction

    . It has been clinically proven to relieve allergy symptoms . To obtain the maximum benefit from your BEAM System, please read this manual carefully prior to use . Then enjoy cleaner, healthier living and years of trouble-free performance .

  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS When using an electronic appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM SYSTEM. To reduce the risk of fire, electric shock or injury: • Do not use outdoors or on wet surfaces . •...

  • Page 5: Grounding Instructions - Warning

    GROUNDING INSTRUCTIONS - WARNING WARNING This appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of least resistance Grounded Pin for the electric current to reduce the risk of electric shock . Bucket This appliance is equipped with a cord having an equipment grounding conductor and ground plug .

  • Page 6: Installation

    INSTALLATION Planning If your home already has the system of plastic pipes and inlet valves, you are ready to install the power unit (refer to Install Power Unit section below) . If not, you can contract to have the system installed by a professional or you may choose to do-it-yourself .

  • Page 7: How To Use

    HOW TO USE Locate the two low-voltage wires near the main pipe . Remove the insulation from the low-volt wire . Insert the low-volt wire into the spring-loaded low-volt connectors (refer to figure 2) . Be certain you comply with your local electrical codes and regulations .

  • Page 8: Lcd Instruction

    LCD INSTRUCTION MAIN SCREEN The main screen is shown when the system is connected to an electrical outlet . This is the view most often displayed . On this screen you see the time, temperature and system performance . At the bottom of the screen you see from left to right, the power (o) icon, the left () and right () toggle arrow icons and the Power Button Toggle Buttons...
  • Page 9 LCD INSTRUCTION SYSTEM CHECKS The system checks menu provides the ability to monitor overall system . Specific areas monitored are the Empty Dirt Receptacle, Airflow Level, Motor and Electrical System, and Service Indicator . The happy face indicates that each monitored aspect of the power unit is optimally performing .
  • Page 10 (see “Trouble Shooting” section of the Power Unit Owner’s Manual) 3) Motor Wear (contact an authorized Beam service technician) The most common cause is a loaded filter, and the system performance can be restored by cleaning the filter . Alternatively, there may be a system blockage, and the hose and piping system needs to be checked for blockage .
  • Page 11 In the event that the system is unable to automatically reset, the display will switch to the Phone Icon with a Sad Face screen, indicating the need to contact a Beam dealer for service . This indicates a motor failure, where service is needed .

  • Page 12: Maintenance

    . Filter Maintenance BEAM’s exclusive filter is permanent and self-cleaning . However, if cleaning is desired, follow the steps listed below: NOTE: Do not operate this unit without the filter in place .

  • Page 13: Troubleshooting

    . If neither method is successful, call your authorized BEAM dealer/distributor . 3 . Have your authorized BEAM dealer/distributor check the gasket under the motor and the gasket located where the dirt receptacle attaches to the upper cylinder .

  • Page 14: Service Information

    SERVICE INFORMATION The instructions in this booklet serve as a guide for routine operation and maintenance . For more information, contact your local authorized dealer/distributor . Service Warranty Warranty service is managed by your local authorized dealer/distributor . For additional product information visit beamvac.com Sold and serviced by: 2020 .
