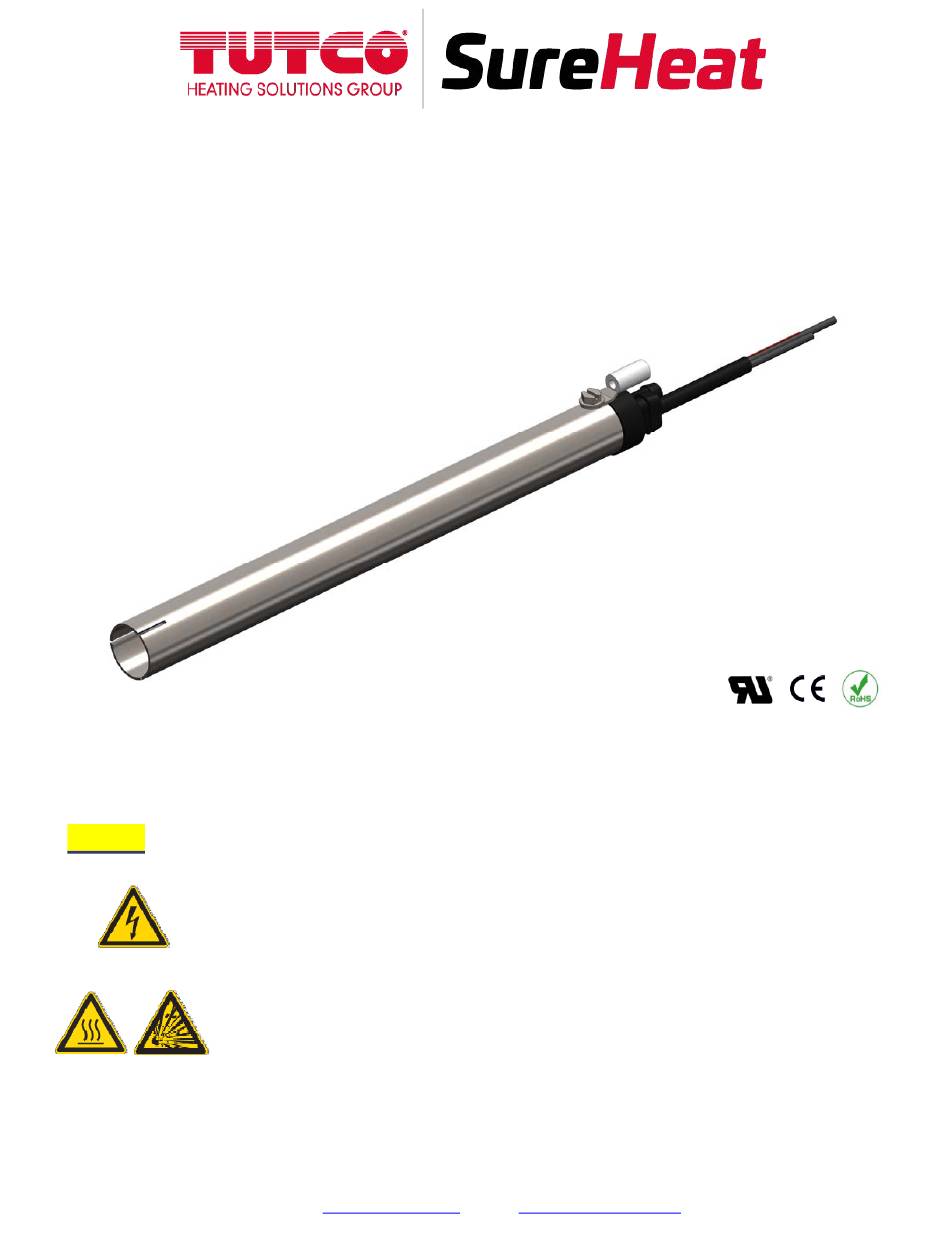

Hot Air Tool Air Heaters
FOR SAFETY & LONG HEATER LIFE, CAREFULLY READ THIS MANUAL BEFORE USE.
Safety
SHOCK HAZARD!
Only qualified individuals should install this heater and related controls.
Follow all applicable electrical codes and use proper wiring.
BURN/FIRE/EXPLOSION HAZARD!
Do not use in hazardous environments, and/or near explosive or reactive gases, or
combustible materials. Avoid contact with the heater or exit accessories during or soon
after operation. DO NOT USE NEAR VOLATILE OR COMBUSTIBLE MATERIALS.
J
K:
800-258-8290 / 603-418-7648
603-772-1072
Website:
www.tutcosureheat.com
E-mail:
support@tutcosureheat.com
Advertisement
Table of Contents
Summary of Contents for Tutco SureHeat F068462
- Page 1 Hot Air Tool Air Heaters FOR SAFETY & LONG HEATER LIFE, CAREFULLY READ THIS MANUAL BEFORE USE. Safety SHOCK HAZARD! Only qualified individuals should install this heater and related controls. Follow all applicable electrical codes and use proper wiring. BURN/FIRE/EXPLOSION HAZARD! Do not use in hazardous environments, and/or near explosive or reactive gases, or combustible materials.
-
Page 2: Limited Warranty
Tutco SureHeat, or which shall have been subjected. Tutco SureHeat shall be liable under this warranty only if (A) Tutco SureHeat receives notice of the alleged defect within sixty (60) days after the date of shipment; (B) the adjustment procedure hereinafter provided is followed, and (C) such products are, to Tutco SureHeat’s satisfaction, determined to be defective. -
Page 3: Specifications
Heater Models and Parts List Part Maximum Maximum Maximum Minimum Flow Number Wattage Volts Amperage SCFH (SLPM) F068462 1500 F068463 2000 F068464 3500 60 (28) F070878 2000 F071383 3500 F075145 3500 Specifications Maximum Inlet Pressure 60 PSI (4 BAR) Minimum Inlet Pressure 0.3 PSI (20mBAR) - Page 4 Dimensions/Mounting NOTE: The inlet side of the heater is located where the electrical leads and thermocouple wires come out of the housing. Failure to install the heater in its proper orientation can result in heater damage and is not covered under the manufacturer’s warranty.
-
Page 5: Installation
Installation Securely mount the heater before wiring. WARNING: THE INLET AIR/GAS SIDE OF THE HEATER IS LOCATED CLOSEST TO WHERE THE POWER LEAD CONNECTIONS ARE MADE. INSTALLING THE HEATER IN THE WRONG ORIENTATION WILL DAMAGE THE HEATER AND CAN CREATE ADDITIONAL HAZARDS AS A RESULT. 1. -
Page 6: Performance Curves
Operation (with Heater) START-UP 1. Reference the Performance Curves section for operational parameters before attempting to (see page 6) operate heater(s). 2. Turn on air and set pressure or flow to desired operating level. 3. If using a closed loop system, turn on power to the temperature and power controller, then set the desired temperature on the temperature controller. - Page 8 Troubleshooting and Replacing Heaters 1. Note that “TYPICAL” Element Life is APPROXIMATELY 5000 hours. This is based on heater element operating at or below temperatures shown on PERFORMANCE CURVE. In addition to normal end of life, elements can fail due to mechanical damage, or problems with the control system. 2.
- Page 9 (This is published by the element wire manufacturer. It is considered typically and not a guarantee on heater life) The typical life of an Tutco SureHeat Hot Air Tool is directly based on the temperature of the filament wire. The curve below shows that 5000 hours of life can be obtained by maintaining a filament temperature below 1900°F.
- Page 10 The technical data and specifications supplied in this operating manual are subject to change without prior notice. Contact Tutco SureHeat for additional assistance. Tutco SureHeat • 22 Industrial Drive • Exeter, NH 03833 USA 800-258-8290 / 603-418-7648 603-772-1072 Website: www.tutcosureheat.com E-mail: support@tutcosureheat.com...
