In-situ TROLL Instruction Sheet

®

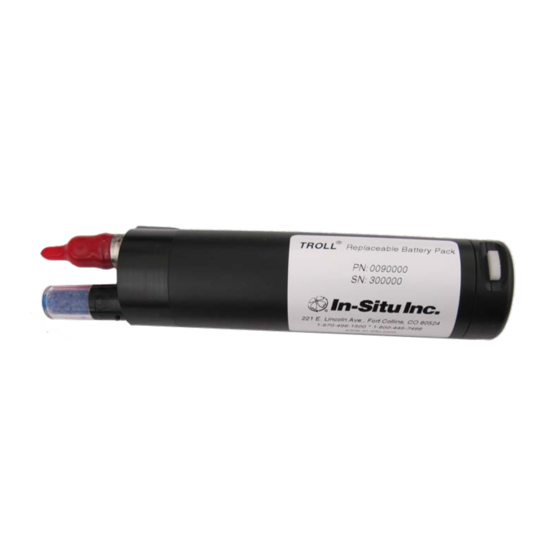

TROLL Replaceable Battery Pack
Part number 0090000
Kit Contents
TROLL Replaceable Battery Pack
l
1.5 V or equivalent AA size batteries (8)
l
Small desiccant (for shipping use only)
l
Available Connections
The TROLL Replaceable Battery Pack connects to the following components.
The twist-lock connectors on a RuggedCable System
l
TROLL Com Communication Devices
l
Small desiccant (for shipping use only), large desiccant
l
pack, extra large desiccant pack (for instrument
deployment)
Application
The TROLL Replaceable Battery Pack supplements internal battery power for
an Aqua TROLL 100, 200, or Level TROLL 400, 500, or 700. The battery pack
extends the life of a TROLL device when used properly. The battery pack is
particularly suited for long-term or limited-access deployments, and for
applications that require frequent, fast data sampling.
Physical Characteristics
Materials
Dimensions
Weight
Information subject to change without notice. In-Situ, In-Situ logo, Baro Merge, BaroTROLL, HERMIT, HydroVu™, iSitu, Pocket-Situ, RDO, RuggedCable,
RuggedReader, SmarTROLL™, TROLL, VuSitu, and Win-Situ are trademarks or registered trademarks of In-Situ Inc. © 2015. All rights reserved.
®
Titanium, Viton , Acetal
17.8 cm (7.0 in.) length, 4.3 cm
(1.7 in.) OD
0.43 kg (0.95 lb) without
batteries installed
Instruction Sheet
Alkaline battery
temperature range
Lithium battery
temperature range
Environmental rating
Battery type
Estimated
battery lifetime*
* Logging all available parameters at 15-minute intervals.
Battery lifetime is dependent on temperature and site
conditions.
Guidelines and Precautions
Do not use with any instrument other than an Aqua
l
TROLL 100 or 200, or Level TROLL 400, 500, or 700.
The battery pack is vented, and therefore must be
l
desiccated even if the rest of the deployment is non-
vented.
Do not submerge the battery pack.
l
The battery pack will not function if the batteries are
l
installed incorrectly.
Do not mix lithium and alkaline batteries.
l
For best performance in all environmental conditions,
l
®
use Energizer L91 lithium batteries or equivalent.
Energizer E91 alkaline batteries should not be used at
l
very low or very high temperatures.
Do not apply additional external power to a TROLL Com
l
device when the battery pack is connected.
Do not install an instrument directly into the female
l
connection port of the battery pack, as shown below.
Instruments must be connected using only a
RuggedCable that connects to the male connection port
of the battery pack.
-5 to 55° C (23° to 131° F)
-40 to 60° C (-40 to 140° F)
IP67 (not submersible)
1.5 V or equivalent AA size
Aqua TROLL 100/200 - 5.4
years
Level TROLL family - 1.4 years
02/2016 | Rev. 005 | 0090002
