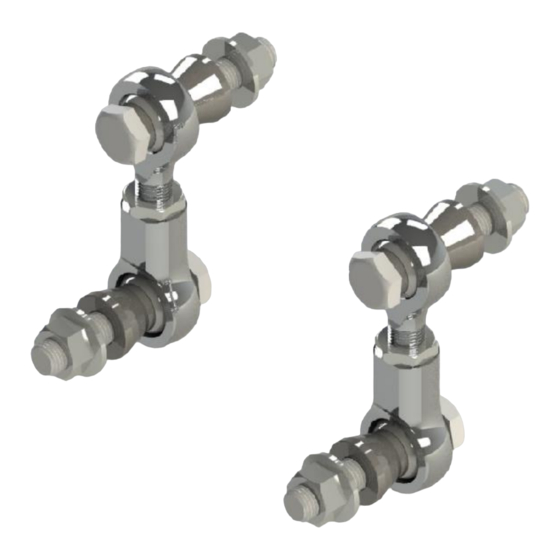

Summary of Contents for VooDoo ADEL-0200

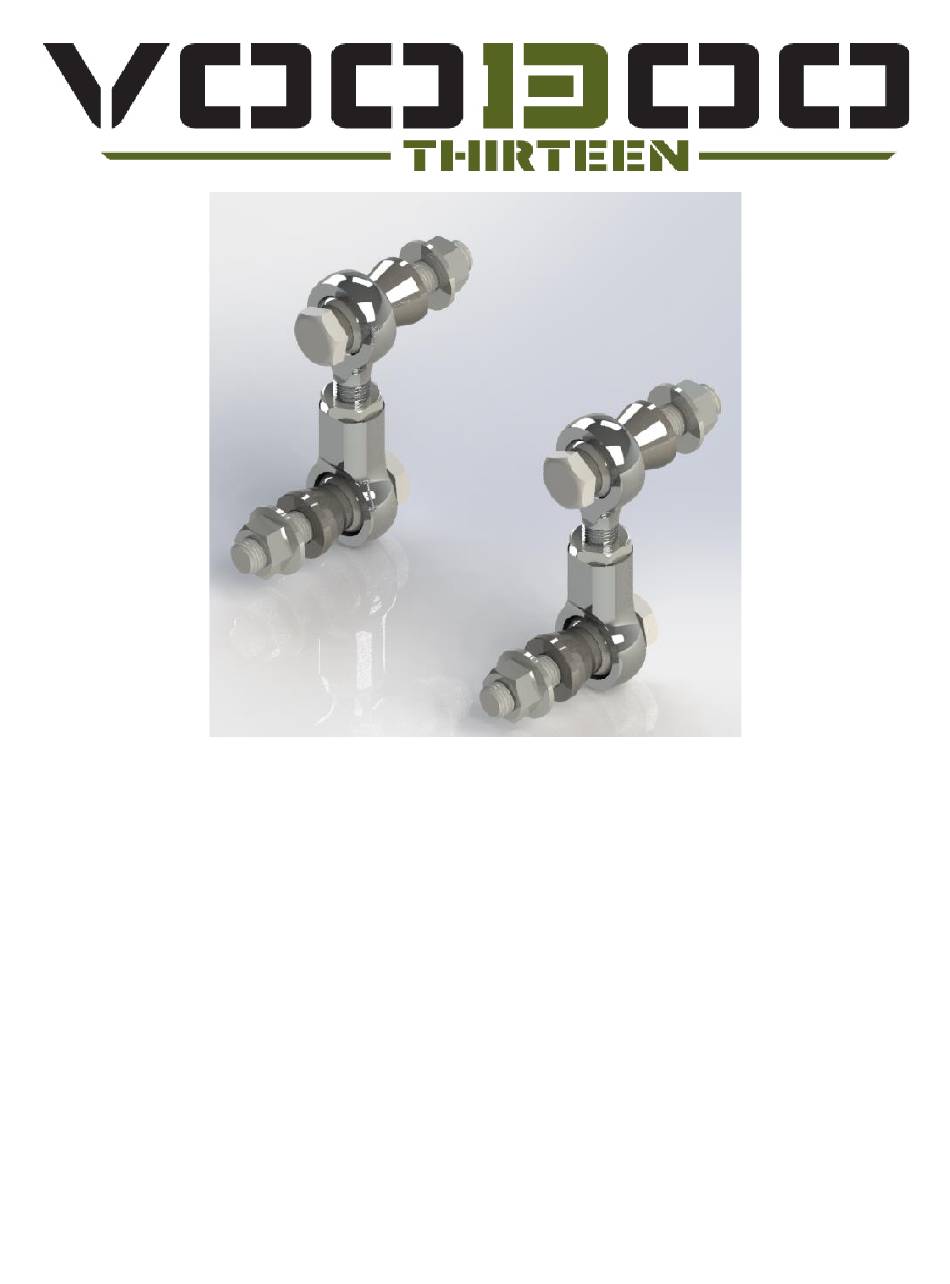

- Page 1 SUBARU front ADJUSTABLE sway bar END LINKs INSTALLATION INSTRUCTIONs: 13-17 Crosstrek 14-18 forester 10-14 outback 15-20 sti/wrx 06-14 triebca...
- Page 2 It is recommended the installation of all Voodoo13 parts be completed by an experienced suspension tuning professional. With proper installation and maintenance, Voodoo-13 suspension products will provide exceptional performance and durability. For any questions, please contact Voodoo 13 immediately. Thank you for choosing Voodoo-13 for your suspension component needs! NEED HELP? Representatives are here to help with any questions concerning the operation of this product.
- Page 3 INSTALLATION PROCEDURE Step 1: Lift the vehicle to a safe height using the recommended factory lift points to work underneath the front suspension. Ensure placement of safety jack stands where recommended by the manufacturer's service manual before working underneath the vehicle (unless using a vehicle lift with safety locks).
- Page 4 NOTE: With the Voodoo13 end links installed and the vehicle resting on a flat surface, the sway bar preload can be adjusted Step 6: Once the desired lengths of the Voodoo13 end links are established, tighten the (4) jams nuts against the heim joints on both sides of the end link. Properly torque the jams nuts to 30 lbf-ft using torque wrench.
- Page 5 WARNING High performance parts. For off-road use only. Installation should be carried out by a qualified facility. Improper use or installation may result in injury or death. VOODOO13 254 W Broadway Rd Mesa, AZ 85210 Ph: 480.889.0812 Fax: 480.829.8103 www.VOODOO13USA.com...
