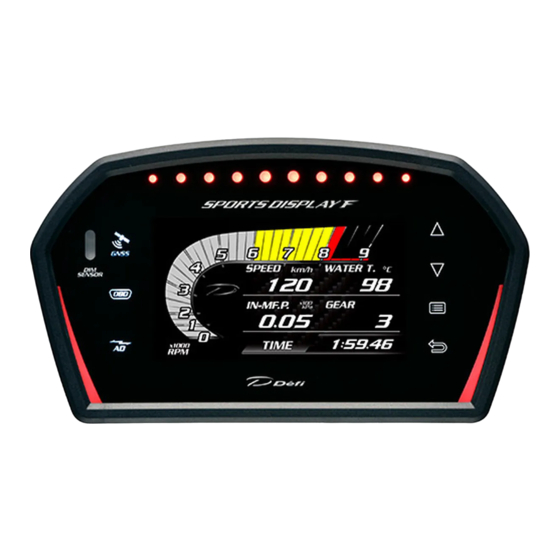

Defi Sports Display F (DSDF) Update Ver. 4.0 Manual
１．Generic Dash CAN data can be transmitted to DSDF by using ISO-CAN ports of a
vehicle OBD connector.
DSDF becomes able to display Generic Dash CAN information from LINK ECU. ISO-CAN
information cannot be received while connecting Generic Dash CAN.
Display items of Generic Dash CAN can be selected in page 3 (OBD) and page 4 (OBD (Only
Generic Dash) ). 12 items can be selected from Generic Dash CAN: TACHO, TURBO/IN-MF. PRESS,
THROTTLE, IN-AIR TEMP, VOLT, GEAR, WATER TEMP, A/F1, A/F2, OIL PRESS, FUEL PRESS, and OIL

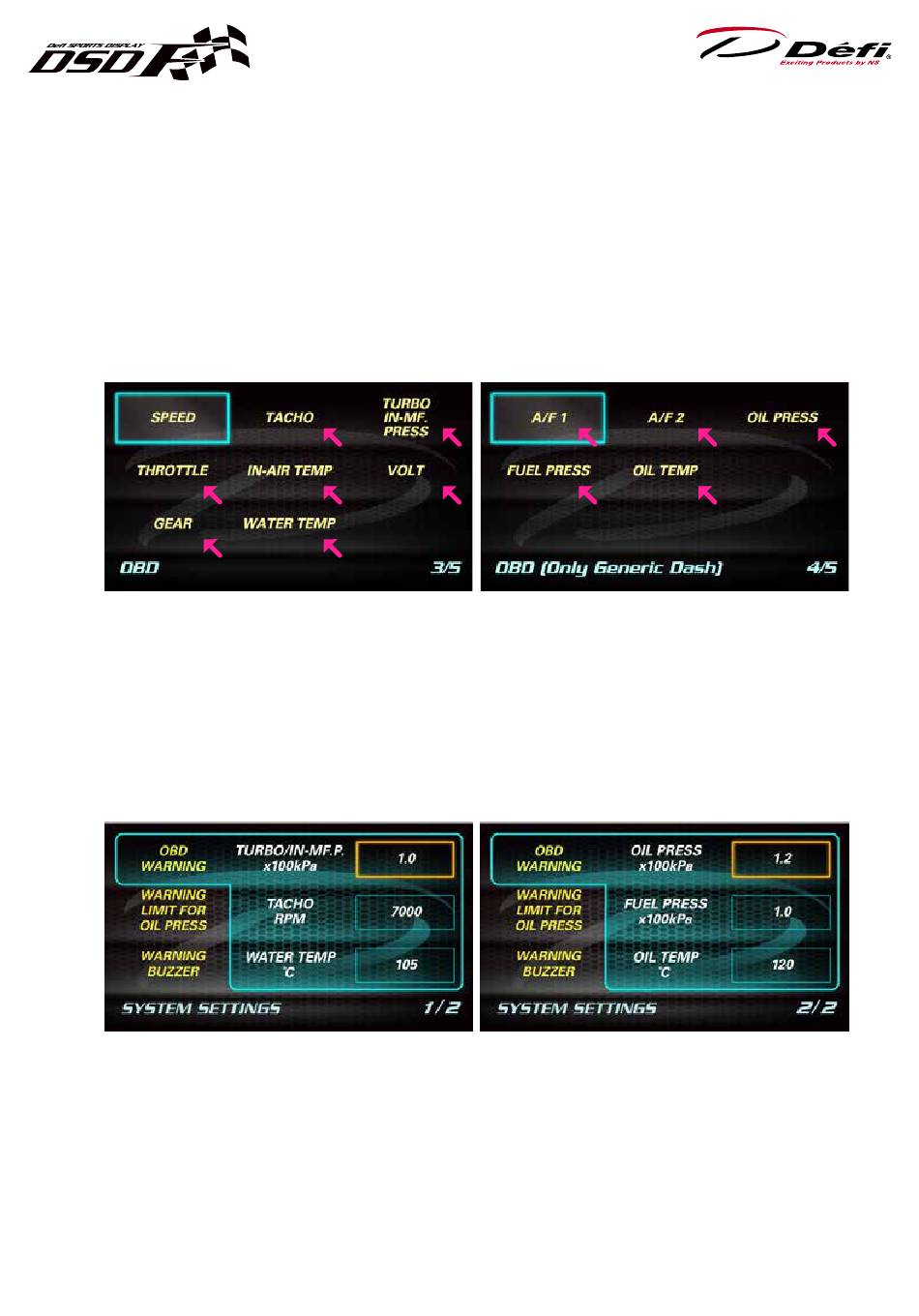

TEMP as shown in the following images.
【Warning setting】
Warning values can be set in OBD WARNING at SYSTEM SETTINGS. Warning settings for 6 items
are available: TURBO/IN-MF. PRESS, TACHO, WATER TEMP, OIL PRESS, FUEL PRESS, and OIL TEMP.
The warning function for OIL PRESS and FUEL PRESS can be turned off by lowering the set value
to the lower limit.
【Warm-up setting】
The warm-up function for WATER TEMP and OIL TEMP can be turned off by lowering the set
value to the lower limit.
