DURO FAUX STONE BASE
MODEL: 780-0644A
(Special designed for Duro Gas Grill 740-3003BI)
Installation and User Care Guide
IMPORTANT:
Save for electrical inspector's use.
Installer: Leave installation instructions with the homeowner.
Homeowner: Keep installation instructions for future reference.
For questions about operation, parts, accessories, and services, please call: (888) 909-8818
Advertisement
Table of Contents
Summary of Contents for Duro FAUX STONE BASE 780-0644A

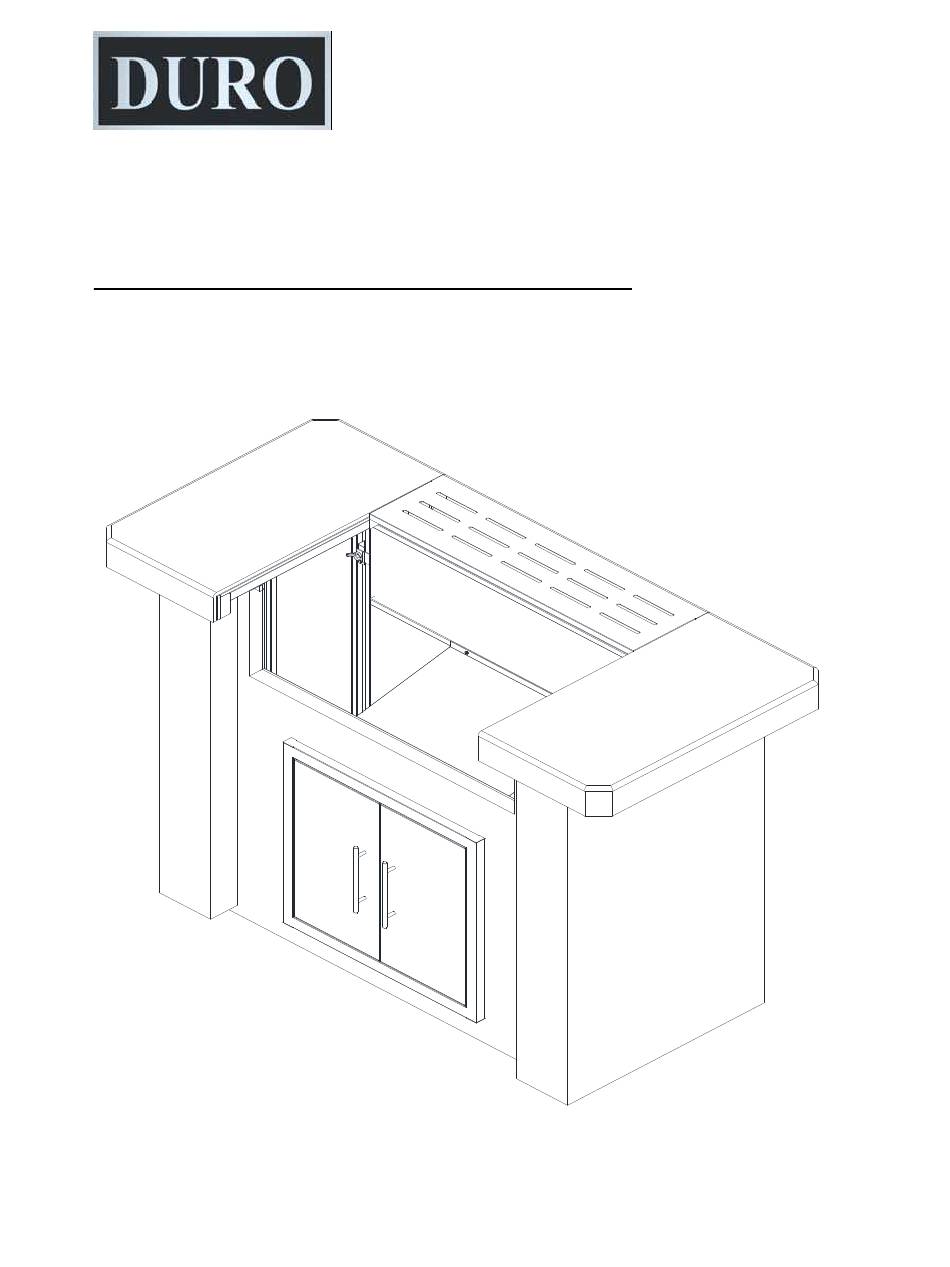

- Page 1 ® DURO FAUX STONE BASE MODEL: 780-0644A (Special designed for Duro Gas Grill 740-3003BI) Installation and User Care Guide IMPORTANT: Save for electrical inspector’s use. Installer: Leave installation instructions with the homeowner. Homeowner: Keep installation instructions for future reference. For questions about operation, parts, accessories, and services, please call: (888) 909-8818...
-
Page 2: Explode View
Explode View... -
Page 3: Part List
Part List Left counter top X1 1/4”- 20 screws X4 Rear Deco board X1 5/32”- 10 screw X6 Right counter top X1 Gas tank heat shield Left and right base Rear base panel X1 panel X2 5/16”- 20 Butter fly Front base panel... - Page 4 Installation of the base Step 1 Install the Left and right base panel to the rear base panel by hand turning in the butter fly shape screws.(Notice: Left and Right Base panel is the same, can replace each other.) 5/16”-20 2pcs Butterfly shape Screw...
- Page 5 Step 2 Install the front panel by hand turning in the butter fly shape screws. 5/16”-20 Butterfly 4pcs shape Screw...
- Page 6 Step 3 Install the gas tank tray by hand turning in the butter fly shape screws. 5/16”- 45 Butter fly 2pcs shape screw...
- Page 7 Step 4 Install the gas tank heat shield and door handle by Phillips screwdriver. 5/32”-10 For the gas tank heat shield (pre-installed 2pcs screw in the front panel) 5/32” door 4pcs For the door handle handle screw...
- Page 8 Step 5 Install the left and right side porcelain tile counter top by Phillips screwdriver. Warming: The counter top is heavy and requires at least 2 people to install it, 1 holding it on the base and the other tighten the screw by the screw driver. 1/4”-20 For left and right counter top 4pcs...
- Page 9 Step 6 Install the Rear Deco plate between the two counter tops. Notice: Just put on the Rear Deco plate and tighten the screws by Phillips screwdriver, the screws are pre-installed on the counter tops. 5/32”-10 4pcs Pre-installed on the counter top screw...
- Page 10 The finished looking of the FAUX STONE BASE! Put on the build in grill ( DURO MODEL NO.: 740-3003BI) The build in grill is not included, please purchase separately.
-
Page 11: Limited Warranty
LIMITED WARRANTY DURO warrants to the original consumer-purchaser only that this product (Model #780-0644A) shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase. The manufacturer reserves the right to require photographic evidence of damage, or that defective parts be returned, postage and or freight pre-paid by the consumer, for review and examination. - Page 12 You may also have other rights which vary from state to state. If you wish to obtain performance of any obligation under this limited warranty, you should write to: DURO CORPORATION 17018 Evergreen place, City of Industry ，...
