Thank you for choosing Air Conditioners, please read this owner's manual carefully before operation and
retain it for future reference.If you have lost the Owner's Manual, please contact the local agent or visit
www.c ooperandhunter .com.
C ooper&Hunter reserves the right to interpret this manual which will be subject to any change due to
product improvement without further notice.
C ooper&Hunter , Inc. reserves the final right to interpret this manual.

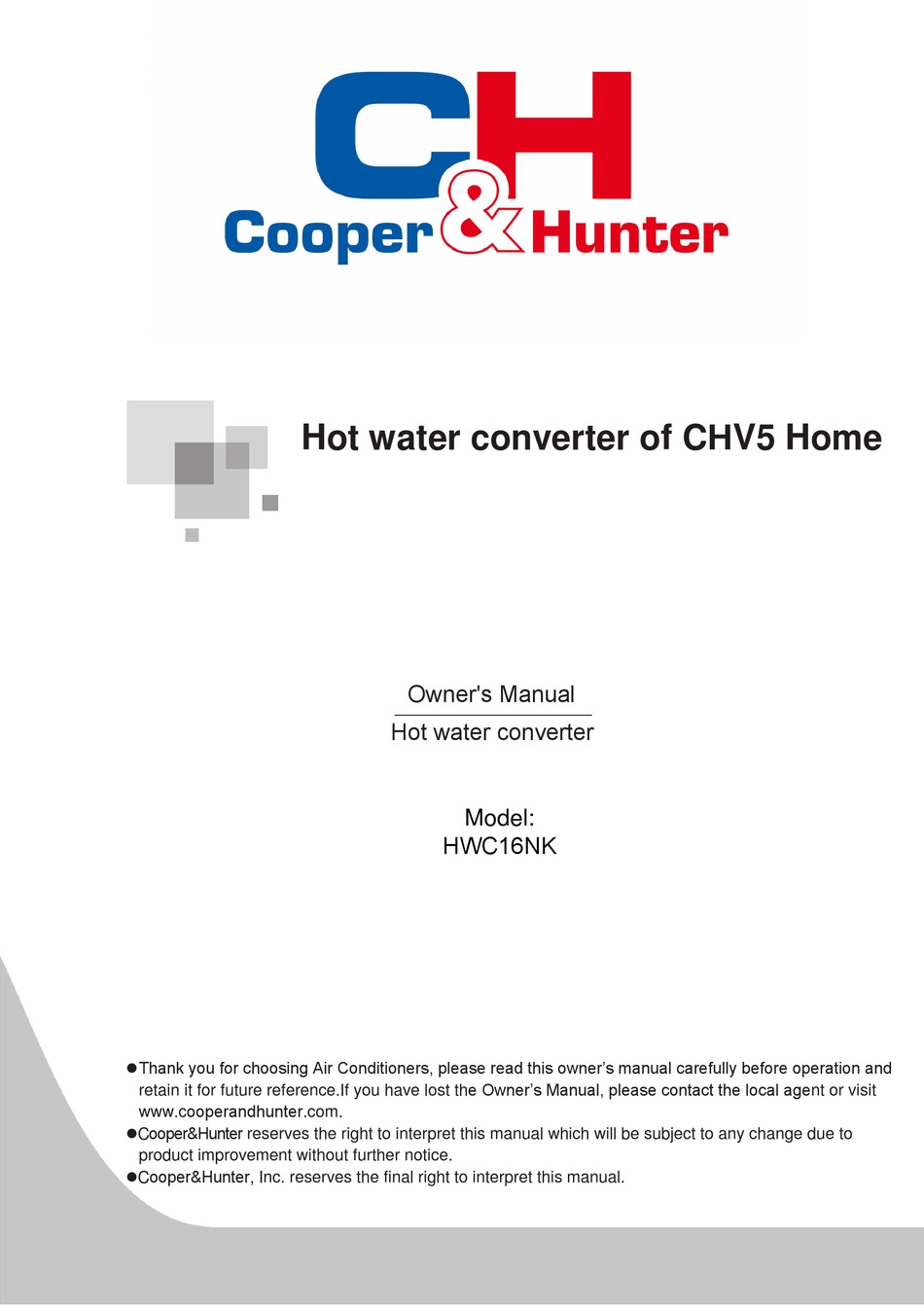

Hot water converter of CHV5 Home
Owner's Manual
Hot water converter
Model:
HWC16NK
Advertisement
Table of Contents
Summary of Contents for Cooper & Hunter CHV5 Home HWC16NK
- Page 1 Hot water converter of CHV5 Home Owner's Manual Hot water converter Model: HWC16NK Thank you for choosing Air Conditioners, please read this owner’s manual carefully before operation and retain it for future reference.If you have lost the Owner’s Manual, please contact the local agent or visit www.c ooperandhunter .com.
- Page 2 Preface Thank you for choosing C ooper&Hunter products. This is C H V5 HOME unit, which includes outdoor unit, hot water converter, water tank, multi VRF indoor unit and its related fittings. This unit possesses the following functions: cooling, heating, water heating, water heating under cooling mode, water heating under heating mode. This system has acquired the inventive patents of several countries.
-
Page 3: Table Of Contents
Contents 1 INTRODUCTION TO USERS .................. 1 2 SAFETY NOTICES ....................1 3 PRODUCT FEATURES ................... 2 4 STRUCTURE AND PERFORMANCE PARAMETER OF UNIT ....... 3 4.1 I ..........3 NTERNAL TRUCTURE OF ATER ONVERTER 4.2 I NTRODUCTION TO UTLINE IMENSION AND PPEARANCE OF ATER... -
Page 4: Introduction To Users
Hot water converter of CHV5 Home Installation and Operation Manual 1 Introduction to Users （1） Before conducting any maintenance and repair for the converter, please cut off the power first; the converter is not allowed to be adjusted or maintained by nonprofessional personnel. -
Page 5: Product Features
Hot water converter of CHV5 Home Installation and Operation Manual 3 Product Features （1） Energy-saving and Eco-friendly Heat the water with waste heat from the operation of air conditioner and affluent heat source in the air, the COP can be up to 7.0. In water heating under cooling mode, the heat recovery can be optimized and controlled, which is equal to heating the water for free. -
Page 6: Structure And Performance Parameter Of Unit
Hot water converter of CHV5 Home Installation and Operation Manual 4 Structure and Performance Parameter of Unit 4.1 Internal Structure of Hot Water Converter Hot water converter mainly consists of electric box sub-assy, magnet valve sub-assy, electric expansion valve sub-assy, electric controller, etc., and the internal structure is shown as below. Fig. -
Page 7: Model Selection For Odu, Hot Water Converter, Water Tank
Hot water converter of CHV5 Home Installation and Operation Manual 4.3 Model Selection for ODU, Hot Water Converter, Water Tank Hot Water Water Tank Type of ODU ODU Model Remarks Converter Model C H V- 5 S HH 120N K W T 200S W1.5EHK Side discharge Air conditioner +... - Page 8 Hot water converter of CHV5 Home Installation and Operation Manual Size of the air pipe and liquid pipe for hot water converter used for connecting to water tank isφ12.7/φ9.5; size of the air pipe and liquid pipe for water tank isφ9.5/φ6.4. When hot water converter connects to water tank, it requires connecting tube with size ofφ9.5 toφ12.7, andφ6.4 toφ9.5 (hot water converter has been equipped with connecting tube, the connecting tube should be installed in water tank side).
- Page 9 Hot water converter of CHV5 Home Installation and Operation Manual Fig. 5.2 Notes: ① Prepare materials according to the above dimension and specification of terminals. If the cut off valve is installed outdoors, it is recommended to use PPR pipe to avoid freezing. ②...
- Page 10 Hot water converter of CHV5 Home Installation and Operation Manual Notes: ① Conduct thermal insulation for refrigerant copper tube; in order to ensure the using effect, thickness of thermal insulating material should not be less than 8mm. ② Make sure that the refrigerant copper tube is sealed up without leakage. 5.1.5 Installation Requirements for Water System （1）...
- Page 11 Hot water converter of CHV5 Home Installation and Operation Manual Fig.5.4 Notes: After installation, distance from upper side of hot water converter to the ceiling or related obstacles should be over 60mm, and distance from left side of hot water converter to the left wall or related obstacles should be over 60mm.
- Page 12 Hot water converter of CHV5 Home Installation and Operation Manual Notes: ① Before the welding, use wet cloth to wrap the thermal insulating bushing; ② Put the baffle between the pipeline and the wall, use two magnets to fix on the case. When welding pipelines in the side face, the baffle should ward off the cable cross loop to prevent the fire from burning the wall and the cable cross loop during welding.
- Page 13 Hot water converter of CHV5 Home Installation and Operation Manual Fig. 5.7 Notes: In order to ensure water using safety, water inlet and outlet of thermal insulating water tank must adopt insulating pipeline (such as PPR plastic pipe); make sure that each section of pipe should not be less than the following length: L≥70×R2, L is the pipe length (Unit: cm), R is inside radius of pipe (Unit: cm).
- Page 14 Hot water converter of CHV5 Home Installation and Operation Manual Notes: ① Power cord of unit must be copper core cable, and working temperature should not be over its specified value. ② If the length of power cord is over 15 meters, please increase the sectional area of power cord accordingly to avoid overload.
-
Page 15: Debugging
Hot water converter of CHV5 Home Installation and Operation Manual Fig. 5.8 External wiring diagram between hot water converter and outdoor unit & water tank Note: Above wiring diagram is only for reference. Please refer to the circuit diagram in the electric box of unit for details. -
Page 16: Notices
Hot water converter of CHV5 Home Installation and Operation Manual 5.3 Notices （1） Do not put the unit at the place where will be frozen easily. Otherwise, container and water pipe will broke and it will cause scalding and water leaking. （2）... -
Page 17: Error Display
Hot water converter of CHV5 Home Installation and Operation Manual 6 ERROR DISPLAY When error occurs during system operation, the temperature display zone of the wired controller will show the error code, and show the error codes in cycle when there are several errors. -
Page 18: Troubleshooting
Hot water converter of CHV5 Home Installation and Operation Manual Note: The above circuit diagram is only for reference. Please refer to the wiring circuit inside the electric box for the detailed content. 8 Troubleshooting 8.1 Error code for hot water converter Display Display code Content...
