Summary of Contents for WorkHero D10LP

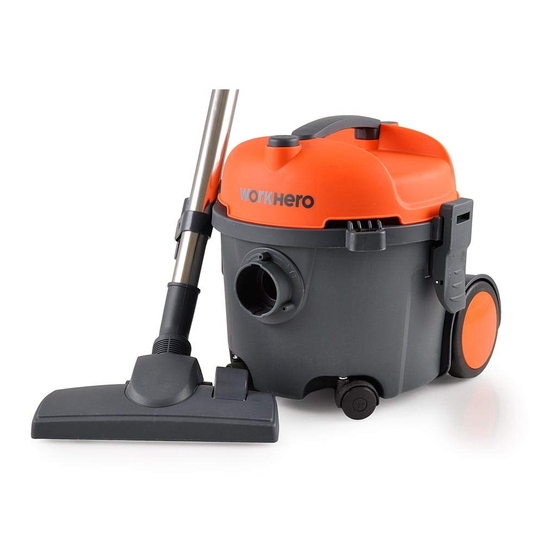

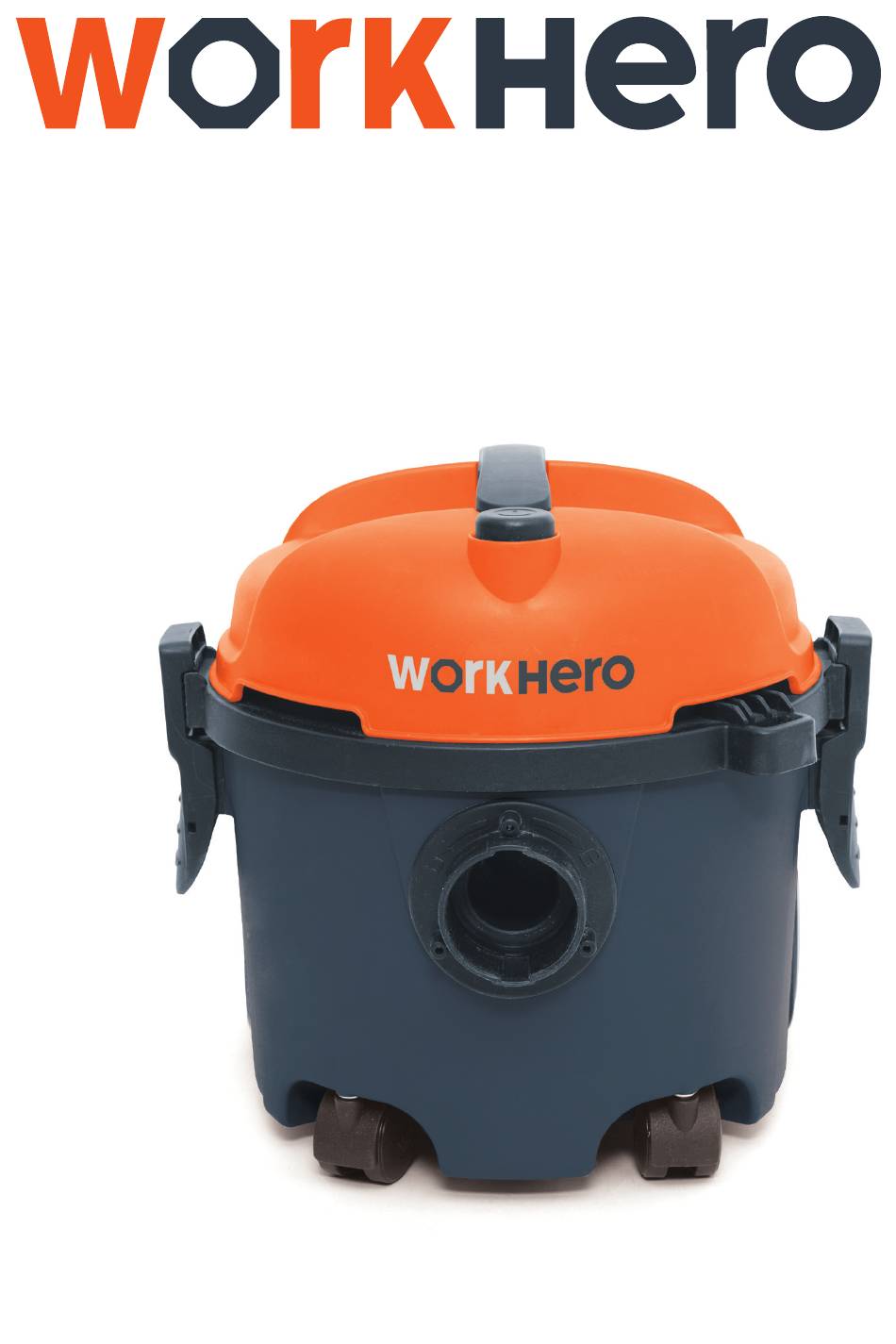

- Page 1 10L Dry Canister Ideal for: - Motels / Hotels - Restaurants / Cafes - Garages / Workshops - Schools D10LP...
-
Page 2: Precautionary Measures
IMPORTANT Always switch off the cleaner and remove the plug from the mains power supply before cleaning your appliance, when not in use or attempting any maintenance task. The cleaner must only be connected to an AC power supply at the voltage shown on the rating label. This cleaner should only be used for its intended purpose as described In this Instruction manual. - Page 3 Do not unplug by pulling on the power 18. If the air inlet, floor head or the cord. To unplug, grasp the plug not telescopic tube are blocked, switch off the power cord. Use only Australian the cleaner straight away and remove and New Zealand electrical safety from the mains power.
-
Page 4: Know Your Product
KNOW YOUR PRODUCT 1. Carry Handle 9. Connection Latches (Not Shown) 2. On/Off Switch 10. Power Cable/Cord Restraint (Not Shown) 3. Hose Inlet 11. Wheels 4. Cloth Filter (Not Shown) 12. Combination Floor Tool 5. Tank 13. 2-In-1 Cleaning Tool 6. -
Page 5: Assembly And Use
ASSEMBLY AND USE The cleaner should be switched off and disconnected from the mains power supply before you start to assemble. Connect the 3-piece metal tube together. Connect the handle to the tube. Connect the tube to the combination floor tool or the crevice tool/dusting brush. - Page 6 Disconnect latches on side of machine and remove the canister lid. Remove all accessories from inside the tank. Fit the wheel cover to the wheel base by pushing down. Fit the wheels to the base of the tank. Install the big wheels into the relevant positions and then fix with screws included.
- Page 7 Replace the canister lid (with the power cord facing the opposite direction of the hose inlet) and connect the latches. Insert the hose connector into the hose inlet and turn clockwise until it locks securely onto the machine. This machine is equipped with a short cable and plug and a cord restraint.
- Page 8 ACCESSORIES The combination floor tool is ideal for cleaning on carpets and hard floors. Carpet Hard Floors Fitting the 2-in-1 Cleaning Tool To fit the accessories to the tube, gently insert the tube into the top of the 2-in-1 Cleaning Tool. 2-in-1 Cleaning Tool Ideal for cleaning furniture, curtains and upholstery 8 WORK HERO 10L DRY CANISTER...
-
Page 9: Maintenance
MAINTENANCE ATTENTION: DISCONNECT FROM MAINS POWER SUPPLY BEFORE DOING ANY MAINTENANCE WORK. If proper care is taken to maintain your cleaner, motor maintenance is unnecessary. However we recommend that your cleaner is serviced once a year. Cleaning Filter and Tank Release the connection latches to unlock the lid from the base. -
Page 10: Spare Parts
SPARE PARTS For customer service or product enquiries please contact 1800 815 270 (AUS) or 0800 282 288 (NZ). Part Part Number Cloth Filter 33400184 Inlet Foam Filter 32200840 Hose Assembly with Handle 31220454 Rod 3pc Stainless Steel 31300568 Rear Wheel 33500394 Latch 33701753... -
Page 11: Troubleshooting
TROUBLESHOOTING Trouble Possible Cause Remedy Brush dirt from filter. If condition continues, Clogged Filter change filter. Suction weakens Check all fittings for tight fit (floor tool, hoses, Air Leak or cleaner runs hot etc.). Check that tank lid is sealed properly. Obstruction in Check floor tool, hose, etc. - Page 12 3 M NTH WARRANTY EXCLUSIVELY TO Your cleaner, in the case of domestic use, has a discretion of Electrical Home-Aids Pty Limited.. If three month parts and labour warranty against Electrical Home-Aids Pty Limited. decide to repair product defects and failures when the product is or replace the cleaner, it will do so at its own cost.
