Red Arrow Trading YD-318BSS Installation Instructions

Automatic High Speed Hand Dryer
Installation Instructions p.1
For models: YD-318BSS, YD-319BSS
This installation must be carried out by a qualified electrician.
Please read these instructions carefully before installation.
Leave a copy for the user/maintenance engineer for future reference.
Specification
• Hand Dryer
• Supply voltage 220V AC / 50Hz
• Wattage: 1800W
• Temperature of warm air 0°C±40°C.
• Air Speed 80m/s / 90m/s
• Air Speed 80m/s / 90m/s
• IP Rating: IPX1
• Sensing Distance 12cm±3cm
• Drying time:
• Finish Brushed Stainless Steel
Before Installation
• Not to be installed in areas of high humidity and moisture.
• The power must be isolated before maintenance.
• The machine must be installed a clean area indoors, please
use power: 220V-240V, 50/60Hz.
• Recommend to install R.C.D units.
• Do not dissassemble, repair or make any alterations to this
machine, this invalidates the guarantee & creates a risk of
electric shock, fire & other accidents.
• Ensure no other objects are within 400mm of the Hand
Dryer. Do not install near reflective surfaces as this can
cause false triggering.
• Ensure the unit is securely fixed to a smooth, level surface.
• Do not install the Hand Dryer near corrosive or flammable
gases / objects, this may cause fire or product failure.
• Do not install the Hand Dryer in a dusty environment or in
high temperature, this may cause damage to the product.
Red Arrow Trading
Elsworth House, Herries Road South,
Sheffield, S6 1QS
Installation Instructions

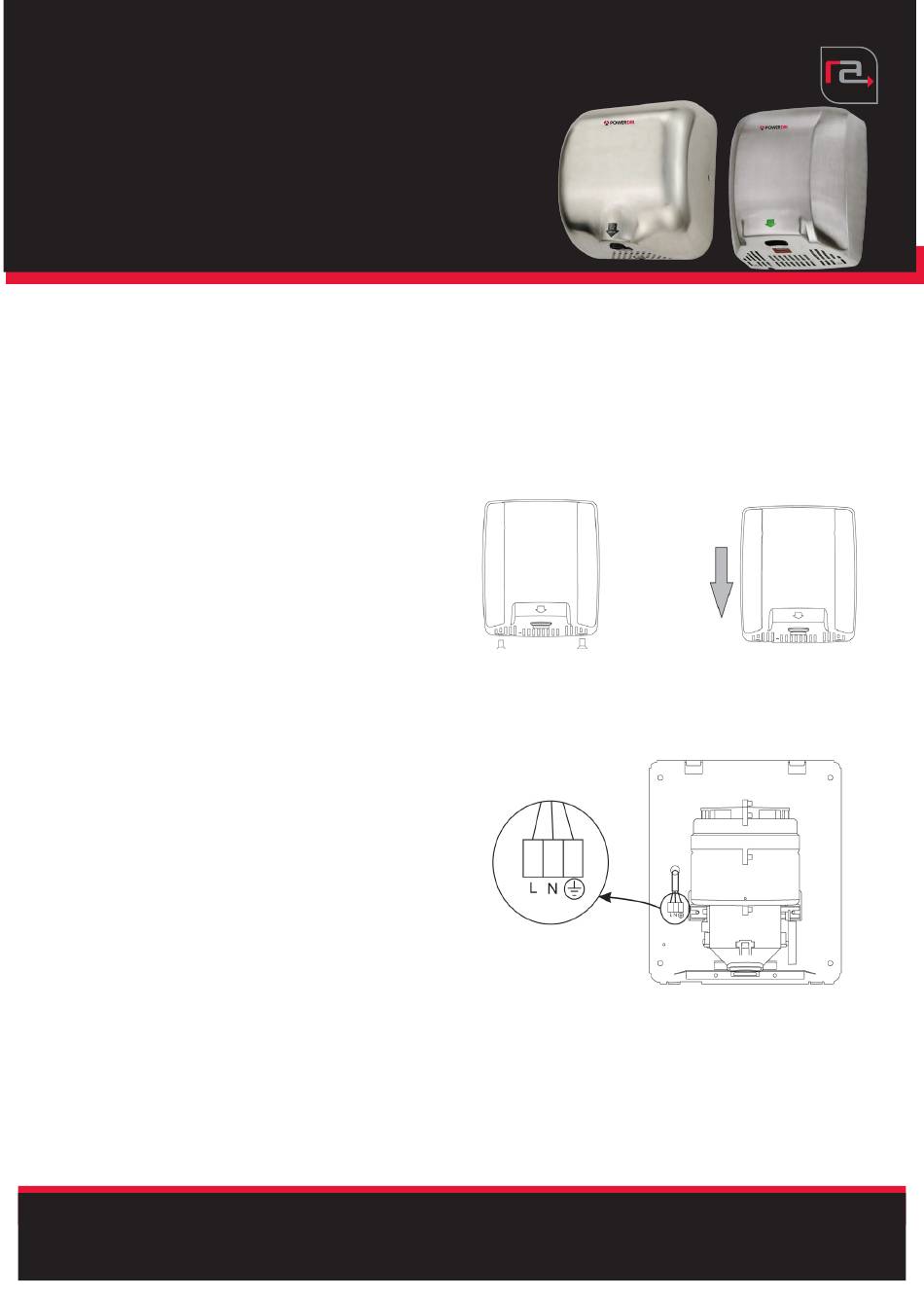

1. Take off the two screws on the bottom of the panel with the
hexagon wrench in the attachment, push down the panel and
take it off.
2. Pass the power line through the hole in the base, and put the
power line into the connector with a flathead screwdriver. See
below:
