Operating manual

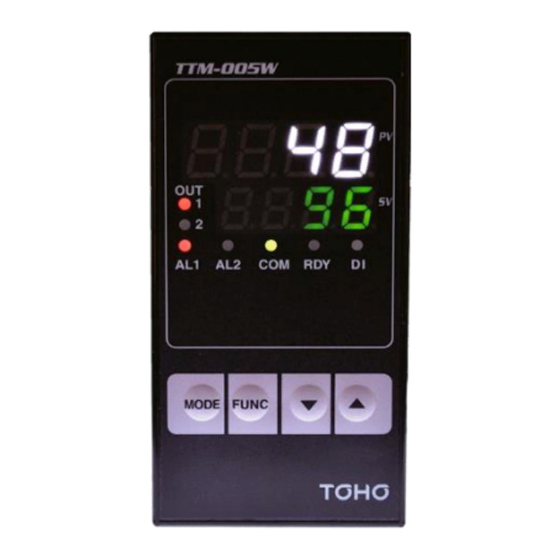

TTM-000W Series
EN
Temperature Controller
TTM-005W | TTM-009W | TTM-004W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Martens TTM-000W Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GHM Martens TTM-000W Series

  • Page 1 Operating manual TTM-000W Series Temperature Controller TTM-005W | TTM-009W | TTM-004W...

  • Page 2: Table Of Contents

    TTM-000W Series Inhalt Intended use (areas of application) ....................3 Safety signs and symbols ........................3 Safety instructions ..........................4 Product liability and warranty ......................4 Standards and directives ........................4 Product description .......................... 5 Scope of delivery ..........................5 Type plate ............................

  • Page 3: Intended Use (Areas Of Application)

    TTM-000W Series Intended use (areas of application) Refer to the chapter 'Product description' for detailed specifications for the area of application. The operational safety of the device is only assured when used as intended in accordance with the specifications in the oper- ating manual.

  • Page 4: Safety Instructions

    In addition, all claims are based on the valid 'Standard Terms for the Supply of Prod- ucts and Services of the Electrical Industry' GHM Messtechnik GmbH cannot inspect or repair any devices without the required form having been filled in completely.

  • Page 5: Product Description

    TTM-000W Series Product description The controllers of the TTM-00W series are available in three different designs (DIN-format), as well as in both input variants for temperature or normal singles. They are used to control temperatures and other process values. Up to 3 process outputs can be configured on the ordering code.. Depending on the design, the devices can be used for 2-point (on/off- or PID-control), 3-point control or continuous control.

  • Page 6: Assembly And Installation

    TTM-000W Series Assembly and installation Mechanical assembly Fig. 2: TTM000W dimensions Fig. 3: TTM000W cut-out, singe and side-by-side installation TTM004W (B × N-3) +0.6 +0.6 +0.6 TTM005W 76,5 (B × N-3) +0.6 +0.6 TTM009W (B × N-3) +0.6 +0.6 Table 2: Device dimensions and panel cut-out Fig.

  • Page 7: Electrical Installation

    TTM-000W Series Electrical installation An electrician may install the device, only. The national and international regulations for connection of electri- cal systems in the respective user country apply Danger TTM-004W (TTM-005W / TTM-009W) The auxiliary voltage is connected to the connections 4 and 5 (9 and 10) of the clamp bar. The clamps 13,14,15 (1, 2, 3) are used for the sensors connection.

  • Page 8: Key Operations

    TTM-000W Series Key Operations Operation Keys Description Mode Key Switches screens. (It memorizes configured parameters.) ・Executes functions that are being set. Function Key 1) Digit Navigation Key (selected digit blinks): Enabled in all modes. 2) AT Key: Enabled only at operation mode. Press once to activate. 3) RUN/READY Key: Enabled only at operation mode.

  • Page 9: Operation Flow

    TTM-000W Series Operation Flow Power ON When the power is turned ON, “Input Type Screen“ Display Initial Screen (4 seconds) will be displayed for 4 seconds before moving to “Operation Mode“ Operation Mode MODE pressed for more than 2 seconds Setting Mode Selection Screen MODE MODE...

  • Page 10: Operation Mode

    TTM-000W Series Operation Mode (Parameters 6.1 Operation Mode) Display of process value and set point as well as user parameters 1 to 9 according to assignment SET0 1200 1. Control Setting Input the temperature setting value (SV). ↓Mode Key ＊＊＊＊ 2.

  • Page 11: Set0 Priority Screen

    TTM-000W Series SET0 Priority Screen (Parameters 6.2 Priority Screen) Not visible with factory settings, see Blind Setting Mode for release. Up to 9 parameters can be as- signed to operating screen. 5ET 1. Setting Mode Selection Screen ↓Mode Key Pr11 2. Setting of Select the parameter with ▲▼keys If unnecessary select OFF.

  • Page 12: Set1 Initial Setting

    TTM-000W Series SET1 Initial Setting (Parameters 6.3 Initial Setting) 5ET 1. Setting Mode Selection Screen ↓Mode Key Input Sensor Selection Table/Setting Range Unit:℃ _1nP 2. Setting of Symbol* W/O Dec. Point W/ Decimal Point 00 Thermo-couple K -200 ～ 1372 -199.9 ～ 990.0 Input Type 01 Thermo-couple J -200 ～...

  • Page 13: Set2 Control

    TTM-000W Series SET2 Control (Parameters 6.4 Control) 5ET 1. Setting Mode Selection Screen ↓Mode Key _5lx 2. Setting of the Upper Limit of SV Limiter 1200 ↓Mode Key _5LL 3. Setting of the Lower Limit of SV Limiter ↓Mode Key _md 4.
  • Page 14 TTM-000W Series _mu2 20. Manipulated Variable of Output 2 *3 0. 0 Mode Key If Output 2 ON/OFF Control is selected _P2 21. Setting of the Proportional Band _C2 25. Setting of the Control Sensitivity 1. 0 0 of Output 2 *1 *3 of Output 2 *2 *3 ↓Mode Key ↓Mode Key...

  • Page 15: Set3 Event Output 1

    TTM-000W Series SET3 Event Output 1 (Parameters 6.5 Event Output 1/2) 5Et 1. Setting Mode Selection Screen ↓Mode Key _E1F 2. Setting of PV Event Output 1 Function ↓Mode Key _E1x 3. Setting of the Upper Limit of Event Output 1 *6 *7 ↓Mode Key _E1L 4.

  • Page 16: Set4 Event Output 2

    TTM-000W Series SET4 Event Output 2 (Parameters 6.5 Event Output 1/2) 5ET2 _Cnt Only visible if OUT 2 has been configured as alarm output ( 5Et 1. Setting Mode Selection Screen ↓Mode Key _E2F 2. Setting of PV Event Output 2 Function ↓Mode Key _E2x 3.

  • Page 17: Set5 Di Input

    TTM-000W Series SET5 DI Input (Parameters 6.6 DI Input) Only available in order option ME 5ET 1. Setting Mode Selection Screen ↓Mode Key _d1F 2. Setting of DI Input Function ↓Mode Key _d1P 3. Setting of DI Polarity ↓Mode Key _5u2 4.

  • Page 18: Set7 Timer

    TTM-000W Series SET7 Timer (Parameters 6.8 Timer) Factory-hidden, see Blind Setting Mode for release. 5Et 1. Setting Mode Selection Screen ↓Mode Key _tmo 2. Setting of Timer Output Destination ↓Mode Key _tmF 3. Setting of Timer Function *16 ↓Mode Key m 4.

  • Page 19: Parameters

    TTM-000W Series Parameters Operation Mode No. Character Name Description Initial Value Operation Mode Mode typically used by PV/SV Control Setting Setting Range: 5LL～ 5Lx ℃ (Thermocouple / Resistance Temperature Setting Unit: Detector Input Model) digit (Current & Voltage Input Model) Priority Screen 1 Displays the screen that is set at Priority Screen.

  • Page 20: Initial Setting

    TTM-000W Series Initial Setting No. Character Name Description Initial Value Setting Mode Selection Settings of the Input. Screen Initial Setting Mode _1nP _1nP Setting of Input Type ※※ Thermocouple/Resistance Temperature Detector model ※※ Input Type K Thermocouple J Thermocouple R Thermocouple T Thermocouple N Thermocouple S Thermocouple...
  • Page 21 TTM-000W Series No. Character Name Description Initial Value Function Key No function Digit Shifting Key Function Settings RUN/READY Key AT Key Start/Reset Timer _LOC Key Lock Settings Lock All Lock Operation Mode Lock All Modes Except for Operation Mode 21 / 37 BA_MA_TTM-00XW_EN_V1.00...

  • Page 22: Control

    TTM-000W Series Control No. Character Name Description Initial Value Setting Mode Selection Settings of the Control Constant. Screen Control Setting Mode _5LX Setting of the Maximum Thermocouple/Resistance Temperature Detector model Limit of SV Limiter Setting Range: Lower limit setting range-Upper limit setting range. 1200 Provided that its difference from the lower limit of the SV limiter is 50 digits or greater.
  • Page 23 TTM-000W Series No. Character Name Description Initial Value _d1r Switching of Direct Action / Reverse Action (heating) Reverse Action Direct Action (cooling) _mu1 0. 0 Manipulated Variable of It shall be used to monitor the manipulated variable of Output 1 Output 1 and to set the manipulated variable during manual control.
  • Page 24 TTM-000W Series No. Character Name Description Initial Value _mx1 100. 0 Setting of the Maximum Setting Range: Minimum Limit of the MV Limiter-100.0% (110.0%) Limit of MV Limiter ( ) is for current output model _mL1 0. 0 Setting of the Minimum Setting Range: 0.0%(-10.0%)-Maximum Limit of MV Limiter Limit of MV Limiter ( ) is for current output model...
  • Page 25 TTM-000W Series No. Character Name Description Initial Value _CP2 Setting of the OFF Point of Thermocouple / Resistance Temperature Detector Input Model Output 2 Setting Range: -199-999 or -199.9-999.9 Setting Unit: ℃ Current and Voltage Input Model Setting Range: -1999-9999 (Decimal point is at the designated position) Setting Unit: digit _Pbb...

  • Page 26: Event Output 1/2

    TTM-000W Series Event Output 1/2 No. Character Name Description Initial Value Setting Mode Selection Screen EV Output 1 Setting Mode Settings of the Event Output 1 Function. EV Output 2 Setting Mode Settings of the Event Output 2 Function. _E F _E F Setting of Event Output □...
  • Page 27 TTM-000W Series No. Character Name Description Initial Value _E b Event Output □ Function _E b (Special) ①② ② Type PV Abnormality (break of sensor) Additional Function ① Type Keep (Power reset) Event Output □ Polarity _ E P _E P Setting ①...

  • Page 28: Di Input

    TTM-000W Series DI Input No. Character Name Description Initial Value Setting Mode Selection Screen Setting of the DI Function. DI Input Setting Mode _d1F _d1F DI Function Allocation ① ① Not Active Active READY Auto Manual Reverse Action Direct Action Start Auto Tuning Reverse Action SV Direct Action SV2...

  • Page 29: Communication

    TTM-000W Series Communication No. Character Name Description Initial Value Setting Mode Selection Setting of the communication parameter. Screen Communication Setting _Prt Mode Setting of Communication Dedicated Protocol Protocol MODBUS (RTU) MODBUS (ASCII) _Com _Com Setting of Communication B8n2 ※＊☆★ Parameters BCC Checking Function ※□□□...

  • Page 30: Timer

    TTM-000W Series Timer No. Character Name Description Initial Value Setting Mode Selection Setting of the timer parameter. Screen Timer Setting Mode _tmo Setting of Timer Output Destination Type of Output Destination Timer OFF Control Event 1 Output _tmF Setting of Timer Function Type Auto Start (ON Delay) Manual Start (ON Delay)

  • Page 31: Change Of Temperature Unit °C / °F

    TTM-000W Series Change of temperature unit °C / °F Power ON When the power is turned ON, “Input Type Display Initial Screen screen“ will be displayed for 4 seconds be-fore (4 seconds) moving to “Operation Mode“ Operation Mode 5ET1 for more than 5 seconds. First will be shown.

  • Page 32: Blind Setting Mode

    TTM-000W Series Blind Setting Mode 5ET0…7 With blind-mode-function, parameter sets ( ) or individual parameters from the configura- tion level can be hide to the user. Power ON When the power is turned ON, “Input Type Display Initial Screen screen“ will be displayed for 4 seconds before (4 seconds) moving to “Operation Mode“...

  • Page 33: Other Displays

    TTM-000W Series Other Displays - - - - This will be displayed when the input exceeds the upper limit of the display range. This will be displayed when the thermocouple is disconnected. This will be displayed when any of ABb terminals of resistance temperature detector is disconnected. _ _ _ _ This will be displayed when the input drops below the lower limit of the display range.

  • Page 34: Technical Data

    TTM-000W Series Technical Data Power supply Supply Voltage 100..240 V AC, -15%, +10% or 24 V AC/DC, ±10; 50/60 Hz Power consumption < 10 VA @ 240 V AC CE-Conformity EN 61326-1:2013; EN 61010-1:2010 Certification UL3121-1 (UL/CUL) Measuring input Pt100/JPt100 range -199(,9)..500(,0) °C Pt100 2- or 3-wire connection Thermocouple...

  • Page 35: Ordering Code

    TTM-000W Series Ordering Code Model 004W DIN 48x48 005W DIN 48x96 009W DIN 96x96 Input Thermocouple; Pt100, JPt100 Current, voltage Process output, OUT1 Relay, SPST Electronic bistable 0/12 V DC for SSR relay Continuous, current 4..20 mA Options AL1 relay SPST (standard) OUT2 / AL2 relay SPST (3-point-controller) Interface Without interface...

  • Page 36: Service

    Service Centre 22885 Barsbüttel | GERMANY Tel: +49 40 67073-143 service.martens@ghm-messtechnik.de NOTE Fill in the return form available from the information base online at www.ghm-group.de and sent it in with the product. 12.3 Sales offices North Sales Office Post code: 00000 – 25999 | 27000 – 34999 37000 –...

  • Page 37: Sales Subsidiaries

    Italy for Greisinger & Delta Italy for Honsberg, Martens, Netherlands Val.co GHM Meettechniek BV GHM GROUP – Delta OHM GHM GROUP – Val.co Zeeltweg 30 Via Marconi 5 Via Rovereto 9/11 3755 KA Eemnes | NETHER- 35030 Caselle di Selvazzano 20014 S.
