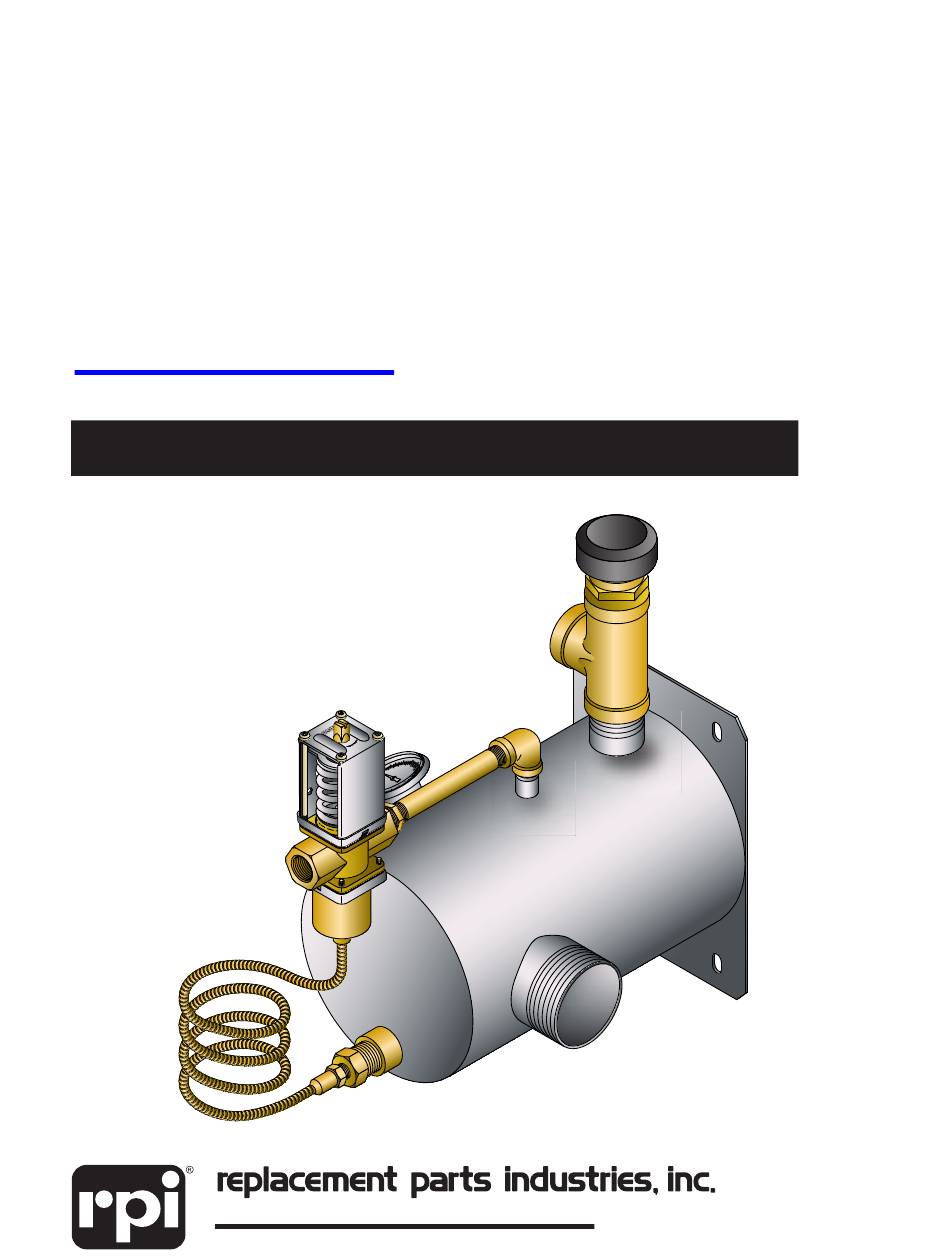

- Page 1 Read and save these instructions! WATER -MIZER ® Water saving & tempering device for sterilization equipment RPI Part #RPA466 Installation, operation and maintenance manual Proud to be an ISO 9001 certified company...
- Page 2 (800) 221-9723 x135. Technicians are available from 8:00 a.m. to 4:30 p.m. (Pacific Time) Monday through Friday, excluding major holidays. For information about other RPI parts, please contact us: Replacement Parts Industries, Inc. 20338 Corisco Street • Chatsworth, CA 91311...
-
Page 3: Table Of Contents
® WATER-MIZER table of contents. Operation Product overview Start-up and operation instructions ......5 Features summary ............1 Dimensions ..............2 Maintenance Warranty ..............9 Maintenance instructions ..........6 Troubleshooting guide ..........7 Installation Installation instructions ..........3 Replacement parts ............. 8 Mounting .............. -
Page 4: Water-Mizer
(See Page 8 to order the Adjustable Floor Stand, RPI Horizontal design! Part #RPH470). These multiple mounting options provide capability for the WATER-MIZER to be WATER-MIZER’s space-efficient horizontal orientation and... -
Page 5: Dimensions
Product overview ® WATER-MIZER dimensions. FLOOR DIMENSIONS DESCRIPTION INCHES HEIGHT OF MOUNTING PLATE 8-1/2 WIDTH OF MOUNTING PLATE WIDTH OF MOUNTING PLATE AND TEMPERED WATER OUTLET 7-1/2 LENGTH FROM COLD WATER INLET VALVE TO MOUNTING PLATE LENGTH FROM END OF TANK TO MOUNTING PLATE 9-3/4 LENGTH FROM CENTER OF TEMPERED WATER OUTLET TO MOUNTING PLATE 7-3/8... -
Page 6: Installation
Mount the WATER-MIZER by attaching the mounting plate to the adjustable floor stand (see page 8 to pitch to the WATER-MIZER of at least 1/8"/ft order the Adjustable Floor Stand, RPI Part (1%). #RPH470), or by attaching the WATER-MIZER directly to the frame of the sterilization equipment. -
Page 7: Mounting
Note: Sterilizer frame mount not illustrated due to differences in framework on differing sterilizers. Mounting option 2: Floor mount (shown below). Note: Adjustable floor stand (RPI Part #RPH470) can be ordered separately (see page 8). Adjustable Floor Stand RPI Part# RPH470... -
Page 8: Operation
Operation ® WATER-MIZER operation. How to operate Vacuum Breaker Once properly installed, to operate the WATER- MIZER simply open the cold water supply valve. Principle of operation Internal Thermometer Temperature Adjustment Temperature - Actuated Valve Capillary Tube Sensor (internal) Steam condensate discharged from your Cold water enters through the temperature sterilization equipment enters the WATER- actuated valve. -
Page 9: Maintenance
Maintenance ® WATER-MIZER maintenance. Annual preventive maintenance on your WATER-MIZER is recommended. Step-by-step maintenance instructions Shut off steam supply to sterilizer. If severe mineral accumulation has occurred, Caution: hot pipes. remove the split nut holding the sensor in place and remove the thermal sensor from the WATER- Shut off cold water supply. -
Page 10: Troubleshooting Guide
Maintenance Troubleshooting guide. Problem Problem Problem Cause Action Number Water leaving the Mineral accumulation in Remove the WATER-MIZER and WATER-MIZER is mixing chamber dislodge mineral accumulation. hotter than 140°F (60°C) Mineral accumulation on Remove thermal sensor from WATER- thermal sensor MIZER and gently remove mineral accumulation with an abrasive pad. -
Page 11: Replacement Parts
RPK692) are not shown in the illustration above. Please see RPI Website for illustration and details. For your replacement parts needs, RPI has parts to fit various bulk sterilizers. See the RPI catalog or visit the website at www.rpiparts.com. Maintenance... -
Page 12: Warranty
RPI has notice of the possibility of such dam- sent of RPI, or if such product has been subject to acci- ages. dent, misuse, mishandling, tampering, negligence or improper maintenance.
