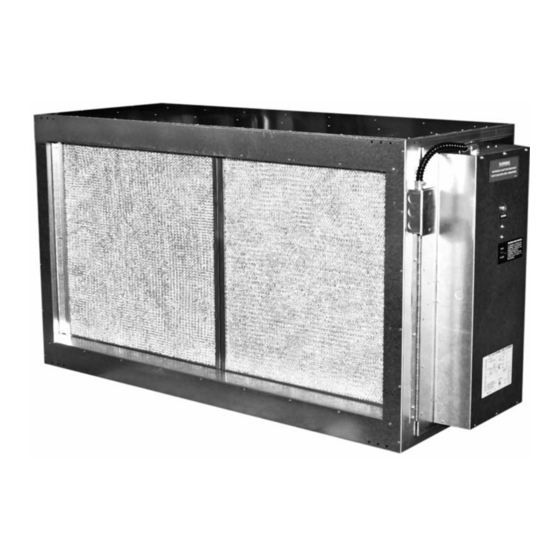

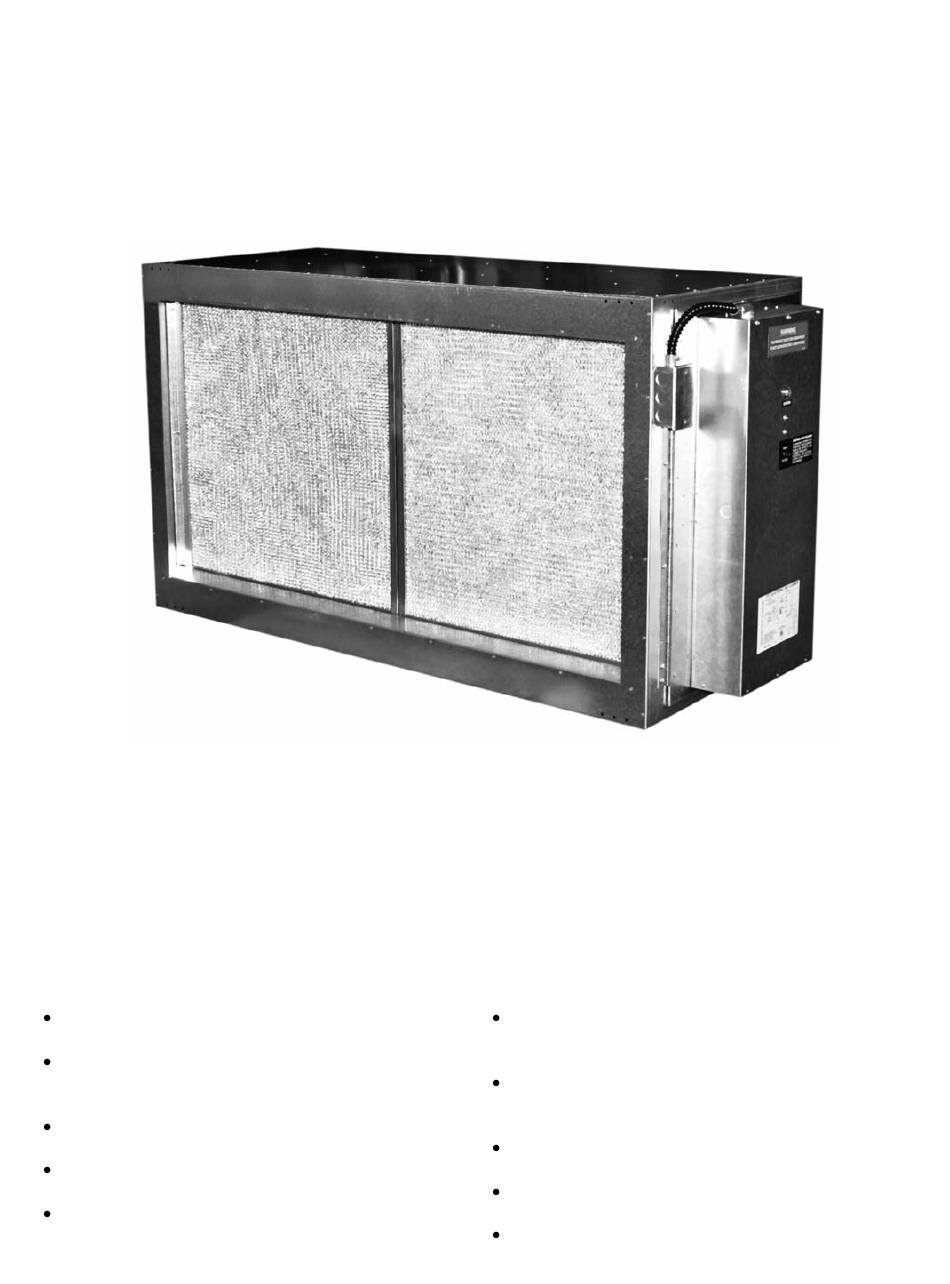

SMOKEMASTER
MODELS F72A & F72B
INDUSTRIAL ELECTRONIC AIR CLEANER
THE F72 INDUSTRIAL ELECTRONIC AIR CLEANERS INCLUDE COMPONENTS REQUIRED
TO REMOVE AIRBORNE PARTICLES SUCH AS COOLANT MIST, DUST, SOOT, POLLEN,
BACTERIA, TOBACCO AND COOKING SMOKE FROM THE CIRCULATING AIR IN LARGE
RESIDENTIAL, COMMERICAL AND INDUSTRIAL MANUFACTURING FACILITIES. THE AIR
CLEANER IS MOUNTED IN THE RETURN AIR DUCT OF A FORCED AIR SYSTEM WHERE
AMBIENT TEMPERATURE DOES NOT EXCEED 125°F (52°C). ONE OR TWO ELECTRONIC
CELLS, OPERATED BY HIGH VOLTAGE POWER SUPPLIES, REMOVE AIRBORNE
CONTAMINANTS AT EFFICIENCIES AS HIGH AS 99 PERCENT. PERFORMANCE IS
MONITORED BY A STATUS LIGHT ON THE POWER SUPPLY.
Cleans the air at a rate of 1,000 to 12,000 cfm
(1,699 to 20,390 m³/hr.) in forced air systems.
Rated 80 to 99 percent efficient according to
the National Bureau of Standards Dust Spot
Method using atmospheric dust.
Same high capacity, industrial electronic cell
used in all models.
Reversible electronic cell allows system
airflow to enter cabinet from either side.
High voltage, solid state power supply retains
peak efficiency over a wide range of cell dirt
loading conditions.
High voltage power supply uses voltage
doubler to provide increased ionization
voltage.
F72 models are available in all single phase
voltages: 100-120 volt, 200-240 volt, 50 or
60 Hz.
Performance indicator light and test button
provides operational status.
Strong, galvanized steel cabinet can be
installed vertically or horizontally.
Hinged power door allows easy access to cells
and filters.
®
Advertisement
Table of Contents
Related Manuals for Smokemaster F72 Series
Summary of Contents for Smokemaster F72 Series
- Page 1 ® SMOKEMASTER MODELS F72A & F72B INDUSTRIAL ELECTRONIC AIR CLEANER THE F72 INDUSTRIAL ELECTRONIC AIR CLEANERS INCLUDE COMPONENTS REQUIRED TO REMOVE AIRBORNE PARTICLES SUCH AS COOLANT MIST, DUST, SOOT, POLLEN, BACTERIA, TOBACCO AND COOKING SMOKE FROM THE CIRCULATING AIR IN LARGE RESIDENTIAL, COMMERICAL AND INDUSTRIAL MANUFACTURING FACILITIES.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE SPECIFICATIONS PLANNING THE INSTALLATION Sizing Location INSTALLATION Wiring SERVICE TROUBLESHOOTING PARTS LIST WARRANTY... -
Page 3: Specifications
SPECIFICATIONS - IMPORTANT - THE SPECIFICATIONS GIVEN IN THIS PUBLICATION DO NOT INCLUDE NORMAL MANUFACTURING TOLERANCES. THEREFORE, THIS UNIT MAY NOT MATCH THE LISTED SPECIFICATIONS EXACTLY. ALSO, THIS PRODUCT IS TESTED AND CALIBRATED UNDER CLOSELY CONTROLLED CONDITIONS AND SOME MINOR DIFFERENCES IN PERFORMANCE CAN BE EXPECTED IF THOSE CONDITIONS ARE CHANGED. - Page 4 Figure 1 – F72 INSTALLATION DIMENSIONS...
-
Page 5: Planning The Installation
PLANNING THE INSTALLATION - WARNING - TRANSITIONS When adapting the duct to fit the air cleaner, use gradual transitions in duct size to prevent The F72 Industrial Electronic Air Cleaner is not turbulence and to increase efficiency. explosion-proof. It must not be installed where there is danger of vapor, gas or dust explosion. - Page 6 to incorporate some or all of the precautions 2. Air intakes should always be equipped with a “bird screen.” mentioned below. 1. Air intakes should be hooded or louvered to At times, it may be desirable to install a prefilter provide adequate protection from rain and ahead of the electronic air cleaner.
-
Page 7: Installation
smash into it or where stand mountings seriously of a structure is such that effective capturing and interrupt building traffic patterns. The number of air distribution is not possible according to the units required by air volume and air changes per sizing calculations. -
Page 8: Wiring
- IMPORTANT - This section includes information for the sheet metal and electrical installation. Make certain each person involved with the installation is aware of the appropriate subsections in the manual. c. Seal all joints in the return air system to INSTALLATION CHECKLIST prevent dust from entering the clean air stream. - Page 9 The line voltage supplied to the F72 air cleaner A complete internal schematic diagram of the F72 must match the voltage rating stamped on the is shown in Figs. 6 and 7. Figs. 8 and 9 show front of the air cleaner. typical hookups.
- Page 10 FIGURE 8 – MULTI-SPEED OR MODULATING BLOWER MOTOR. (Air cleaner is controlled by a sail switch.) FIGURE 10 – F72 AIR CLEANER HOOKUP TO THREE PHASE, HIGH VOLTAGE POWER SUPPLIES. FIGURE 9 – SINGLE SPEED BLOWER MOTOR. (Air cleaner is controlled by the fan switch and/or the fan relay.)
-
Page 11: Service
SERVICE CLEANING THE ELECTRONIC AIR CLEANER The F72 is used to remove a variety of air cleaners and their components are susceptible contaminants from the air. In the process of to damage. cleaning the air, however, parts of the air cleaner CLEANING THE PREFILTERS will become dirty and the cleaning efficiency will be lowered. - Page 12 5. Remove the cells and prefilters from the rinse After the cleaning process is completed, the soak water. Allow the cells and prefilters to drain water must be neutralized according to the U. S. and dry before energizing them. Environmental Protection Agency and state and The collection plates of the electronic cells MUST local pollution control guidelines and requirements.
- Page 13 after steam cleaning and that care must be taken to avoid burns. - IMPORTANT – After the contaminants are removed by the acid detergent solution, any further time the cells remain in the solution serves only to decrease their life. 4.
- Page 14 Broken or damaged ionizing wires must be CONTAMINANT CLEANING replaced for top efficiency. Remove all parts of PROCEDUREª Mineral Oil – the broken or damaged wire. Replacement wires Alkaline Solution come cut to length and ready for installation. (petroleum base, diesters High Pressure Water Remember that wires come cut to length and and silicone)
-
Page 15: Troubleshooting
TROUBLESHOOTING detection and proper repair of any malfunction in - CAUTION - the electronic air cleaner. Most of the troubleshooting steps can be 1. During troubleshooting, dangerous line voltage performed by observing the performance indicator circuits are exposed. Use extreme care to light and by pushing the test button. - Page 16 FIGURE 17 – EXPLODED VIEW OF THE F72 ELECTRONIC AIR CLEANER.
-
Page 17: Parts List
PARTS LIST PART NO. DESCRIPTION F72A F72B Cabinet Assembly 05413 05416 Door, 120V 05414 05414 Door, 240V 05415 05415 Electronic Cell(s)-F72A (1), F72B (2) 38010 38010 Pre/Post Filters-F72A (2), F72B (4) 41113 41113 Cabinet Foot 21411 21411 Ionizer Wires 38005 38005 Indicator Light 10097... - Page 18 NOTES: ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________...
- Page 19 NOTES: ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________...
-
Page 20: Warranty
CERTIFICATE OF WARRANTY ONE-YEAR LIMITED WARRANTY Air Quality Engineering, Inc. (AQE), warrants the Smokemaster® Electronic Air Cleaner to be free from defects in workmanship or materials, under normal use and service, for a period of one (1) year from the date of purchase by the consumer.
