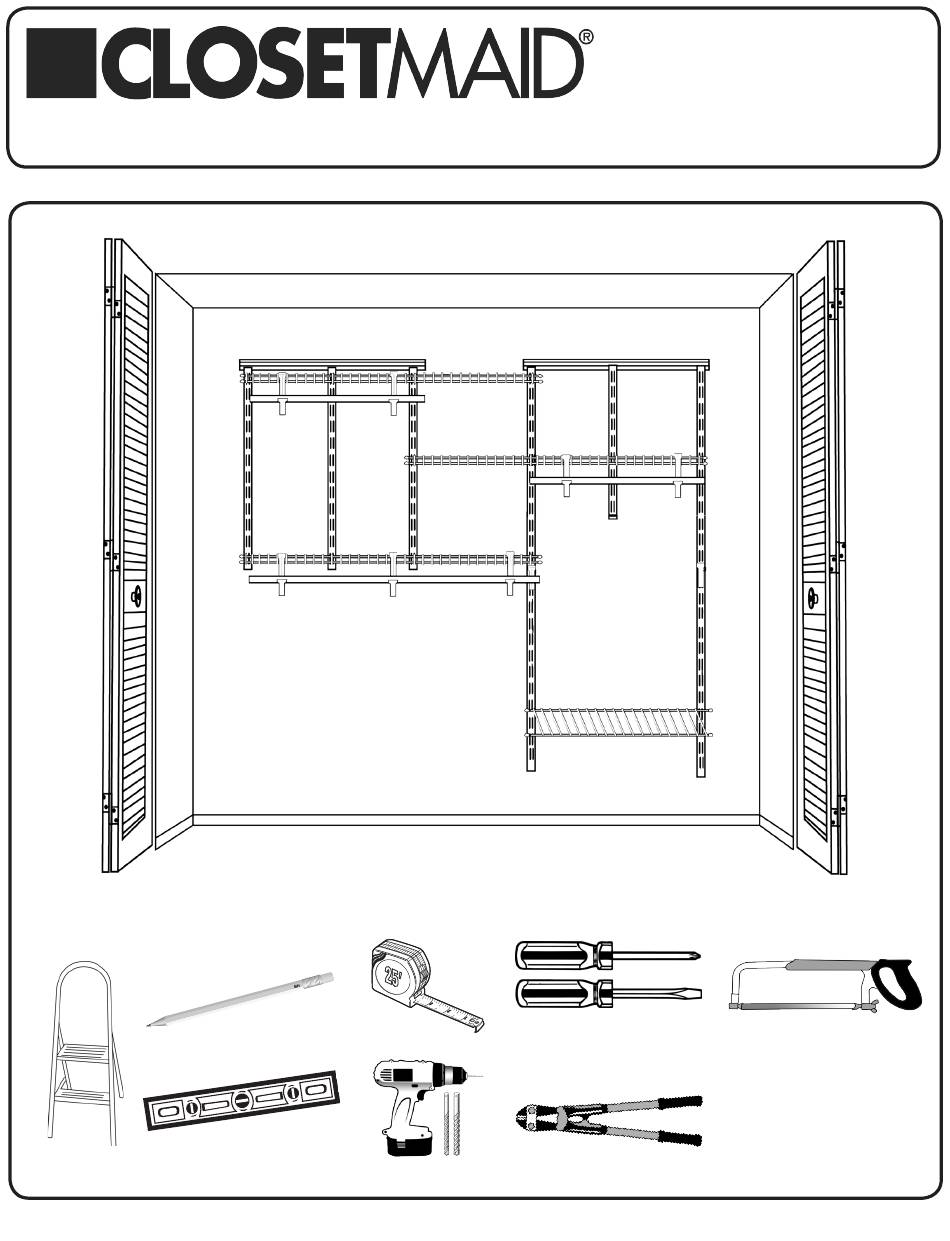

- Page 1 ShelfTrack ® Installation Tips Tools you will need for assembly: .25 in. .50 in. © 2018 ClosetMaid LLC. All Rights Reserved. | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com...
- Page 2 #12 x 2 in. Panhead Screw 1/4 in. Anchor Shelf Caps Closet Rod Cap Shoe Shelf Support and Inserts Closet Rod Support Shelf Bracket Hang Track Standard Closet Rod © 2018 ClosetMaid LLC. All Rights Reserved. | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com...
- Page 3 DETERMINE PROPER HARDWARE FOR WALL TYPE Locate and identify proper hardware for your wall type. CONCRETE DRYWALL USE ANCHOR/SCREW FOR ALL HOLES INTO STUD THROUGH DRYWALL © 2018 ClosetMaid LLC. All Rights Reserved. | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com...
- Page 4 LINE and AGAINST EACH SIDE WALL in closet. Mark all the hole locations on wall. (NOTE FOR DRYWALL INSTALLATION: Be sure at leaset one hole aligns with a stud.) © 2018 ClosetMaid LLC. All Rights Reserved. | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com...
- Page 5 Tighten bolts to secure hang track to wall. CONCRETE For ALL holes, drill a 1/4 in. hole and insert an anchor. Thread a screw through track and into each anchor. © 2018 ClosetMaid LLC. All Rights Reserved. | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com...
- Page 6 To do so, drill 1/4 in. holes at hole locations, insert anchor, and attach standard to wall with 2 in. screw. © 2018 ClosetMaid LLC. All Rights Reserved. | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com...
-
Page 7: Install Brackets
Each 6 ft. shelf requires 4 shelf brackets. Each 4 ft. shelf requires 3 shelf brackets. Each 2 ft. shelf (or cut 1 ft. shelves) require 2 shelf brackets. © 2018 ClosetMaid LLC. All Rights Reserved. | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com... -
Page 8: Install Shelves
Remove shelf and cut with hacksaw or bolt cutter. Do not make cuts where vertical spacers are on front lip of shelf. Place shelf caps onto exposed shelf wires. © 2018 ClosetMaid LLC. All Rights Reserved. | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com... - Page 9 Push shelf backwards so back wire fits into shelf bracket slots. Firmly pull shelf forward at each bracket location to lock shelf into place. Install shoe shelf © 2018 ClosetMaid LLC. All Rights Reserved. | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com...
- Page 10 Pull shelf forward and lower front of shelf onto shoe shelf support. Insert as shown. © 2018 ClosetMaid LLC. All Rights Reserved. | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com...
- Page 11 Place closet rod caps onto ends of each closet rod. Place closet rod into closet rod supports as shown. Press down to snap into place. © 2018 ClosetMaid LLC. All Rights Reserved. | Ocala, FL 34471 | 1-800-874-0008 | www.closetmaid.com...
