Summary of Contents for Tactical technologies TPC1
- Page 1 Installation Manual TPC1 N645 ® Designed & Manufactured Tel: +61 2 8822-1888 www.tac-tech.com.au Fax: +61 2 8822-1899...

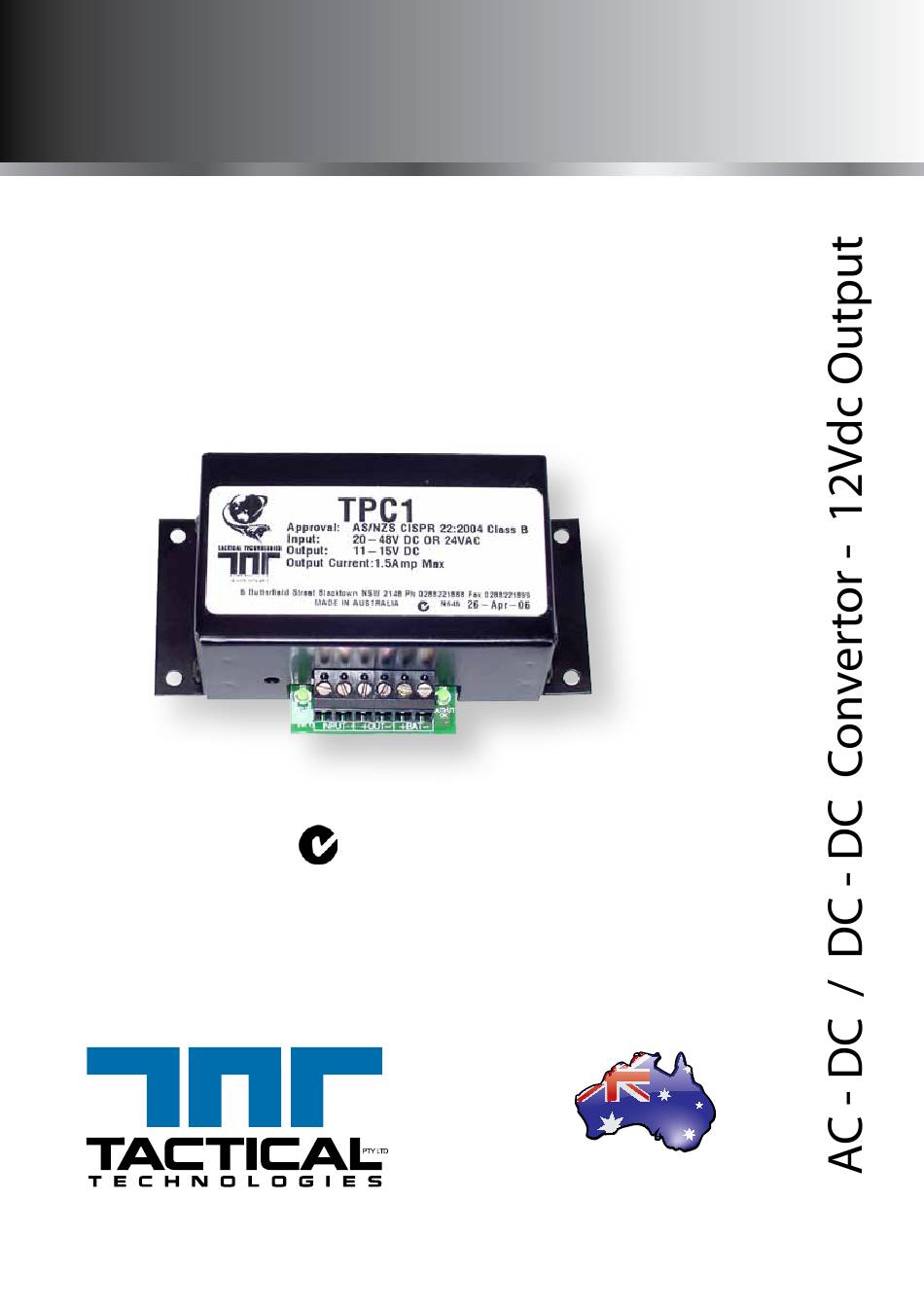

- Page 2 This power convertor is designed for indoor use only. The TPC1 is a low profile DC - DC / AC - DC Convertor designed to convert either 24V AC or 18-48V DC to a reliable, clean output voltage between 11-15Vdc (12V nominal) and is rated for 1.5A continuous output.
- Page 3 LAYOUT Output Voltage Adjustment (Use an insulated screwdriver to adjust) Input OK LED Input Terminals: 18Vdc - 48Vdc or 24Vac nominal Output Terminals: 11 - 15Vdc / 1.5A Max (factory set to 12.2Vdc) Battery Connection - output must be adjusted to 13.8Vdc for battery operation Output OK LED Mounting Holes Document: TPC1_Rev C.pdf...
- Page 4 TPC1 ® AC-DC / DC-DC Convertor Specifications : ( In the interests of product improvement, Tactical reserves the right to change specifications without notice) TPC 1 18Vdc - 48Vdc or 24Vac nominal Input Voltage Output Voltage Factory set to 12.2Vdc (11 - 15Vdc adjustable ) Output Current 1.5A Max.
