CoaXPress

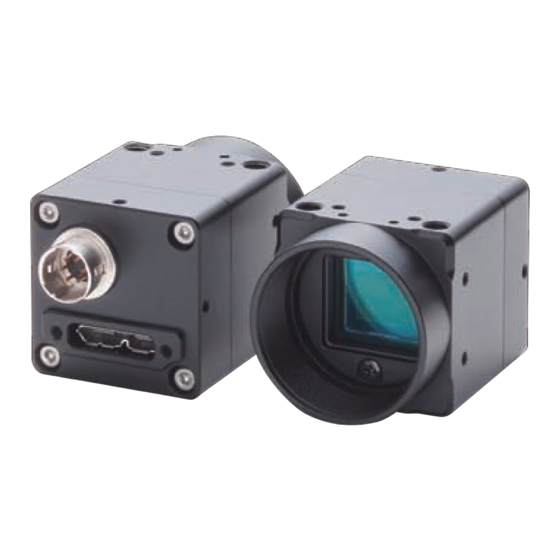

Monochrome / Color CMOS Camera
STC-MBS212CXP6 (2M / Monochrome / High speed / CXP-6 x1)
STC-MCS212CXP6 (2M / Color / High speed / CXP-6 x1)
Product Specifications and User's Guide
STC-MBS212CXP6 / STC-MCS212CXP6
Product Specifications and User's Guide
For More Information Please Call Aegis Electronic Group, Inc. * (888) 687-6877 Phone * aegis-g2@aegiselect.com * http://www.aegis-elec.com
No.20S024-ES00
1/16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Omron Sentech CoaXPress STC-MBS212CXP6
Summary of Contents for Omron Sentech CoaXPress STC-MBS212CXP6
- Page 1 No.20S024-ES00 CoaXPress Monochrome / Color CMOS Camera STC-MBS212CXP6 (2M / Monochrome / High speed / CXP-6 x1) STC-MCS212CXP6 (2M / Color / High speed / CXP-6 x1) Product Specifications and User’s Guide STC-MBS212CXP6 / STC-MCS212CXP6 1/16 Product Specifications and User’s Guide For More Information Please Call Aegis Electronic Group, Inc.
-
Page 2: Table Of Contents
No.20S024-ES00 Table of Contents Product Precautions ................................ 5 Warranty ................................... 5 Overview ................................... 6 Features ..................................6 Product Number Naming Method ..........................6 Specifications .................................. 7 Electronic Specifications............................. 7 Spectral Sensitivity Characteristics ..........................9 4.2.1 STC-MBS212CXP6 (Monochrome) ........................9 4.2.2 STC-MCS212CXP6 (Color) .......................... - Page 3 No.20S024-ES00 Precautions for safe use Please read carefully this “Precautions for safe use” before use the camera. Then the camera uses correctly with agreeing with below notes. In this “Precautions for safe use”, notes divides into “Warning” and “Caution” to use the camera safety and prevent to harm and damage.
- Page 4 No.20S024-ES00 [Usage instruction] Warning Do not touch the terminal and PCB board Do not put combustibles near the camera. While turn on the camera. This will cause of fire. This will cause of electrification or accident caused by malfunction. Do not use without usage that is specified in Do not push metals including screw driver into the specifications for this camera.
-
Page 5: Product Precautions
No.20S024-ES00 Product Precautions Do not give shock to the camera. Do not haul or damage the camera cable. Do not wrap the camera with any material while using the camera. This will cause the internal camera temperature to increase. ... -
Page 6: Overview
No.20S024-ES00 Overview This document describes the specifications of the following cameras STC-MBS212CXP6 / STC-MCS212CXP6 Features ・CoaXPress (CXP) Interface: CXP-6, 1 lane ・PoCXP (Power Over CoaXPress) support ・Maximum frame rate (Full resolution): 239 fps @ 2M 8bits ・CMOS (Global Shutter) ・Up to Pixel Defect Correction (Default: ON) ・8bits, 10bits, 12bits output Product Number Naming Method... -
Page 7: Specifications
No.20S024-ES00 Specifications Electronic Specifications STC-MBS212CXP6 STC-MCS212CXP6 Model Number 1/1.7” 2M Progressive Monochrome CMOS 1/1.7” 2M Progressive Color CMOS Image Sensor (SONY: IMX422) (SONY: IMX22) Shutter Type Global Shutter 1,624 (H) x 1,240 (V) Active Picture Elements 4.5 (H) x 4.5 (V) µm Cell Size Scanning System Full scanning / ROI... - Page 8 No.20S024-ES00 Precautions (*1) The sensitivity is measuring the luminance when white level achieved 100 % in below conditions. (TBD) Camera Setting Environment Parameter Setting Parameter Setting Gain Up 0 dB Light Source Light Box (White) Color temperature 5,100K White Balance Optimum Lens Electrical Shutter...
-
Page 9: Spectral Sensitivity Characteristics
No.20S024-ES00 Spectral Sensitivity Characteristics 4.2.1 STC-MBS212CXP6 (Monochrome) 4.2.2 STC-MCS212CXP6 (Color) STC-MBS212CXP6 / STC-MCS212CXP6 9/16 Product Specifications and User’s Guide For More Information Please Call Aegis Electronic Group, Inc. * (888) 687-6877 Phone * aegis-g2@aegiselect.com * http://www.aegis-elec.com... -
Page 10: Mechanical Specifications
No.20S024-ES00 Mechanical Specifications STC-MBS212CXP6 STC-MCS212CXP6 Model Number 28 (W) x 28 (H) x 40 (D) mm (*1) Dimensions Optical Filter No Optical Filter Optical Center Accuracy Positional accuracy in Horizontal and Vertical directions: +/- 0.3 mm Rotational accuracy of Horizontal and Vertical: +/- 1.5 deg. Material Aluminum alloy (AC) Lens Mount... -
Page 11: External Connector Specifications
No.20S024-ES00 External Connector Specifications 4.5.1 Micro BNC connector Micro BNC, 75 Ohm x 1 This camera is PoCXP supported CoaXPress camera. The CoaXPress frame grabber board is supplied power to camera through Micro BNC connector. STC-MBS212CXP6 / STC-MCS212CXP6 11/16 Product Specifications and User’s Guide For More Information Please Call Aegis Electronic Group, Inc. -
Page 12: Io Connector (Tbd)
No.20S024-ES00 4.5.2 IO Connector (TBD) HR10A-7R-6PB (Hirose) or equivalent. This connector is for input and output signals. As for the cable part (Female connector), HR10A-7P-6S (Hirose) or equivalent can be used. Pin assignment Pin No. Signal Name IN/OUT Signal Voltage Line3 IN/OUT +3.3 V... -
Page 13: Connector Indicator Lamp
No.20S024-ES00 4.5.3 Connector indicator lamp Connector indicator LED exists beside of Micro BNC connector. LED informs status of communication. The detail of status is as following table. Status LED Blinking Pattern No connection System booting Solid orange External powered, but no CXP connection RED slow blinking PoCXP connection Fast flash alternating green / orange shown for a minimum... -
Page 14: Dimensions
No.20S024-ES00 Dimensions Tentative. Unit: mm STC-MBS212CXP6 / STC-MCS212CXP6 14/16 Product Specifications and User’s Guide For More Information Please Call Aegis Electronic Group, Inc. * (888) 687-6877 Phone * aegis-g2@aegiselect.com * http://www.aegis-elec.com... -
Page 15: Revision History
No.20S024-ES00 Revision History Date Changes Note ES00 2020/02/25 New Document Note: Product specifications would be changed without notification. CoaXPress is registered trademarks of JIIA (Japan Industrial Imaging Association) GenICam is trademark of EMVA. Other company names and product names in this document are trademarks of their respective owners. STC-MBS212CXP6 / STC-MCS212CXP6 15/16 Product Specifications and User’s Guide...
