OWNER'S/PARTS
MANUAL
WEEDROLLER PRO
REGULATIONS FOR WEED REMOVAL VARY FROM
STATE TO STATE. CONSULT YOUR STATE AND LOCAL
WEED REMOVAL REGULATIONS.
To prevent risk of spreading aquatic invasive species consult
your state and local regulations for relocating a WeedRoller
PRO from one public body of water to another.
RECORD SERIAL NUMBER HERE
PN: 54678-00 R040115
Advertisement
Chapters
Table of Contents
Troubleshooting
Related Manuals for Crary WeedRoller PRO
Summary of Contents for Crary WeedRoller PRO
- Page 1 OWNER'S/PARTS MANUAL WEEDROLLER PRO REGULATIONS FOR WEED REMOVAL VARY FROM STATE TO STATE. CONSULT YOUR STATE AND LOCAL WEED REMOVAL REGULATIONS. To prevent risk of spreading aquatic invasive species consult your state and local regulations for relocating a WeedRoller PRO from one public body of water to another.
- Page 2 Please Send Us Your Warranty Registration Card A warranty card is included with the WeedRoller PRO. Please take the time to fill in the information requested on the card. When you send your completed card to us, we will register your WeedRoller PRO and start your coverage under our limited warranty.
- Page 3 OWNER OR THE WARRANTY WILL BE VOID. In the event of a failure, return the product, at your cost, along with proof of purchase to the selling Crary Industries, Inc. dealer. Crary Industries, Inc. will, at its option, repair or replace any parts found to be defective in material or workmanship.
- Page 4 THE WEEDROLLER PRO IS UNIQUE: The patented WeedRoller PRO is the only device of its kind utilizing the concept of surface activity to free a defi ned area of weeds and light sediments. Because of its uniqueness, many neighbors, observers, and even natural resource offi...
- Page 5 Many types of fi sh prefer to spawn in weed free and shallow areas. The clear sandy bottom created by the WeedRoller PRO is often ideal, and many fi sh will be attracted to this area for spawning. The WeedRoller PRO can help increase the fi...
-
Page 6: Table Of Contents
4.5 AC WEEDROLLER PRO SERVICE RECORDS ......... 17 2.12 CONNECT DRIVE HEAD TO POWER ..........10 4.6 AC WEEDROLLER PRO TROUBLESHOOTING FLOW CHART 1 ..18 2.13 ADJUST THE SWITCH ARMS ............11 4.7 AC WEEDROLLER PRO TROUBLESHOOTING FLOW CHART 2 ..20 4.8 AC WEEDROLLER PRO TROUBLESHOOTING FLOW CHART 3 .. -
Page 7: Safety
4. Use a 110 volt ground fault interrupter circuit. CAUTION 5. Never allow people to enter the water while the WeedRoller PRO is operating. Indicates a potentially hazardous situation that, if not 6. Adjust the reversing switches to the proper angle. -
Page 8: Electrical Safety
2. Never use an indoor extension cord. ning the WeedRoller PRO. Remove the objects to allow the WeedRoller PRO to do a better job and to make the 3. Ensure the power cord is in good condition. A cord with area safer for swimming and water use. -
Page 9: Safety Decals
For replacement decals or operator's manual, contact BREAKER. KEEP CORD BETWEEN POWER your WeedRoller dealer CONVERTER AND WEEDROLLER DRIVE HEAD or Crary Company P.O. Box 849 West OUT OF WATER. ELECTROCUTION CAN Fargo, ND 58078 OCCUR. FAILURE TO MAINTAIN PROPER... -
Page 10: Assembly
Section 2.1 BEGINNING ASSEMBLY The WeedRoller PRO comes in three separate boxes. Inspect each box to make sure that no parts are missing. Box One contains: Drive Head Assembly, Owner's Manual, Warranty Registration Card, Installation DVD. Box Two contains: (2) 7' Roller Tubes Box Three contains: (1) Flex Coupler Assembly, (1) 7' Roller Tube, (1) Roller Adapter Assembly, Dock Mount Brackets (2), 70' Extension Cord, Assorted Hardware, AC Power Supply. -
Page 11: Installing The Flex Coupler
3. Torque to 30 ft-lbs. 4. Repeat steps 1-4 to connect a roller to the opposite side of the flex coupler. 3/8" X 2-1/4" HEX BOLT 3/8" SERR. FLANGE NUT SECOND ROLLER TUBE 54678-00 R010114 WeedRoller PRO Owner's/Parts Manual... -
Page 12: Choose Correct Dock Mount
ASSEMBLY & MOUNTING 2.5 CHOOSE CORRECT DOCK MOUNT The WeedRoller PRO can be adjusted to operate with many different mountings and roller arc degrees, depending on: 1. The mount bracket position on your dock. 2. The switch arm adjustments. The switch arms easily adjust to set the direction and arc of the rollers. -
Page 13: Attach Dock Mount Brackets
DOCK POSTS) ADJUSTMENT ROUND DOCK POST KNOB BOTTOM BRACKET Square Dock Mount Brackets (rotated 45 degree.) DOCK MOUNTING BRACKETS (SPACE AT LEAST 18" APART) V-BOLTS (FOR ROUND DOCK POSTS) BOTTOM BRACKET Round Dock Mount Brackets 54678-00 R010114 WeedRoller PRO Owner's/Parts Manual... -
Page 14: Removing The Drivehead
This will set the magnet at the 2. Loosen the knob located below the head unit. proper gap distance from the sensors. 3. Lift the WeedRoller PRO head unit off of the base unit. DETENT LINES UP WITH SLOT ON THE PIVOT TUBE... -
Page 15: Attach Drive Head To The Dock
PRO slide down in the brackets to touch the lake bot- REAR TUBE tom. WELDMENT 3/8" X 3" SPACER CRG BOLT ADJUSTMENT KNOB MOUNT BRACKET 3/8" SERR. FLANGE NUT 1/2" BOLT ROLLER ADAPTER ASSEMBLY SEAL COVER DISC GEARBOX SHAFT 54678-00 R010114 WeedRoller PRO Owner's/Parts Manual... -
Page 16: Connect Drive Head To Power
110 volt extension cord away from water. Use ex- decals and instructions. tension cords rated for outdoor use only. Disconnect WeedRoller PRO from 110 volt supply and check it before resetting the breaker if the circuit breaker trips. Keep the 28 volt power cord out of the water. -
Page 17: Adjust The Switch Arms
2. Lift the cover on top of the drive head. WeedRoller PRO arc. 3. Adjust the switch arms to the desired WeedRoller PRO 10. Rollers should not operate within 12" of fixed objects. arc. -
Page 18: Operation
For example, when the WeedRoller PRO is fi rst used, the initial setting is 4.5 amps. If the controller records 3.5 amps as the highest draw during the 10 cycles, it resets the maximum draw setting from 4.5 amps to 3.6 amps (.1 amp above the peak current of 3.5 amps.) The controller now will reverse the WeedRoller PRO tubes if the motor draws 3.6 amps... -

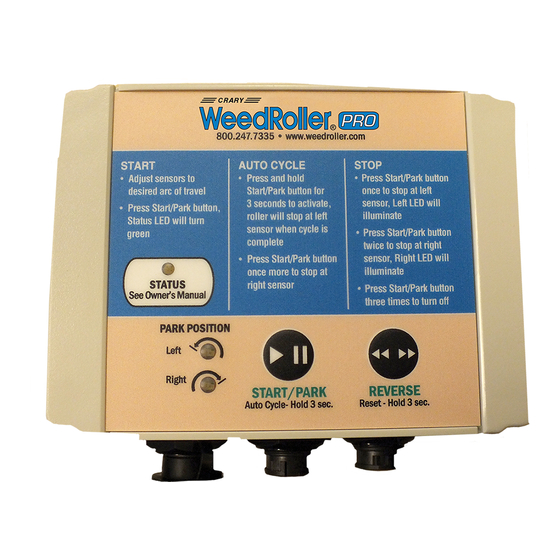

Page 19: Controller - Park/Pause Function
The controller needs to be reset when adjusting switch arms or after moving the WeedRoller PRO. See Sec. 3.10 for more information on operating the WeedRoller PRO under abnormal conditions. Check for stuck rollers tubes or obstructions before resetting the controller. -
Page 20: Controller - Protection Circuitry Indicator
3.9 CONTROLLER - PROTECTION CIRCUITRY INDICATOR The controller monitors the WeedRoller PRO operation and will reverse it or turn if off automatically if the tubes are obstructed or if the motor malfunctions. Information is communicated to the owner through the indicator light. Refer to chart below for the controller’s LED meanings. -
Page 21: Operating In Muddy Conditions
Install a Crary Mud kit. Order the Mud Kit (PN 51320) for moderately muddy conditions. Order Plastic Pipe Kit (PN 51134) for extremely muddy conditions. 3.11 ADJUSTING BRACKETS TO CONDITIONS The WeedRoller PRO dock mounting brackets can be adjusted in a variety of different ways to help deal with muddy or uneven lake bottoms. •... -
Page 22: Service & Maintenance
4.2 OFF-SEASON STORAGE • The WeedRoller PRO can be left in the lake year round if the lake does not freeze over. Remove the WeedRoller PRO and store it over the winter if the lake freezes over. •... -
Page 23: Load Reverse
For example: the initial setting is 4.5 (maximum) amp draw when the WeedRoller PRO is fi rst used. The controller records a 3.5 amp draw (highest amp draw during 10 cycles) and resets the maximum amp draw setting from 4.5 amp draw to 3.6 amps. -
Page 24: Ac Weedroller Pro Troubleshooting Flow Chart 1
SERVICE & MAINTENANCE 4.6 AC WEEDROLLER PRO TROUBLESHOOTING FLOW CHART 1 BEGIN TROUBLESOOTING HERE Check for con nuity of the cord WeedRoller between the Power Supply and the does not WeedRoller unit. Also check for operate a er con nuity of the WeedRoller Power pressing the Harness. - Page 25 SERVICE & MAINTENANCE 4.6 AC WEEDROLLER PRO TROUBLESHOOTING FLOW CHART 1 Le & Right LED ashing LED ashing LED ashing ashing GREEN GREEN 1 GREEN 4 GREEN 1 simultaneously me per mes per every 3 1 me per second. second.
-
Page 26: Ac Weedroller Pro Troubleshooting Flow Chart 2
SERVICE & MAINTENANCE 4.7 AC WEEDROLLER PRO TROUBLESHOOTING FLOW CHART 2 Con nued from AC LED ashing LED ashing LED ashing LED is WEEDROLLER RED 1 RED 4 RED 1 con nuous (MODEL 54677) mes per mes per every 3 RED. -
Page 27: Ac Weedroller Pro Wiring Diagram
MOTOR - RED MOTOR - BLUE CONTROLLER - RED CONTROLLER - BLUE MOTOR - YELLOW CONTROLLER - YELLOW TO CONTROLLER WEEDROLLER PRO 8 AMP ELECTRICAL SCHEMATIC, AC 13359-00, TRANSFORMER 115 VAC TO 28 VAC GREEN GROUND TO BOX WHITE BLACK BLACK... - Page 28 PARTS CATALOG WEEDROLLER PRO MODEL 54677 WEEDROLLER PRO WeedRoller PRO Owner's/Parts Manual 54678-00 R010114...
- Page 29 TRIPOD MOUNTING KIT (OPTION) .................................... 40 WEEDROLLER PRO........................................24 WEEDROLLER PRO........................................25 WEEDROLLER PRO BASE ......................................26 WEEDROLLER PRO CONTROL TOP ..................................28 WEEDROLLER PRO POWER SUPPLY ..................................32 WEEDROLLER TALL EXTENSION KIT (DEEP WATER EXTENSION) (OPTION) ..................... 35 54678-00 R010114...
-
Page 30: Weedroller Pro
WEEDROLLER PRO WeedRoller PRO Owner's/Parts Manual 54678-00 R010114... -
Page 31: Weedroller Pro
NUT, 3/8 SERR FLANGE NC ZP 51154 BELTING, FLEX COUPLER 51163 BUSHING, FLEX COUPLER 51164 PLATE, WEAR FLEX COUPLER 51291 ASSEMBLY, 7' ROLLER (INCLUDES ITEMS 14 & 15) 16580 PLUG, 1" TUBE 51290 WELDMENT, 7' ROLLER 54678-00 R010114 WeedRoller PRO Owner's/Parts Manual... -
Page 32: Weedroller Pro Base
WEEDROLLER PRO BASE WeedRoller PRO Owner's/Parts Manual 54678-00 R010114... - Page 33 V-BOLT, DOCK MOUNT ZP 51191 BRACKET, DOCK MOUNT 51249 DISC, SANDWICH PACK 51252 GEARBOX, RIGHT ANGLE 2.3:1 (PAGE 31) 51274 WELDMENT, 5/8 HEX SHAFT 51344-00 PLATE, DRIVEHEAD WEAR 54579-00 WELDMENT, BASE 54586-00 PLATE, DISC-PIVOT 54591-00 WELDMENT, TUBE-PIVOT 54678-00 R010114 WeedRoller PRO Owner's/Parts Manual...
-
Page 34: Weedroller Pro Control Top
WEEDROLLER PRO CONTROL TOP WeedRoller PRO Owner's/Parts Manual 54678-00 R010114... - Page 35 WEEDROLLER PRO CONTROL TOP WEEDROLLER CONTROL TOP ( 54574-00) ITEM PART NUMBER DESCRIPTION QTY. 12611 DECAL, CAUTION WATER LEVEL 15225 SCREW, #10 X 3/4 HEX TAP SC 15255 NUT, 8-32 NYLOCK 15898-00 NUT, 1/2-13 SQR ZP 15901-00 SCREW, 1/4-28 X .75 HF ZP...
-
Page 36: Gearbox, Right Angle 2.3:1
GEARBOX, RIGHT ANGLE 2.3:1 WeedRoller PRO Owner's/Parts Manual 54678-00 R010114... - Page 37 PERMA. LOK, 1.69 OZ. VIAL (NOT SHOWN) 30338-00 **LUBRIPLATE PURE FLUSH (NOT SHOWN) **Before off season storage, it is recommended to clean and fl ush your equipment. Refer to Section 4.3 for Gearbox Maintenance and LUBRIPLATE Pure Flush Instructions. 54678-00 R010114 WeedRoller PRO Owner's/Parts Manual...
-
Page 38: Weedroller Pro Power Supply
WEEDROLLER PRO POWER SUPPLY TO NUMBER 7 BLACK WHITE TO NUMBER 12 TO NUMBERS 8 AND 11 GREEN GROUND TO BOX WHITE TO NUMBER 6 WHITE TO NUMBER 2 BLACK TO BLACK TO NUMBER 1 NUMBER 5 ASSEMBLY, AC WEEDROLLER POWER SUPPLY ( 51324-00) -
Page 39: Description
70' EXTENSION CORD 70’ EXTENSION CORD (AC WR) ( 51327-00) ITEM PART NUMBER DESCRIPTION QTY. 51327-00 70’ EXTENSION CORD (AC WR) WITH ENDS 13374-00 CONNECTOR, 2 POLE FEMALE QUICK 13373-00 CONNECTOR, 2 POLE MALE 54678-00 R010114 WeedRoller PRO Owner's/Parts Manual... -
Page 40: Roller Adapter
QTY. 51213 WELDMENT, STEEL ADAPTER 51059 WEEDROLLER BUSHING 51060 WEEDROLLER COUPLER 15092 BOLT, 1/2 X 2-1/2 GR5 NC ZP 15043 NUT, 1/2” HEX NC ZP 15549 BOLT, 1/2 X 3-3/4 HHCS GR5 NC ZP WeedRoller PRO Owner's/Parts Manual 54678-00 R010114... -
Page 41: Weedroller Tall Extension Kit (Deep Water Extension) (Option)
WEEDROLLER TALL EXTENSION KIT (DEEP WATER EXTENSION) (OPTION) The 30" extension kit increases the maximum water depth of the standard unit from 4-1/2 feet to 7 feet. Up to two exten- sions can be added per WeedRoller PRO. KIT, WR TALL EXTENSION (DEEP WATER) ( 51409) -
Page 42: Mud Kit (Option)
MUD KIT (OPTION) For moderate mud and muck conditions. Acts as a large paddle on the end roller, providing traction in mud. Remove mud kit after the WeedRoller PRO has worked down to fi rmer lake bottom. KIT, MUD ( 51320) -
Page 43: Plastic Pipe Mud Kit (Option)
PLASTIC PIPE MUD KIT (OPTION) For extreme mud and muck conditions. Increases fl otation of tubes. Remove mud kit after the WeedRoller PRO has worked down to fi rmer lake bottom. KIT, PLASTIC PIPE MUD ( 51134) ITEM PART NUMBER DESCRIPTION QTY. -
Page 44: Additional Flex Coupler (Option)
ASSEMBLY, FLEX COUPLER (INCLUDES ITEMS 1 - 5) 0103-0711-00 BOLT, 3/8 X 2-1/4 HEX GR5 ZP 15051 NUT, 3/8 SERR FLANGE NC ZP 51154 BELTING, FLEX COUPLER 51163 BUSHING, FLEX COUPLER 51164 PLATE, WEAR FLEX COUPLER WeedRoller PRO Owner's/Parts Manual 54678-00 R010114... -
Page 45: Additional 7 Foot Roller With Flex Coupler (Option)
NUT, 3/8 SERR FLANGE NC ZP 51154 BELTING, FLEX COUPLER 51163 BUSHING, FLEX COUPLER 51164 PLATE, WEAR FLEX COUPLER 51291 ASSEMBLY, 7' ROLLER 16580 PLUG, 1" TUBE (NOT SHOWN) 51290 WELDMENT, 7' ROLLER (NOT SHOWN) 54678-00 R010114 WeedRoller PRO Owner's/Parts Manual... -
Page 46: Tripod Mounting Kit (Option)
TRIPOD MOUNTING KIT (OPTION) For mounting the WeedRoller PRO on shore without a dock or other structure. The drive head serves as the fi rst anchor point. Two sand screw anchors form the remaining two points. KIT, TRIPOD MOUNTING ( 51181) -
Page 47: Kit, Motor Replacement (Option)
KIT, MOTOR REPLACEMENT ( 53940) ITEM PART NUMBER DESCRIPTION 15255 NUT, 8-32 NYLOCK 15901-00 SCREW, 1/4-28 X .75 HF ZP 31448-00 CAPACITOR, 175 MFD 31547-00 MOTOR, 28 VAC BISON GEAR 32261-00 CLAMP, 2-1/2 X 1/2 COATED 54678-00 R010114 WeedRoller PRO Owner's/Parts Manual... -
Page 48: Extension Cords (Option)
EXTENSION CORDS (OPTION) For longer docks that require more than 70 feet of cord between the 110 volt converter on land and the AC power head in the water. Crary does not recommend exceeding 100' of cord. 51343-00 25’ EXTENSION CORD (AC WR) -
Page 49: Dock Mounting Hardware Kit (Option)
DOCK MOUNTING HARDWARE KIT (OPTION) ROUND & 45 DEG. DOCK OPTION Use additional dock hardware to easily move the WeedRoller PRO from one location to another. KIT, HARDWARE - DOCK MOUNTING ( 51188) ITEM PART NUMBER DESCRIPTION QTY. 15051 NUT, 3/8 SERR FLANGE NC ZP... -
Page 50: Inch Dock Bracket Kit (Option)
KIT, 15" DOCK BRACKET ( 51406) ITEM PART NUMBER DESCRIPTION 15051 NUT, 3/8 SERR FLANGE NC ZP 15737-00 BOLT, 3/8 X 4 CRG GR5 FULL THD 51404-00 WELDMENT, 15" DOCK MOUNT 51405-00 PLATE, DOCK BRACKET MOUNT WeedRoller PRO Owner's/Parts Manual 54678-00 R010114... -
Page 51: Side Post Mounting Kit (Option)
KIT, SIDE POST MOUNTING ( 51351) ITEM PART NUMBER DESCRIPTION QTY. 14085-00 MOUNT, SIDE POST 15351 NUT, 5/16 SERR FLANGE NC ZP 15398 BOLT, 5/16 X 1-1/4 CRG GR5 ZP 51279 TUBE, WR PIVOT EXTENSION 54678-00 R010114 WeedRoller PRO Owner's/Parts Manual... -
Page 52: Decals
Scale 3/4:1 Scale 1/2:1 Scale 1:1 800.247.7335 • weedroller.com Crary Industries, Inc. • 237 12th St. NW • West Fargo, ND 58078 For the WeedRoller Pro Owner’s Product Manual scan this QR code with your smartphone’s QR code app Located on front cover... - Page 53 32261-00 ..........29, 41 54588-00 ............29 32348-00 ............29 54591-00 ............27 32355-00 ............29 54628-00 ............29 32359-00 ............29 54677............25 32455-00 ............29 54895-00 ............29 32457-00 ............29 32720-00 ..........29, 46 54678-00 R010114 WeedRoller PRO Owner's/Parts Manual...
- Page 54 NOTES WeedRoller PRO Owner's/Parts Manual 54678-00 R010114...
- Page 55 NOTES 54678-00 R010114 WeedRoller PRO Owner's/Parts Manual...
- Page 56 237 12th St. NW ~ P.O. Box 849 West Fargo, ND 58078-0749 (701)282-5520 ~ FAX: (701)282-9522 www.weedroller.com...
