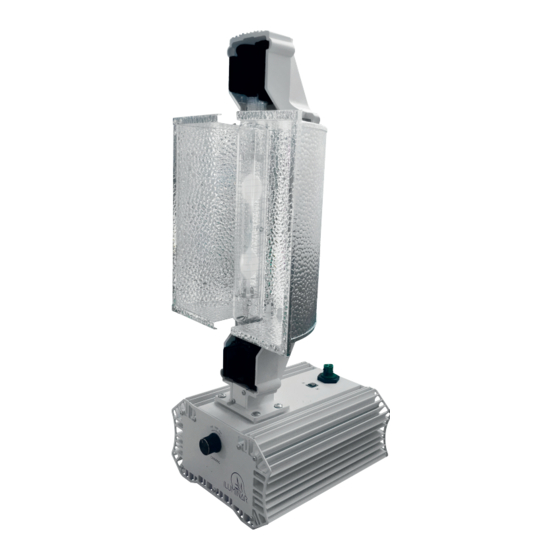

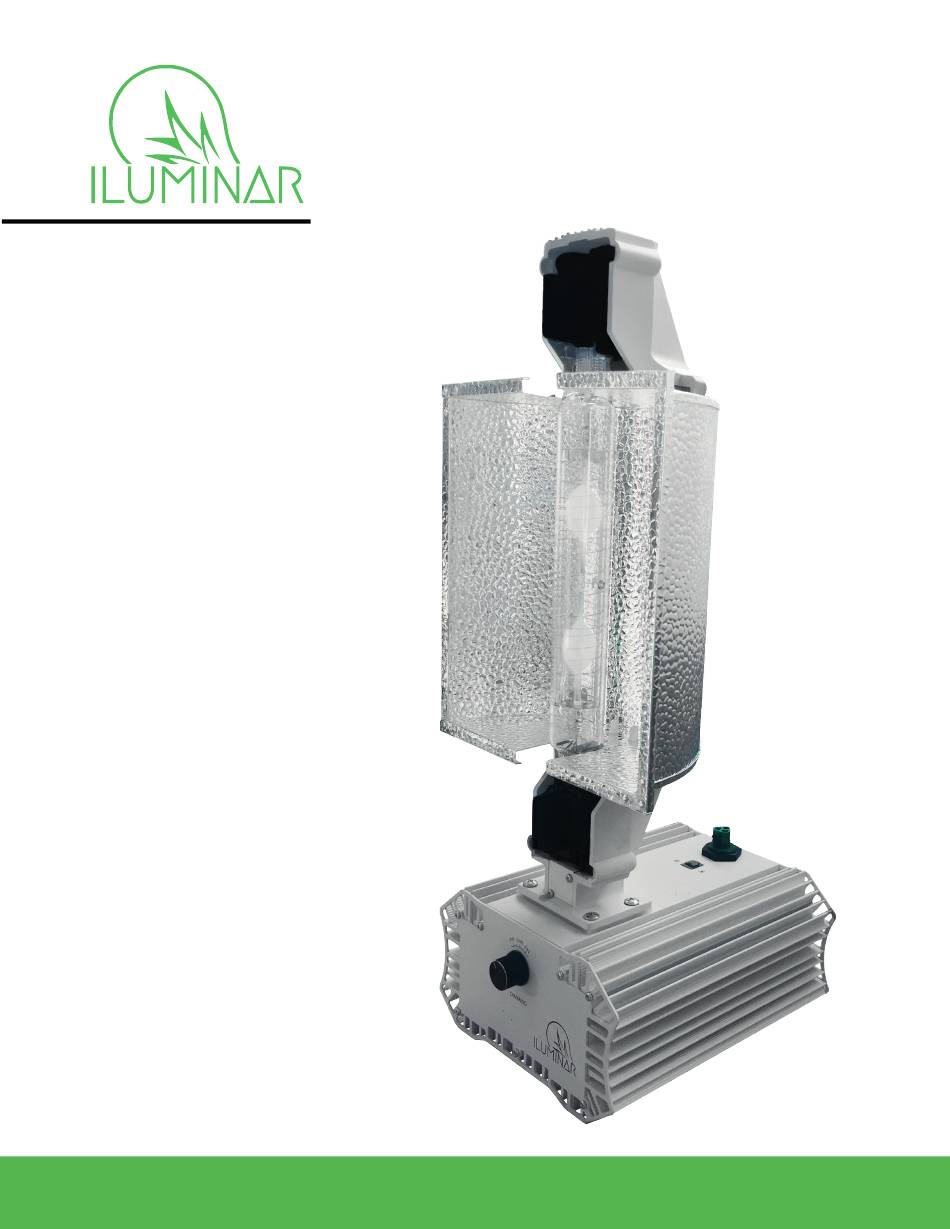

- Page 1 1000W USER MANUAL DE CMH FIXTURE MODEL 1000W 208-277V 877-540-5588 IL-CMHDE1000-240 iluminarlighting.com sales@iluminarlighting.com...
- Page 2 KEEP ORIGINAL PACKAGING Uniform Light Distribution In the event of a return, products will need to be in the original ILUMINAR packaging to avoid product Soft Start Technology damage during shipping. Any damage to products not in their original packaging will not be covered under the Warranty.
-
Page 3: Installation
2. Ambient Temperature: -20º to +40º C / -4 to +104º F 3. Max. Humidity: 95% COMPATIBILITY Compatible with all ILUMINAR CMH DE lamps & CMH DE lamps as well 4. Ignition Voltage: 5kV as the ILUMINAR Touch & ILUMINAR HASH Environment controllers. -
Page 4: Wiring Diagram
Power Cord Wieland Female to Male 347V IL-WLDCRD-347V RJ14 RJ14 RJ14 Controller Connection Wieland Female Wieland Male 1-877-540-5588 © Copyright 2020, ILUMINAR Lighting iluminarlighting.com RJ14-RJ14 5ft / 1.5m RJ14 Splitter Subject to change without notice. sales@iluminarlighting.com SKU: IL-CB-RJ914 SKU: IL-CCRD-RG14-10... -
Page 5: Troubleshooting
TROUBLESHOOTING Follow these troubleshooting solutions: Possible Cause Corrective Maintenance Ensure the lamp is fully inserted into the socket and that Lamp Loose in Socket it has been properly locked. Make sure you’re using the correct input voltage with Incorrect Voltage ballast.
