Summary of Contents for Eisvogel Zhendre R410A

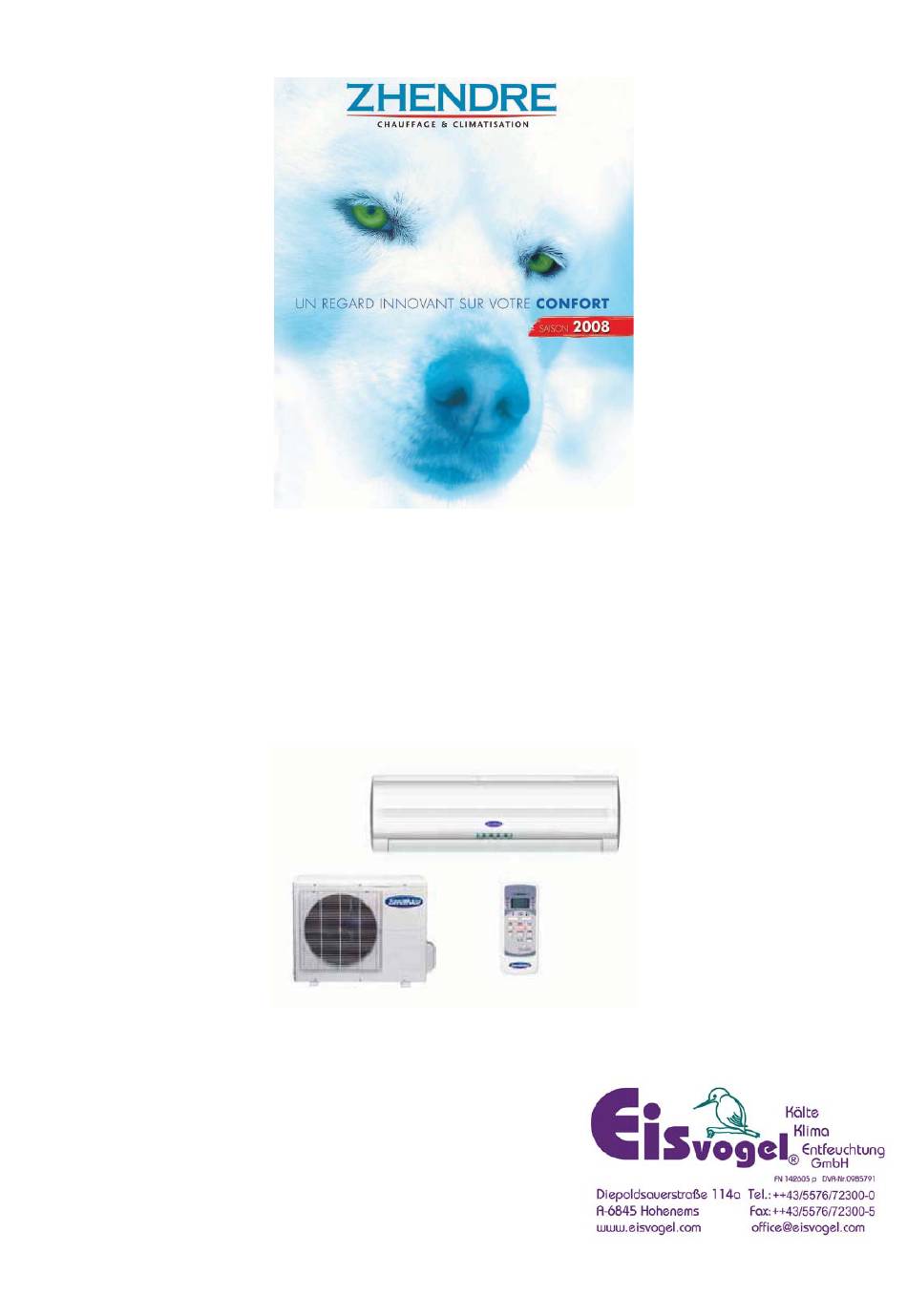

- Page 1 INSTALLATION MANUAL ENGLISH VERSION WALL SPLIT QUICK COUPLING R410A INVERTER R410A R407C 080505-NIN-SQ-EN 1/24...
-
Page 2: Table Of Contents
PRELIMINARY INSTRUCTIONS Please read carefully all instructions included in this manual before installation or servicing the product. Contact qualified and authorized service technician for repair and maintenance of the product. If the wiring cable is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person. -
Page 3: 1- Features
1- FEATURES This air conditioner is made up of one outdoor unit and one wall mounted indoor unit equiped with a quick coupling connection.. The outdoor unit (which includes the compressor) is designed to be installed outside the building. The indoor unit(s) are designed to be installed inside the building, near the ceiling (they function by blowing air through their base). - Page 4 2- PRECAUTIONS (Continued) No malfunction caused by the failure to respect the installation instructions will be covered by the guarantee. The unit should be installed in an easily accessible zone. Any additional costs relating to hire of specific materials to access the unit will be met by the client. ¾...
-
Page 5: 3- Identification Of Parts
3- IDENTIFICATION OF PARTS ¾Indoor Unit 1. Front panel 2. Air Inlet grille 3. Air filter 4. Air outlet 5. Display PCB 6. Remote controller 7. Plate installing ¾Outdoor Unit 8. Refrigerating linking pipes & drain pipe 9. Air Inlet grille 10. -
Page 6: 4- Installation
4- INSTALLATION GENERAL RULES ¾Only trained and qualified persons are authorised to install, maintain and repair air conditioning products. Non-qualified users must not install the products without assistance. ¾Before starting the installation, please read the safety and installation instructions very carefully. This document is published by the manufacturer and indicates the general rules to be followed for the installation of air conditioning products. - Page 7 ¾Outdoor unit -For better efficiency, it is preferable to install the outdoor unit on a shaded wall of the building that on a wall exposed to direct sunlight. -Choose a place where the warm airflow, the cool airflow and the sound levels generated by the unit are not susceptible to disturbing the occupants of the building.
- Page 8 C- Drilling a hole for the flare connections -In the case of a connection at the back on the left, choose the site for the hole through which the flare connections, drain hose and/or electrical interconnection cables will pass, using the diagrams shown in the "SPECIFICATIONS"...
- Page 9 -Then fit the indoor unit into place by inserting the hooks into the bottom of the support slab. - Again try to move the unit left or right to check that it is correctly fixed and adjusted to its position. - Seal the hole through which the connections pass to avoid draughts from the outside blowing inside.
- Page 10 D- Connecting flare connections to the outdoor unit - The connection of the refrigerant piping is made with a connection clamp equipped with a handle for locking. - When needed, the clamp can be lubricated locally with some lubricant compliant with R410A or R407C refrigerant depending on the refrigerant used.
- Page 11 ELECTRICAL CONNECTIONS A- Safety rules and preliminary instructions for basic installation -All cables must conform to local and national standards and must be installed by a qualified electrician. -The electrical power supply should be equipped with a separate electrical protection, such as a D- curved differential circuit breaker or time delay fuses, for which the specifications (especially the diameter) must comply with the manufacturers instructions and with local standards in force.
-
Page 12: 5- Remote Control And Display
4- OPERATIONAL TEST After checking that the following steps have been carried out: the service valves have been opened up completely. The flare nuts are tightened according to recommended coupling torque. Checks for leaks are negative. Ensure that the product is functioning correctly in the various operating modes available. Note in particular in cooling mode (and in heating mode for reversible products) the operating pressure and the air inlet and outlet temperatures. - Page 13 ¾DESCRIPTIF OF BUTTONS Type : R51M/E 1 TEMP À This reduces the set temperature. 2 MODE This enables the operating mode to be selected. Each time the button is pressed, the operational mode changes, in the following order: AUTO (automatic) -> COOL (cooling) -> DRY (dehumidifying) -> HEAT (heating) -> FAN (fan only) -> return to AUTO (automatic) ->...
- Page 14 6 LOCK This locks the remote control settings. Pressing this button a second time deletes this function. 7 TIMER OFF This allows the user to programme a duration after which time the product stops. 8 TIMER ON This allows the user to programme a duration after which time the product starts. 9 ON/OFF This starts or stops the product.
-
Page 15: 6- Operation Instructions
6 Digital display Two numbers in this zone indicate the set temperature selected. 7 Operational indicator This icon appears when the appliance is operating. It disappears when the appliance is switched off. Note : for any other informations concerning this chapter, please refer to the user’s manual. 6- OPERATION INSTRUCTIONS Please see the instructions for use for this chapter. -
Page 16: 8- Diagnosis (Flashing Led S)
Operating the unit on short cycle The compressor is starting -Too much or too little refrigerant, -Empty the installation, repair the but its thermal protection is incondensable air or gas in the circuit. leaks, create a vacuum and refill. operating incorrectly. -Defective compressor capacitor (single -Determine the exact cause and phase models). -
Page 17: 9- Specifications
9- SPECIFICATIONS ¾DIMENSIONS FOR INDOOR UNIT FIXING SUPPORTS Eyelet-type fixing supports (models 7, 9, 12) Modèles 7000 Btu/h 750 mm 9000 Btu/h 750 mm 12 000 Btu/h 790 mm 2- Eyelet-type fixing supports (model 18) ¾BETWEEN THE SUPPORT BLOCKS FOR OUTDOOR UNITS 080505-NIN-SQ-EN 17/24... - Page 18 ¾CLEARANCE FOR OUTDOOR UNITS -30cm lateral on coil side and 30 cm at the back. (If there is no obstacle in the other directions, then this distance can be reduced to 15 centimeters). -60cm lateral on service valve side and above. -200cm on front face.
- Page 19 ¾Technical data 080505-NIN-SQ-EN 19/24...
- Page 20 ¾Technical data 080505-NIN-SQ-EN 20/24...
- Page 21 ¾Technical data 080505-NIN-SQ-EN 21/24...
