Quick Start Guide
ColourPoint Mini
Portable Battery-Powered Uplight with
Wireless-DMX Control

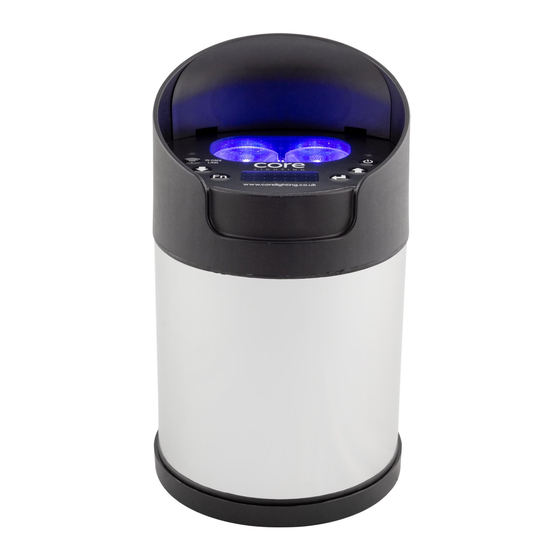

ColourPoint Mini
(with shroud -
available as an
accessory)

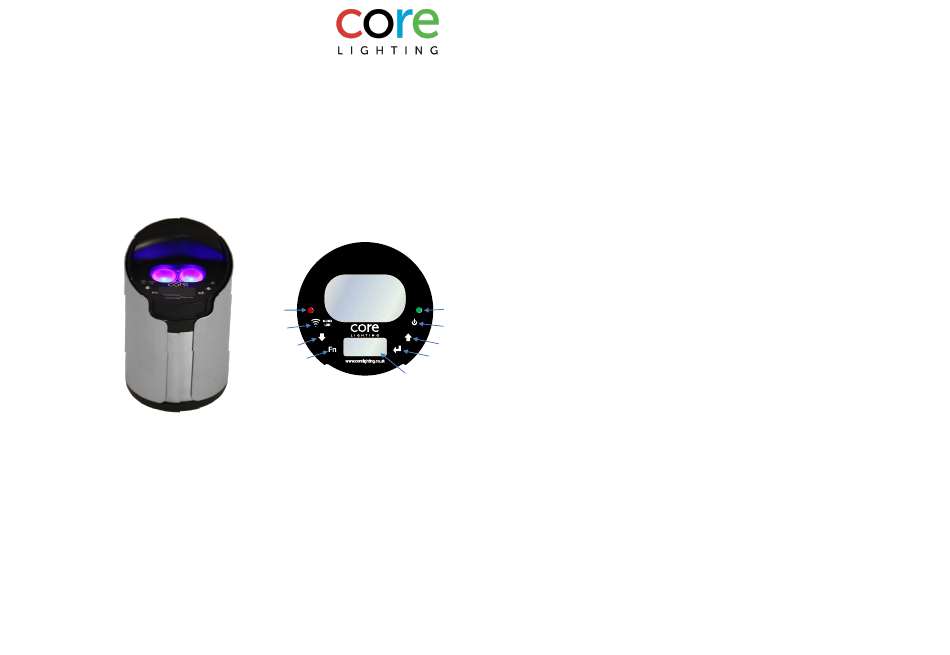

User Interface - Controls & Display
Buttons - 1 - Power On/Off
2 - Function
3 - Up Arrow Select
4 - Down Arrow Select
5 - Enter Selection
6 - W-DMX Button (Wireless DMX)
Display - 7 - Menu Screen LCD
8 - W-DMX Wireless DMX status LED
9 - Charge Status LED
Power Supply/Charger
Input 100-250V, 50-60Hz.
200W Max (for 6-way Charger); 40W Max (for single charger unit)
®
8
6
FUNCTION
4
static
2
User
7
Interface
NOTES
SWITCHES EMBOSSED 0.3- 0.5 HIGH
SELECTIVE TEXTURE APPLIED TO FRONT FACE
AS PER SUPPLIED SAMPLE.
A Long
25/11/16
PROOF
GLOSS POLYESTER
SELECTIVE TEXTURE

Operation

Charging

Units should be fully charged before first operation. This takes up to 6hrs from an empty battery.
Place units into the charging case or on the single charger unit as appropriate, and plug the charger
cable into the mains power supply.
Make sure each ColourPoint Mini unit is firmly located on the charger, shown by the illumination of
the charging LED (9). This will glow red when the battery is less than 70% charged, amber when
greater than 70% then green when fully charged.
Battery charge condition during use is shown by the battery symbol on the right side of the display

Power

Switch the unit On and Off pressing the Power Switch (1) for less than 1 second then releasing.
Changing Function
Push the Function button (2) to step through the different functions of the unit as below. Push the
Enter Button (5) to enter each menu option, then Enter to step through the sub-menus.
Adjust settings with the Up and Down arrow keys (3) and (4) and accept with the Enter button (5)
To quit without making changes, simply push the Function button (2):
User Functions
EFFECT:
9
[Built-in colour effects for creating pleasant changes to fixed ambient lighting colours]
Sub-Menus:
1
Br.Level – 0 to 100% brightness
3 Type: - R'bow1, R'bow2, Snap, Warm, Cool, Test
Speed: - 1 to 10. 1 is slowest for full cycle time (approx. 5mins), 10 fastest (approx. 12 secs)
5
STATIC:
[63 preset colours covering a wide selection for most situations]
Br.Level – 0 to 100% brightness
SELECT: - Lee 002 to Lee 795 (built-in Lee colour references)
cc 001 to cc 010 (CORE colours created as useful additional colours)
CUSTOM Colour:
[User-changeable colour settings to optimise the perfect colour palette, including mixing white with
other colours to create pastel shades of white]
Br.Level – 0 to 100% brightness
Set Col. – Red: 000 to 255
Core Lighting
Green: 000 to 255
P220904
1:1
Blue: 000 to 255
1 of 2 D620566 Iss 1
White: 000 to 255
DMX:
[Receives Wireless-DMX signal from a Wireless DMX transmitter and unit responds to transmissions.
Wireless Solutions(W-DMX) compatible. Will not work with other types of wireless DMX transmitter]
Sub-Menus:
Br.Level – 0 to 100% brightness
DMX Type – Slave. Cannot be changed in these units
Set DMX – Addr: 001 to 512. This is the DMX address of the unit.
th
5 DMX – M.Fade (5xDMX channels - RGBW & Fade) or Off (4xDMX channels – RGBW only)
