Ethernet Connection System for Harsh
Environment – Industrial Ethernet
Description
Description
RJField allows you to use an Ethernet Class D / Cat. 5e
connection for 10 BaseT,100 BaseTX or 1000 BaseT
networks in harsh environments:
• Sealed against fluids and dusts (IP67)
• Shock, Vibration and Traction resistant
• No cabling operation in field and no tools required
• Mechanical Coding / Polarization (4 positions)

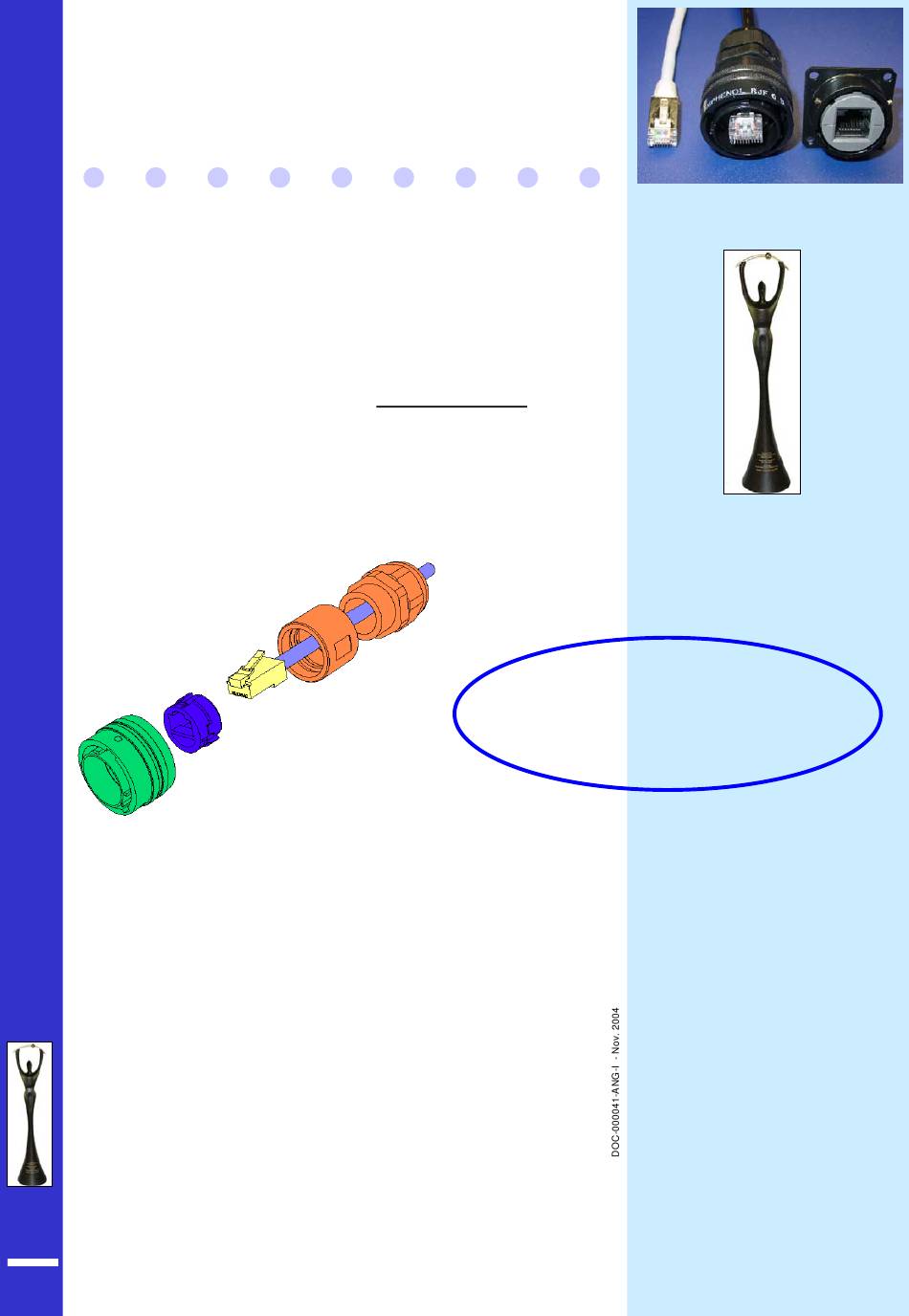

With the patented RJStop® system you can use a standard
RJ45 cordset in a metallic plug which will protect it from
shocks, dust and fluids.
No hazardous in-field cabling and grounding !
This metallic plug is connected into a receptacle, using a fast
¼ turn bayonet coupling mechanism (MIL-C-26482 type)
providing both "audible and visual" coupling.
On the receptacle, one female RJ45 is soldered onto a PCB
allowing for the following back terminations :
• another female RJ45
• a RJ45 cordset
• Solder termination
The RJ45 cordset shielding is transmitted to the RJ45
receptacle through lateral grounding fingers.
For an outstanding EMI protection, the conductive plating
versions (Ni, Cd) with metallized receptacle inserts, transmit
the shielding to the connector shells and finally to the panel.
1
Amphenol Socapex
Tel. : + 33 (0) 4 50 89 28 00 - Fax : + 33 (0) 4 50 96 29 75
http://www.rjfield.com
RJ Field
RJ Field
Promenade de l'Arve – BP 29 – 74311 THYEZ - F
RJField awarded « Component
Product of the Year »
Transform your RJ45
cordset into a Harsh
Environment Connector !
• Robotics
• Industrial Process Control
• CNC Machines
• Special Machines
• Motion Control
• Data Acquisition and
Transmission in Harsh
Environment
• Tele-maintenance
Electronica 2004 :
Applications
Applications
Amphenol
Amphenol
®
®
Advertisement
Table of Contents
Related Manuals for Amphenol RJ Field Series
Summary of Contents for Amphenol RJ Field Series
- Page 1 Amphenol ® Amphenol ® Amphenol Socapex Promenade de l’Arve – BP 29 – 74311 THYEZ - F Tel. : + 33 (0) 4 50 89 28 00 - Fax : + 33 (0) 4 50 96 29 75 http://www.rjfield.com...
- Page 2 Easy and Safe : No field cabling tools required * The RJStop® system allows the use of standard RJ45 cordsets regardless their Brand. However, Amphenol Socapex can provide Cat5-5e cordset with reinforced jacket to be used in harsh environments (shocks, oils, fuel,…). Please consult factory.
- Page 3 - Type 1 also available with 90° female RJ45 Amphenol ® Amphenol Socapex Promenade de l’Arve – BP 29 – 74311 THYEZ - F Tel. : + 33 (0) 4 50 89 28 00 - Fax : + 33 (0) 4 50 96 29 75...
- Page 4 RJ45 cordset or a cordset equiped with our RJF 6xx plug Amphenol ® Amphenol Socapex Promenade de l’Arve – BP 29 – 74311 THYEZ - F Tel. : + 33 (0) 4 50 89 28 00 - Fax : + 33 (0) 4 50 96 29 75...
