Koch TC60 User Manual

User manual

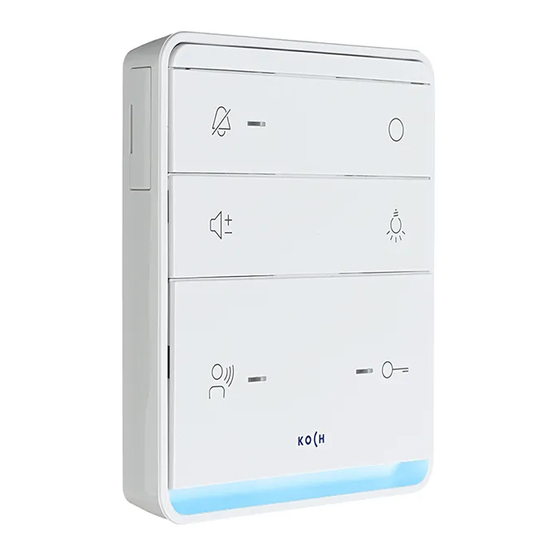

Indoor intercom station TC60
Smart-Slot*
Mute button
Red LED on =
Mute is active
Volume button
for ring tone and call
Talk button
Green LED on =
incoming call or
talking mode is active
Blue ambient lighting
*Smart-Slot = additional radio transmitter for remote radio gong

Ring tones

Ringtones sound different for calls from the entrance, the landing door or for an internal call.
The green LED lights up for 1 minute when there is a call by one of these sources.

Instructions for use

Answer a call
End a call
Unlock the door
Turn on/off the door call
Turn on the light
Control function 8
(Setup default)
René Koch AG
Seestrasse 241
8804 Au/Wädenswil
• Press the talk button briefly; you now can talk without the need for
any further action (hands-free)
• If the talk button is pressed for more than 1 sec. the unit switches to
Press-to-talk mode (useful when surrounding noise is disturbing):
press talk button > talk / release talk button > listen
• Press the talk button briefly. Talk mode also turns off automatically
after 60 sec. or 4 sec. after the unlock button has been pressed.
• Briefly press the unlock button
• Press the mute button briefly: red LED on = door call off
• Press the light button
• Press the function button
044 782 6000
044 782 6001 Fax
info@kochag.ch BA TC60 e 07.18
Function button
Microphone
Light button
Unlock button
Blue LED on =
door is opening
Speaker
