inforce 6502 Quick Start Manual

PACKAGE CONTENTS
BASE KIT
System On Module (SOM)
Carrier Board
Power Adaptor
USB-C Cable
9 8
7
10
11 12
Your use of this document is subject to and governed by those terms and conditions in the Inforce
Computing Inc. ("Agreement"). You may use this document, which shall be considered part of the defined term "Documentation" for purposes of the Agreement, solely in support of your permitted use of the Inforce 6502 under the Agreement. Distribution of this document is strictly prohibited without the express written
Inforce ® Computing is a trademark of Inforce
Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated, registered in the United States and other countries, used with permission. Qualcomm Snapdragon is a product of Qualcomm Technologies, Inc.

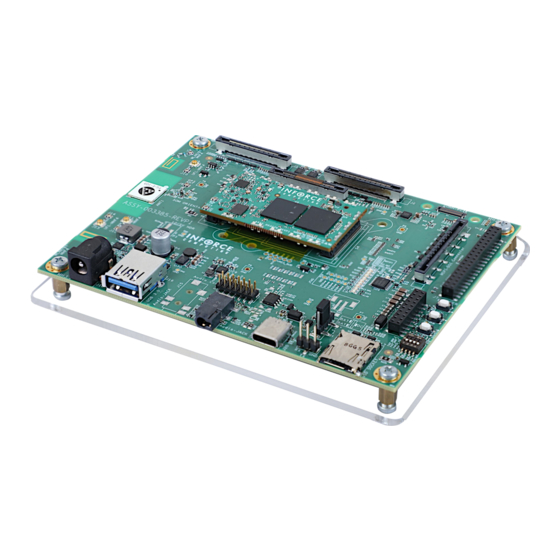

Inforce 6502™ Single Board Computer
ACCESSORIES
ACC1H70 Camera Module
ACC1B50 MIPI-DSI display
5
6
4
13 15
14
® Computing Purchase and Software License Agreement for the SDA660 based Inforce 6502, which you or the legal entity you represent, as the case may be, accepted and agreed to when purchasing a Inforce 6502from Inforce
permission of Inforce ® Computing Inc. and its respective licensors, which they can withhold, condition or delay in its sole discretion.
® Computing Inc., registered in USA and other countries. Other product and brand names used herein may be trademarks or registered trademarks of their respective owners.
This document contains technical data that may be subject to U.S. and international export, re-export, or transfer ("export") laws. Diversion contrary to U.S. and international law is strictly prohibited.
Quick Start Guide
LOCATIONS – Inforce 6502
1.Expansion Connector
10. Wi-Fi / BT PCB Antenna
2. DSI Display Connector
11. 12V DC Jack
3. Battery Header
12. USB 2.0 Type A Connector
4. LEDs
13. 3.5mm Combo Audio Jack
5. Camera 1 Connector
14. USB Type C Connector
6. IFC 6502 SOM
15. Power Option Selection Jumper
7. Camera 2 Connector
16. UART Header
8. GPS Chip Antenna
17. Micro SD Card Socket
9. Wi-Fi / BT PCB Antenna
18. Power, Vol+, Vol– Switches
19. Boot Selection Switches
2
3
1
19
16 17
18
®
