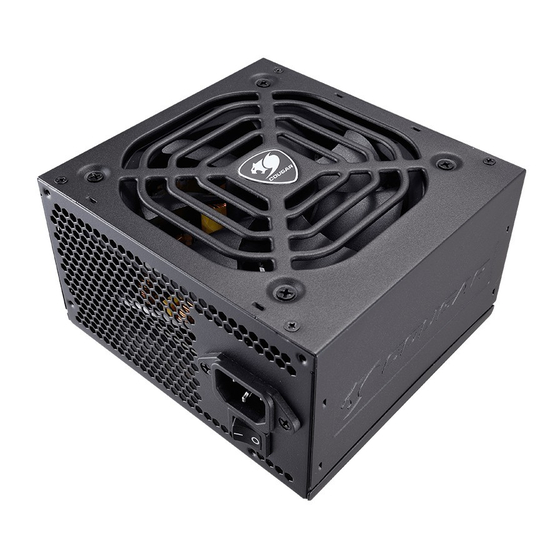

COUGAR STE Series Manual

Superior Reliability And Silent Operation
COUGAR Facebook
Specifications
Operating conditions
●
Working temperature:
+10°C ~ +40°C (Please note the de-rating condition in Warnings and safety notes)
Storage temperature:
-40°C~+70°C
Operating humidity (without condensation water):
20%~85% relative humidity
Storage humidity (without condensation water):
5%~95% relative humidity
Output power
●
Model Name AC input
+3.3V
15A
STE400
105W
15A
200-240V~
50Hz / 5A
STE500
110W
15A
STE600
110W
Connectors
●
Connector Main
24(20+4)
Pin
Pin
1
STE400
STE500 1
STE600 1
DC output
+5V +12V -12V +5Vsb
15A 30A
0.3A 2A
360W
15A 34A
0.3A 2.5A
408W
15A 46A
0.3A 2.5A
552W
CPU Peripheral S-ATA
8(4+4)
4 Pin 5 Pin
Pin
1 2 4
1 2 5
1 2 6
Introduction
Dear customer:
Thank you for choosing a COUGAR
please read the manual below carefully. If you have any questions, please contact
our customer service:
Warnings and safety notes
Never open the PSU cover. There is potential danger of life due to high voltage inside.
The PSU should only be opened by an authorized technician. The manufacture
warranty will be void, if the PSU is opened by an unauthorized person.
Do not work on the PSU or the PC as long as the main voltage is still connected.
Switch the I/O button to position "0" and disconnect the power plug from the power
network.
Protect the PSU against moisture.
The PSU is suitable for operation at 200-240V/50Hz.
The ambient temperature should not exceed 50°. Please pay attention to the power
de-rating on all models with a decrease of 1%/°C starting at an ambient temperature
of 25°C. Please ensure that there is sufficient ventilation of the entire system.
The leakage current must not exceed 3.5 mA.
Make sure during the installation of the PSU that the ventilation slots are not covered.
Do not clog the ventilation slots of the PSU. Keep your PC away from direct heat
sources such as radiators.
When using an extension cord and/or multiple sockets pay attention to the maximum
through-connection ability in order to avoid short-circuits.
If you want to clean your PSU, disconnect the power plug from the power network
and remove it from the PC case. Before the removal make sure that you are not
statically charged, (e.g. through carpets or wool sweaters).Only clean the PSU on the
outside, always using dry cloth, never water or detergent.
Trouble shooting
WARNING:
Never work on the PSU yourself. Even long time after its deactivation,
life-threatening voltages can still be present in the PSU. Repairs should only be
made by authorized specialists.
Working at power sources can lead to life-threatening injuries. If there is smoke,
cable damage or intrusion of liquids the PSU has to be immediately disconnected
from the power network and must not to be put into operation anymore afterwards.
Never open the PSU. It contains components, which can show high voltages even
after long periods of deactivation.
Again, repairs should only be done by authorized specialists!
Problem: After the installation of the new PSU the system does not start.
Possible solutions:
Check the power code and the power supply of the wall socket and/or multiple
●
socket strip. Also check whether the multiple socket strip can supply the
Total
necessary power.
400W
Check all connections within the PC; maybe not all cables are correctly connected.
●
Check the internal cable of the I/O-switch of the PC case to the mainboard.
●
Check the components for possible short-circuits or defects.
●
500W
Please also check the other components for compatibility. Often mainboard chipsets
are not compatible with all memory and/or graphics card solutions. Contact the
manufacturer of the component to get more information.
600W
If your PSU still does not function even though you have checked sources of errors
mentioned above, please get in touch with our customer service.
Advice
PCI-E
8(6+2)
This product is not to be disposed in the regular household waste and
Pin
must be brought to a collection-point for electrical and electronic devices
for recycling. The symbol to the left refers to that and can be found on the
1
product, in the manual or on the packaging. Materials can be recycled
according to their description. With the reuse, the recycling or other forms
2
of reutilization of old devices you make an important contribution to the
protection of our environment. Please inquire the appropriate location of
2
disposal from your local administration.
® power supply unit. Before the installation
