Most optimized way of mutual discussion in full
duplex between a leader and any one of parti-
cipants at a meeting while all rest members are
listening.
OPTIMIZED MUTUAL DISCUSSION
SYSTEM IN FULL DUPLEX FOR GUIDE/LEADER.
OPTIMIZED MUTUAL DISCUSSION
SYSTEM IN FULL DUPLEX FOR PARTICIPANTS.
BRAVO HE
Listen&Talk
USER MANUAL
Listen&Talk-L (HE-L)
Listen&Talk-P (HE-P)
Advertisement
Summary of Contents for Escolta BRAVO HE Series

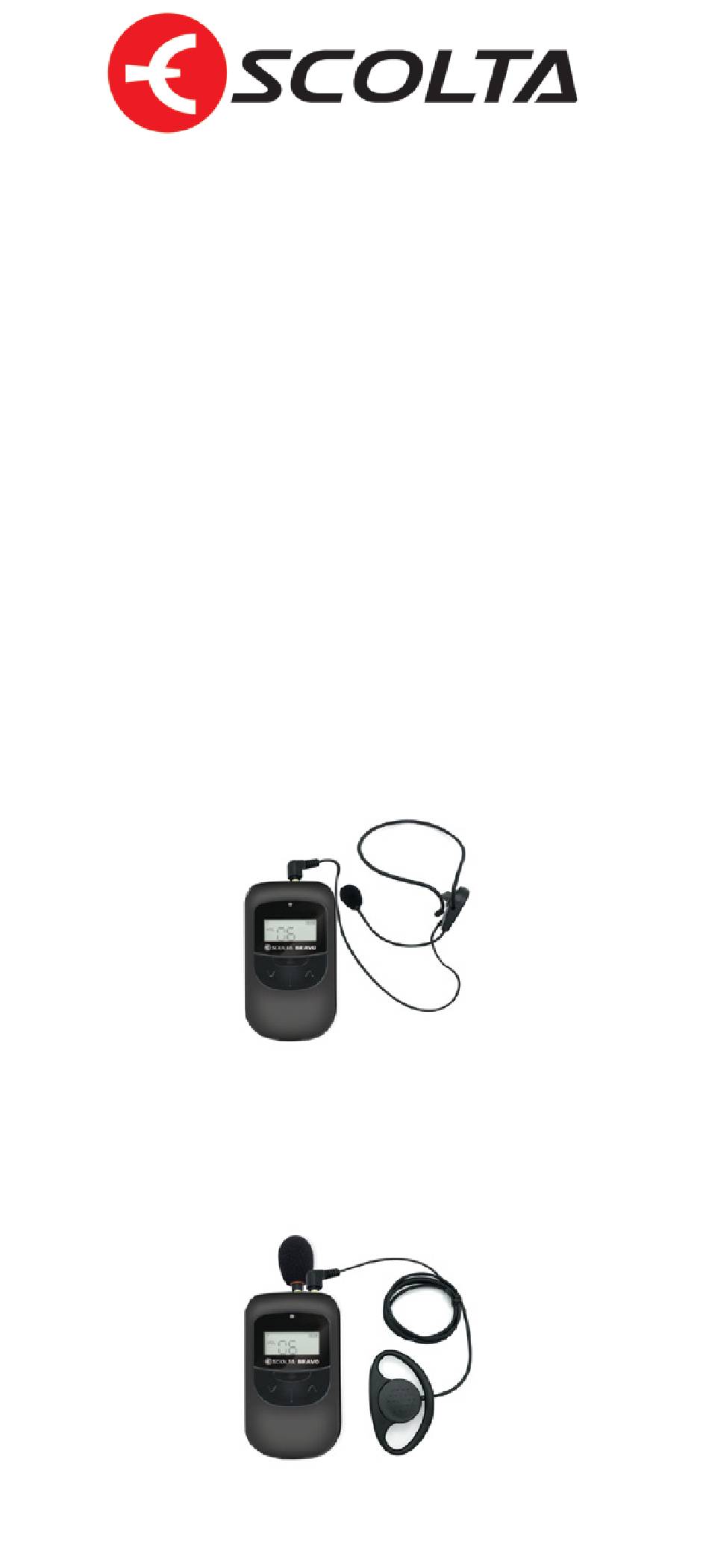

- Page 1 BRAVO HE Listen&Talk USER MANUAL Most optimized way of mutual discussion in full duplex between a leader and any one of parti- cipants at a meeting while all rest members are listening. Listen&Talk-L (HE-L) OPTIMIZED MUTUAL DISCUSSION SYSTEM IN FULL DUPLEX FOR GUIDE/LEADER. Listen&Talk-P (HE-P) OPTIMIZED MUTUAL DISCUSSION SYSTEM IN FULL DUPLEX FOR PARTICIPANTS.
-
Page 2: General Information
1. General Information 1.1 Introduction The product “Listen&Talk-L” and “Listen&Talk-P” are the most optimized way of mutual discussion in full duplex between a leader and any one of participants at a meeting while all rest members are listening. It combines quality and versatility into the most compact, simple to operate and easy to use with state of the art technology. - Page 3 • Long enough battery life over 12 hours. • Convenient drop in charge or micro USB charging system. 1.3 Available Accessories Listen&Talk-L (HE-L) • Ear set Boom Microphone • Neck strap • USB charging cable Listen&Talk-P (HE-P) • Plug In Microphone •...
- Page 4 2. Controls and Indicators 2.1 Listen&Talk-L (HE-L)
- Page 5 2.2 Listen&Talk-P (HE-P)
-
Page 6: Operation

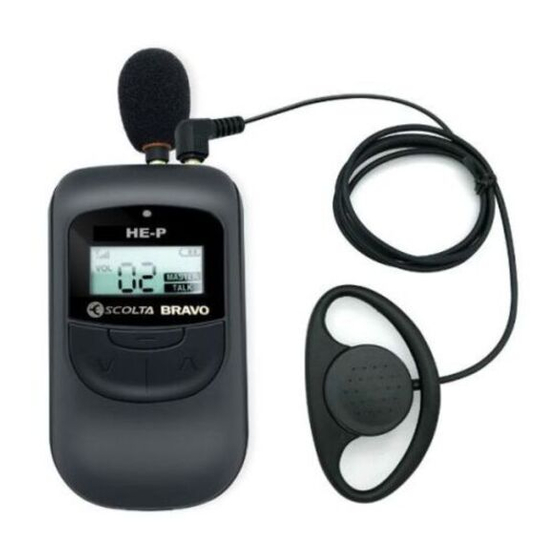

3. Operation 3.1 Power On/OFF Press and hold the “Power” button longer than 2 seconds to turn the device power on. Afterward, press and hold the “Power” button longer than 2 seconds again to turn the device power off. 3.2. Listen&Talk-L (HE-L) The transmission is starting automatically as soon as the power is turned on the device. - Page 7 3.3. Listen&Talk-P (HE-P) On the LCD, , vol 03 are displayed when the device power on. The Volume level and Group number have been set at “03” and “00” as a default. Plug the Plug Microphone into the plug and the D shape earphoneinto the jack.
- Page 8 3.4 Group selection on Listen&Talk-L and Listen&Talk-P With ‘HE-L’ y el ‘HE-P’, press and hold the button longer than 2 seconds. The “GRP” on the LCD is blinking. Choose the Group num- ber by pressing and then release all the buttons longer than 2 seconds to fix it. The blinking of “GRP”...
-
Page 9: Specifications
4. Battery The rechargeable Li-Ion battery 3.7V, 800mA is installed in each device, Listen&Talk-L and Listen&Talk-P. Plug the USB charging cable into the USB port and recharge the battery. The Red color LED in the right side top corner of device is turned on during the charging and turned o automatically when the battery is fully charged. - Page 10 Channel Spacing 500 KHz Data Rate 500 Kbps Freq. Bandwidth 500 KHz Battery Li-Ion, 3.7 V 800 mA Antenna Internal Chip Antenna Autonomía 10 hours typically Distance Range (LOS) Hasta 150 m. Frequency response 50 Hz ~ 8 kHz Maximum operation Transmitters 2 Transmitters simultaneously Dimensione 50 x 88 x 15 mm.
- Page 11 08970 San Joan Despí - Barcelona (SPAIN). Phone no.: (+34) 934 579 710 - Fax no.: (+34) 934 578 869 - www.telecomfalcon.com Product description: Equipment: 2.4 GHz Full-Duplex Intercom Brand: ESCOLTA Model: BRAVO HE-L/P Manufacturer: Falcon Radio & Accessories Supply, S.L. Made in:...
- Page 12 Waste disposal. Directive 2012/19 / EU Information on waste disposal of electrical and electronic equipment (WEEE). This symbol on the product means that the electrical and electronic products used must not be mixed with household waste. For proper treatment, recovery and recycling, take this product to designa- ted collection points where it will be accepted for free.
