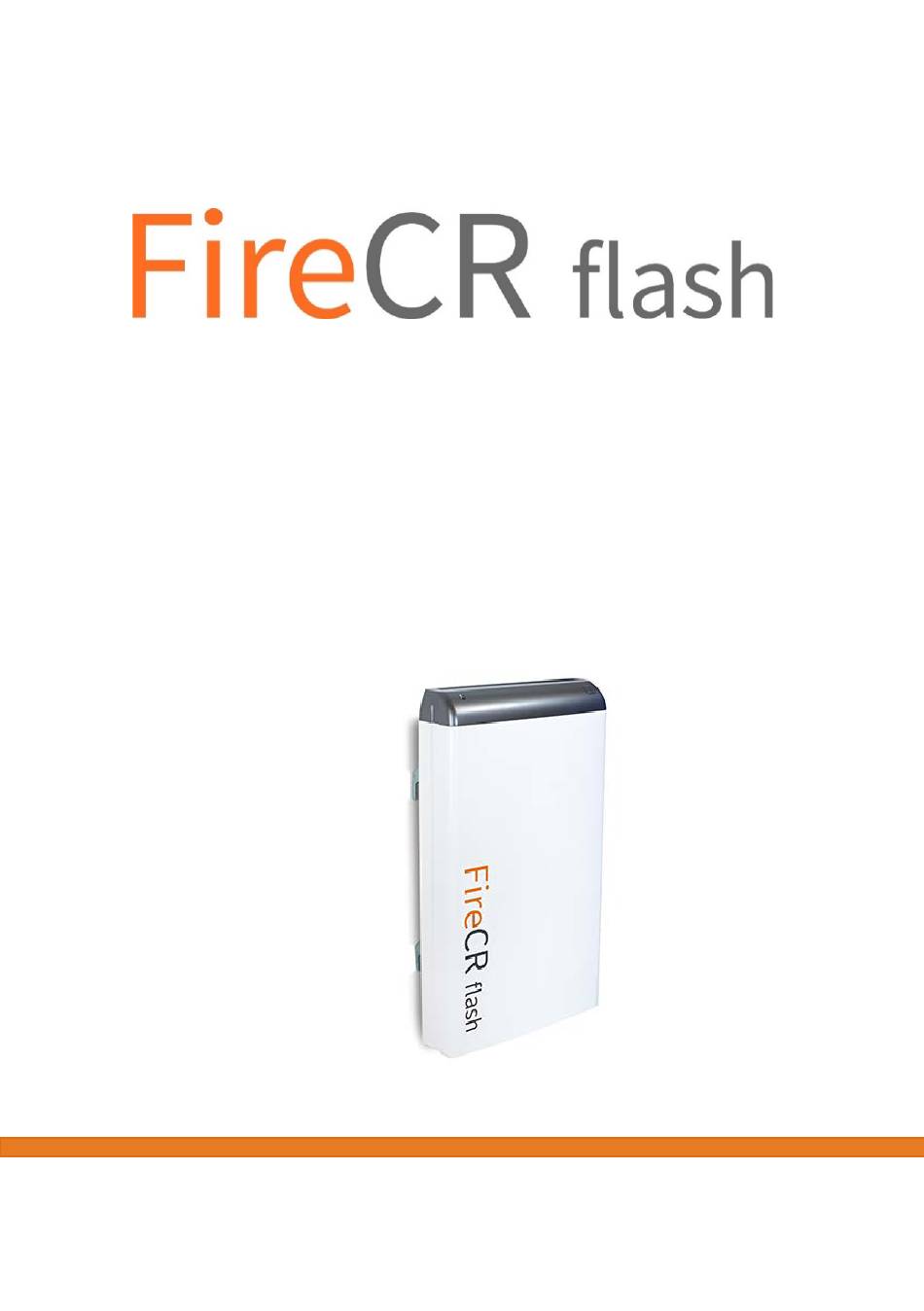

- Page 1 Installation Manual...
- Page 2 Doc No.: TM-XXX Rev: Nov 2014 Part No.: XX-XXX-XX-XXX Digiray, FireCR, FireCR Flash and Quantor are trademarks of Digiray Corp, South Korea, and its affiliates. All other trademarks are held by their respective owners and are used in an editorial fashion with no intention of infringement.
-
Page 3: Table Of Contents

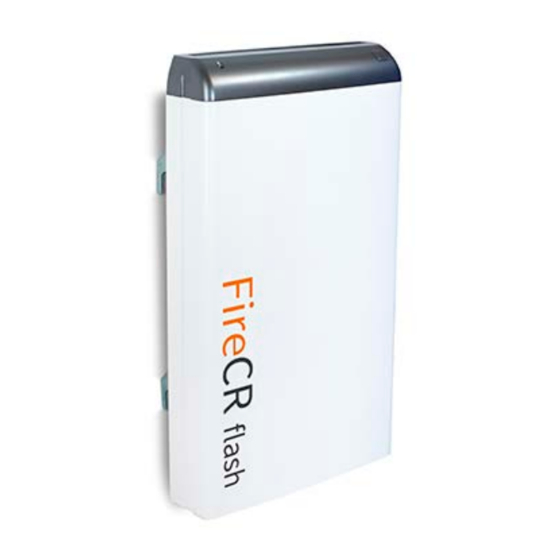

Table of contents Components ..............5 Recommended Computer Requirements ....... 6 Installation ................ 7 Software installation ..............7 Positioning ..................8 Tabletop installation ..............8 Wall mount installation ............. 9 Connections ................. 10 FireCR Flash Installation Manual... - Page 4 Dear Customer Thank you for choosing the Digiray FireCR Flash scanner as your new solution. The advanced CR technology of the FireCR Flash scanner enables you to produce high-quality digital images for diagnosing the patients in your facility. The reader can be used as a central scanner, which distributes images throughout your facility, or as an exam-room based solution.
-
Page 5: Components
Components Please ensure that the following list of components are present in the box prior to installation. Item FireCR Flash Computed Radiography Scanner FireCR Flash User Manual Power cord USB 2.0 interface cable RJ45 CAT.5E FTP Cable 2m (Cross type) -
Page 6: Recommended Computer Requirements
64 bit version) Dual core 1.5GHz or better with at least 2MB L2 cache 4GB or more Free HDD space 300GB or more Network 100Mbps Ethernet or faster adaptor USB connection Version 2.0 High speed FireCR Flash Installation Manual... -
Page 7: Installation
Installation Software installation Before connecting the FireCR Flash reader, please ensure that the imaging software is installed on your computer, connecting the reader prior to the software installation may cause the USB hub to allocate a wrong driver making the installation more difficult. –if this happens, remove the wrong driver manually and connect the reader after the software is installed. -
Page 8: Positioning
50 cm (20”) of free space to the rear and 20 cm (8”) of free space on the front to allow access for imaging plate insertion as illustrated below and adjust the feet underneath to ensure stability. 20 cm (8”) 50 cm (20”) FireCR Flash Installation Manual... -
Page 9: Wall Mount Installation
77 cm (30 5/16”) from the floor. Ensure that there is at least 50 cm (20”) of free space above the scanner. 50 cm (20”) 77 cm (30 5/16”) 20 cm (8”) FireCR Flash Installation Manual... -
Page 10: Connections
The first time the scanner is connected to your software it synchronize calibration data which may take a few minutes, once this is finished you will be ready to scan images. For wall mounted units, select wall mount in the IP calibration menu under settings. FireCR Flash Installation Manual... - Page 11 Go to the Device Calibration menu under options and select auto alignment to allow the laser to position itself after transport. Close the calibration window using the cancel button, and the system is now ready for use. FireCR Flash Installation Manual...
- Page 12 Digiray Corp. #825, Unitech Venture Town, 142, Ilsan-ro, Ilsandong-gu,Goyang-si, Gyeonggi-do, 10442 Republic of Korea Tel : +82-31-932-8401 Fax : +82-31-927-9988 E-mail : sales1@digiray.co.kr FireCR Flash Installation Manual...
