⌧ CPU-NXT Board (A-006182-xx)
PARTS
⌧ NXT Software & EPROMs
AND
⌧ ESD wrist strap
⌧ ESD mat
TOOLS
NEEDED
WMS Gaming Inc. is introducing a new upgrade to the
electronic hardware and software for the Upright (55x) and
Slant Top (36x) models. WMS designed and built a
custom electronic circuit board, CPU-NXT
board mates with the existing cabinet backplanes and
support most existing peripherals, such as the coin
acceptor, bill acceptor, and coin hopper.
The CPU-NXT board also supports the original
complement of existing I/O such as lamps, player panel
buttons, bell, knocker, and key switches.
The NXT upgrade approach allows games currently in the
field to utilize the new hardware and software, which offers
casino operators the opportunity to enhance an existing
product without having to incur the cost of a new game.
This document details the installation of the NXT
Operating System on the Upright (55x) and Slant Top
(36x) models, which utilize the new CPU-NXT board.
The EMI In-Line Power Filter Kit (A-010368) must also be
installed to utilize CPU-NXT. For installation instructions,
reference 16-010367-01 Installing the EMI In-Line Power
Filter Kit.
Part Number Information
WMS Part Number
A-006182-xx
vary by theme, version,
coin mechanism, game
denomination, and
jurisdiction
Trademark Notice: NXT
TM
16-009323-03 Installing CPU-NXT (A-006182-xx)
Ins s talling C C PU-N N X X T ( ( A-0 0 06182 2 )
. The CPU
TM
Description
CPU-NXT Board
RAM Clear CF Card
NXT OS and Game CF Card
Boot EPROM
Jurisdictional ID Chip
and CPU-NXT
are registered trademarks of WMS Gaming, Inc.
TM
I
NSTALLATION
BULLETIN #: 16-009323-03
LOCAL CUSTOMER SERVICE (800) 378-7741
MODEL(S) AFFECTED
UNIT AFFECTED
THEME
ESTIMATED TIME
Overview
A
B
C
TM
07-01-2003
B
ULLETIN
WWW.WMSGAMING.COM
Software/CPU
20 min. per game
L
K
D
E
F

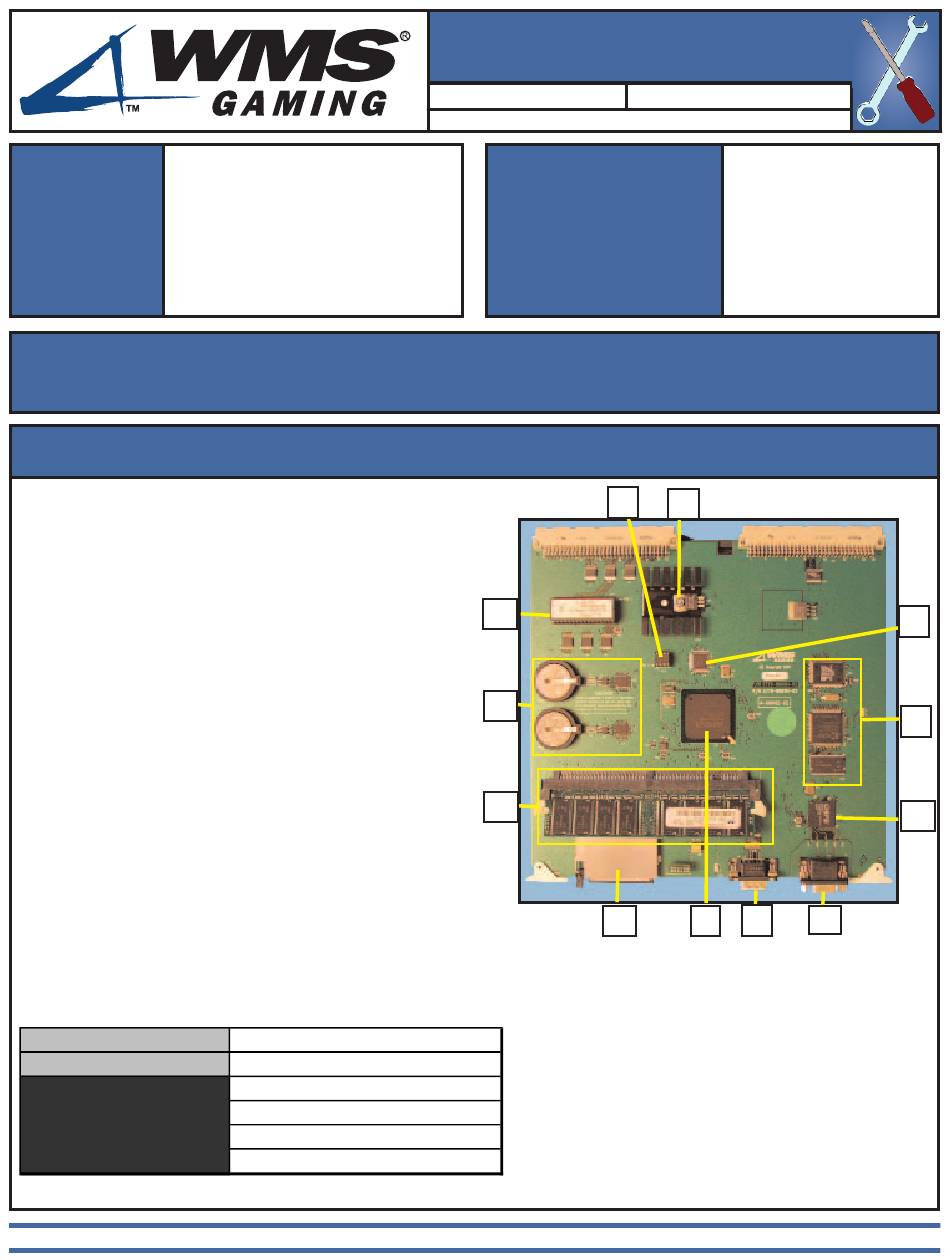

CPU-NXT board.
A - Boot EPROM
B - Battery-backed SRAM subsystem
C - SDRAM
D - CompactFlash
®
(CF) drive
E - AMD Elan SC 520 CPU
F - Serial port
G -Video port
H -Video controller
I - Audio subsystem
J - Custom Logic Device
K - Power supply
L - Jurisdictional EPROM
WMS Gaming
55x, 36x
N/A
J
I
H
G
1 of 7
