SpeechWare SpeechMatic Setting Up

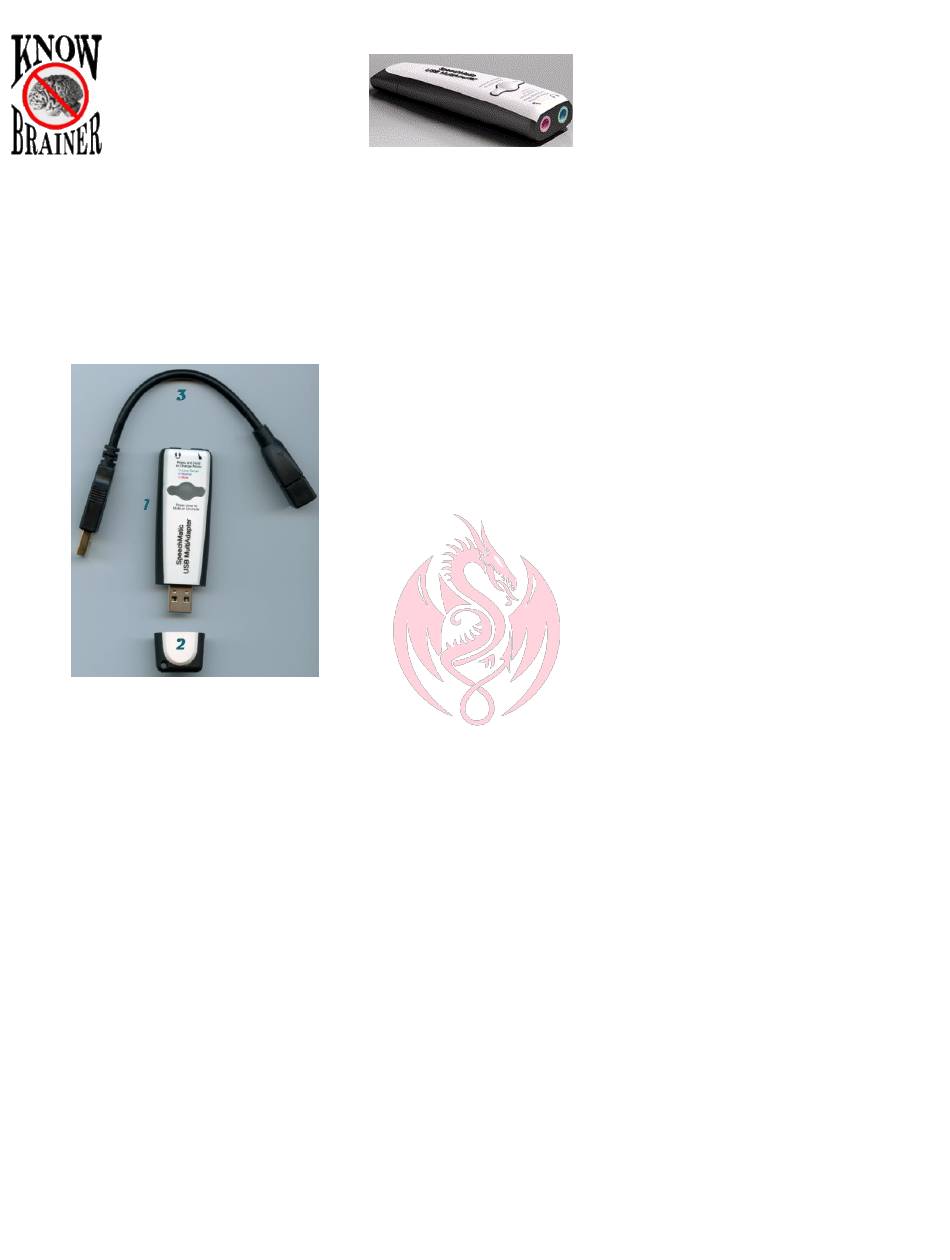

1. Remove items numbers 1 – 3 from the packaging. Item #3 (the extension cable) is included to prevent the MultiAdapter
(USB soundcard) from blocking an adjacent USB port but is not required.
2. Insert your analog microphone into the pink microphone input jack on #1. Note that the microphone input jack includes a
microphone symbol to prevent possible confusion.
3. Insert #1 into #3 (extension cable) if you don't want to block an adjacent USB computer port. You can optionally leave the
extension cable out if you don't need it. Plug your MultiAdapter USB soundcard into a dedicated USB port. Note that if
you're using a desktop computer we do not recommend using a front or side port because they are split from the rear
ports. We additionally don't recommend using a USB splitter. If possible, use a dedicated rear desktop computer USB
port. Note that this isn't an issue with notebook, all-in-one and tablet computers which only utilize direct USB ports.
4. When inserting into a USB port, waking up your computer from hibernation or booting up your computer the power
button will turn green
control/auto EQ etc.). A push of the button will
approximately 3 seconds will trigger the
blue light mode is designed for overly sensitive microphones and VoIP use.

MuliAdapter Guide

Setting up your SpeechWare MultiAdapter:
to signify that is receiving power in
mute
blue light mode which turns the unit on but bypasses all internal features. The
green light mode, with all built-in features (auto gain
the MultiAdapter soundcard. Holding down the power button for
1
