Вячеслав
May 20, 2025

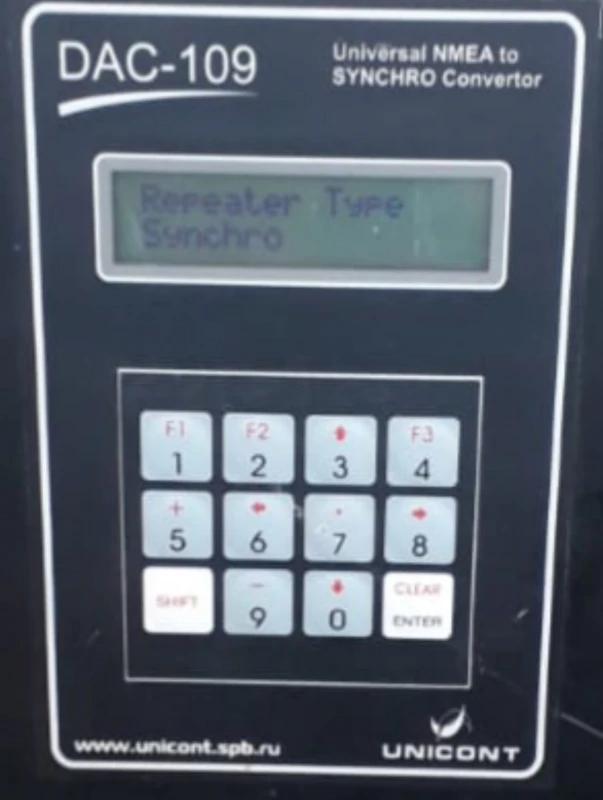

Что означает ошибка
Repeater type synchro
1 comments:
Mr. Anderson
May 24, 2025
The error "Repeater type synchro" for the MSA DAC-109 likely refers to issues with the connected synchro-type repeater. Possible causes include:
- Wrong settings of reference and phase voltages of the synchro (selsyn), causing nonuniform or jerky rotation. - Malfunctioning connections, such as loose or oxidized terminals, poor soldering, or damaged cables. - Mechanical malfunctions in the repeater. - Incorrect or missing initial position data for analog repeaters.
To resolve it, ensure correct voltage settings, check all connections, and verify initial position data is entered.
Operating manual TABLE OF CONTENTS INTRODUCTION ......................... 3 DESCRIPTION AND OPERATION OF THE PRODUCT ..........4 Description ..........................4 Main technical specifications ....................4 Description and operation of the Product ................6 Measurement instruments, tools and appliances ..............7 Marking and sealing ......................8 Packaging ..........................
This operating manual (hereinafter referred to as OM) is intended to describe the structure, operating principles, technical specifications and service of Course Translator DAC-109 (hereinafter referred to as the Product, the DAC). In addition to the instructions given in this document, the safety regulations and rules applicable in the field shall be observed.
Operating manual DESCRIPTION AND OPERATION OF THE PRODUCT ESCRIPTION The Product converts digital heading data received in NMEA format into syn- chrosignals required to control analog repeaters and other selsyn-based equipment. The DAC may be used as a digital repeater to display the current heading data. AIN TECHNICAL SPECIFICATIONS 1.2.1 Technical specifications of the Product are represented in Table 1.
Page 6
Course Translator DAC-109 Parameter Value Operating specifications Operating temperature, °C –15…+55 Limiting temperature, °C –60…+70 IP rating IP22 The range of power supply voltage is represented in brackets. Electric voltage relative to which another voltage is counted. 1.2.2 Additional units may be connected to the Product. Technical specifica- tions of the units are represented in Tables 2–4.
Operating manual ESCRIPTION AND OPERATION OF THE RODUCT 1.3.1 Description The Product receives digital heading value from NMEA 0183 signal sources and converts it into output sine-wave voltage in order to connect selsyn-receiver windings. Herewith the amplitude of oscillations is set up in such a way that the selsyn-receiver will take a position according to the received digital heading value.
Course Translator DAC-109 1.3.2 Controls and indication LEDs The Product is produced in a metal casing, where LCD, keyboard, piano type switch (ON / OFF), controls and LEDs are located, see Figure 2. For the description of the controls and LEDs, see Table 5.
Operating manual Table 6 – Amount of the consumables required for the TS Note Name and identifier of consumables Amount of consumables To clean contamination from the Cleaning cloth 0.10 kg surfaces 1 To clean severe contamination from the surfaces Rectified hydrolytic technical ethyl alcohol 0.01 l 2 To clean surfaces of the Product...
Course Translator DAC-109 USAGE OF THE PRODUCT 2.1 O PERATIONAL CONSTRAINTS The Product shall have a reliable grounding; all cables shall be insulated. The Product’s installation shall be provided in accordance with overall and instal- lation dimensions. Select the installation site in compliance with operational constraints (operating tem- perature and protection code –...
Page 11
Operating manual 2.2.3 Switching the Product on While connecting the DAC and preparing it for operation follow the steps below: a) select a place to install the Product (on a vertical bulkhead or mounting panel) and prepare mounting holes according to the overall dimensions, see Annex A; b) lead connection cables from the external devices and power supply unit.
Course Translator DAC-109 IN_18-32V RELAY_NO CH_Switch IN_1 (NMEA) IN_2 (NMEA) REMOTE_OUT REMOTE_IN U ref U fase B(0) A(+) B(0) A(+) B(0) A(+) B(0) A(+) Main Backup Alarm Unit NMEA NMEA Remote Control Terminal Switching (AU-106) Positive Source Source Unit Fuse...
Page 13
Operating manual Figure 6 – Terminals blocks P12 and P21 Caution! While delivering the Product the wires are disconnected from the terminal block (P12)! Example – a user needs to energize synchro-type repeater, excitation voltage 100 V and max. sync 50 V. Select a connection diagram (P12) and (P21) from Table 7.
Page 14
Course Translator DAC-109 – maximum voltage a) using menu set the value of 90% 100V × 100% = 90.9%; 110V b) calculate the repeater’s max. sync voltage likewise and using the menu set the value of 65%: × 100% = 66.7%.
Page 15
Operating manual Diagram of jumper settings in the terminal blocks Output voltage Ref. 75~110 V AC Phase 35~75 V AC Ref. 0~35 V AC Phase 75~110 V AC Ref. 35~75 V AC Phase 75~110 V AC Ref. 75~110 V AC Phase 75~110 V AC Table 8 –...
Page 16
Course Translator DAC-109 2.3.2 Operation mode of the Product Once the power is supplied, the DAC transfers to operation mode. In this mode LCD displays 2 heading values: a) received heading value from NMEA signal source (e.g., digital gyrocompass); b) current heading value on the analog signal receivers (e.g., repeaters connected to the DAC).
Page 17
Operating manual Frequency Choice Frequency selection of output sine wave analog signal. Frequencies to select: 50 Hz, 500 Hz. Ratio Choice Selection of ratio between ship turn and selsyn rotation of analog receiver. Ratios to set: 1:36, 1:60, 1:90, 1:180, 1:240, 1:360. Channel Select A user can select the main channel to receive heading data in digital NMEA 0183 sentences.
Page 18
Course Translator DAC-109 Backup Channel If the data are absent on the main channel, the Product switches to the backup channel. If the backup NMEA signal source is not connected, set the parameter to «Off». Values to be selected: On, Off.
Page 19
Operating manual Table 10 – Possible malfunctions and indication of the Product’s operation status RELAYoutput Malfunction Sample of indicator status Sound alarm* contacts Initial position of ana- log repeaters is not en- Closed 0.2/1 tered Data are absent on the Closed 0.2/1 main channel...
Page 20
Course Translator DAC-109 If NMEA heading data are not received on the backup channel, the display shows the following (see Figure 11). Figure 11 – Display of no heading data If data reception is restored on the main channel, sound alarm deactivates and the Product switches to the main channel.
Page 21
Operating manual press [F1] in the operation mode; enter an initial position of analog repeaters. To delete entered value – press [SHIFT] and [CLEAR] (each press of [CLEAR] deletes one last symbol), to exit mode of deletion – press again [SHIFT]; to save the entered value, press [ENTER].
Page 22
Course Translator DAC-109 2.3.7 Debugging and diagnostics tools 2.3.7.1 Imitation of digital gyrocompass To facilitate debugging of the Product and connected repeaters it ensures the spe- cial mode of digital gyrocompass imitation. In this mode the Product ignores the heading data being received from NMEA 0183 signal sources and processes heading data which a user enters using the keyboard.
Operating manual To switch on the mode, press [F1]; to switch it off (in case it was switched before) – press [F2]. Caution! Switch off the imitation mode of the ship’s circulation turn after a de- bugging! To exit the mode of output channels’ status, press any button. TECHNICAL SERVICE OF THE PRODUCT 3.1 G ENERAL DESCRIPTION...
Course Translator DAC-109 Table 12 – Check list № 1. Visual check of the Product Man-hours To be done Routine 1 Product 1 check completeness and appearance of the Product; me- chanical damage, paint defects must be absent; marking plates shall be present; legends are to be read easily...
Operating manual CURRENT REPAIR OF THE PRODUCT ENERAL DESCRIPTION The Product’s operability is controlled by the backlight of по подсветки клавиш- ного переключателя «ON / OFF» and LCD. To provide diagnostics of the problems and defects, use information in Table 14. Please contact the Manufacturer’s service centre in case of other defects, which cannot be traced.
Page 26
Course Translator DAC-109 Malfunction Possible reasons To be done Repeater’s compass card Wrong settings of reference and Set the relevant voltage of selsyn is rotating nonuniformly phase voltages of selsyn rotation rotation (jerky) Display shows black Display’s contrast ratio is set too...
Operating manual STORAGE The units must be stored in packaging inside areas complying with the required storage conditions (+ 5…+ 40 °С) with the concentration of dust, oil, moisture and ag- gressive impurities in the air within the required limits for the working areas of production facilities.
Course Translator DAC-109 TRANSPORTATION The Product must be transported in the Manufacturer's transportation package in closed means of transport. Types of shipment: motor vehicle and railroad transportation in closed means of transport (covered cars, multipurpose containers); air transportation (in sealed and heated compartments);...
Operating manual DISPOSAL New equipment, the parts of the Product damaged during operation, and any over- age equipment must not be disposed as standard household wastes, since they contain the materials suitable for re-use. Decommissioned and non-used components of the Product must be delivered to a special waste disposal center licensed by local authorities.
Need help?
Do you have a question about the DAC-109 and is the answer not in the manual?
Questions and answers
Что означает ошибка Repeater type synchro
The error "Repeater type synchro" for the MSA DAC-109 likely refers to issues with the connected synchro-type repeater. Possible causes include:
- Wrong settings of reference and phase voltages of the synchro (selsyn), causing nonuniform or jerky rotation.
- Malfunctioning connections, such as loose or oxidized terminals, poor soldering, or damaged cables.
- Mechanical malfunctions in the repeater.
- Incorrect or missing initial position data for analog repeaters.
To resolve it, ensure correct voltage settings, check all connections, and verify initial position data is entered.
