861 Quick Start Guide
This guide helps you install and use your 861 for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box

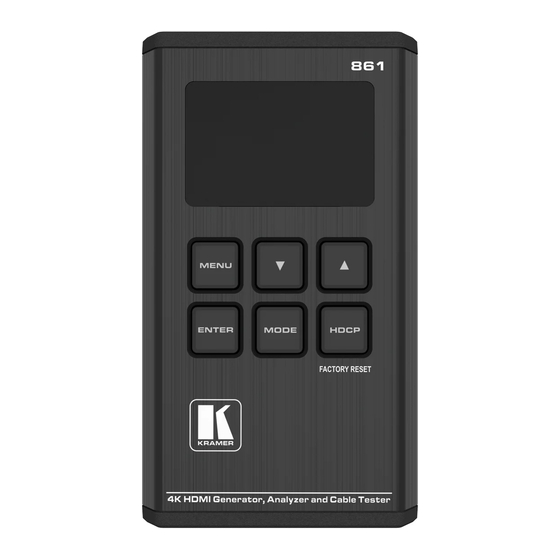

861 4K HDMI Generator, Analyzer and Cable Tester
1 C-HM/HM/PICO/BK-3 HDMI cable

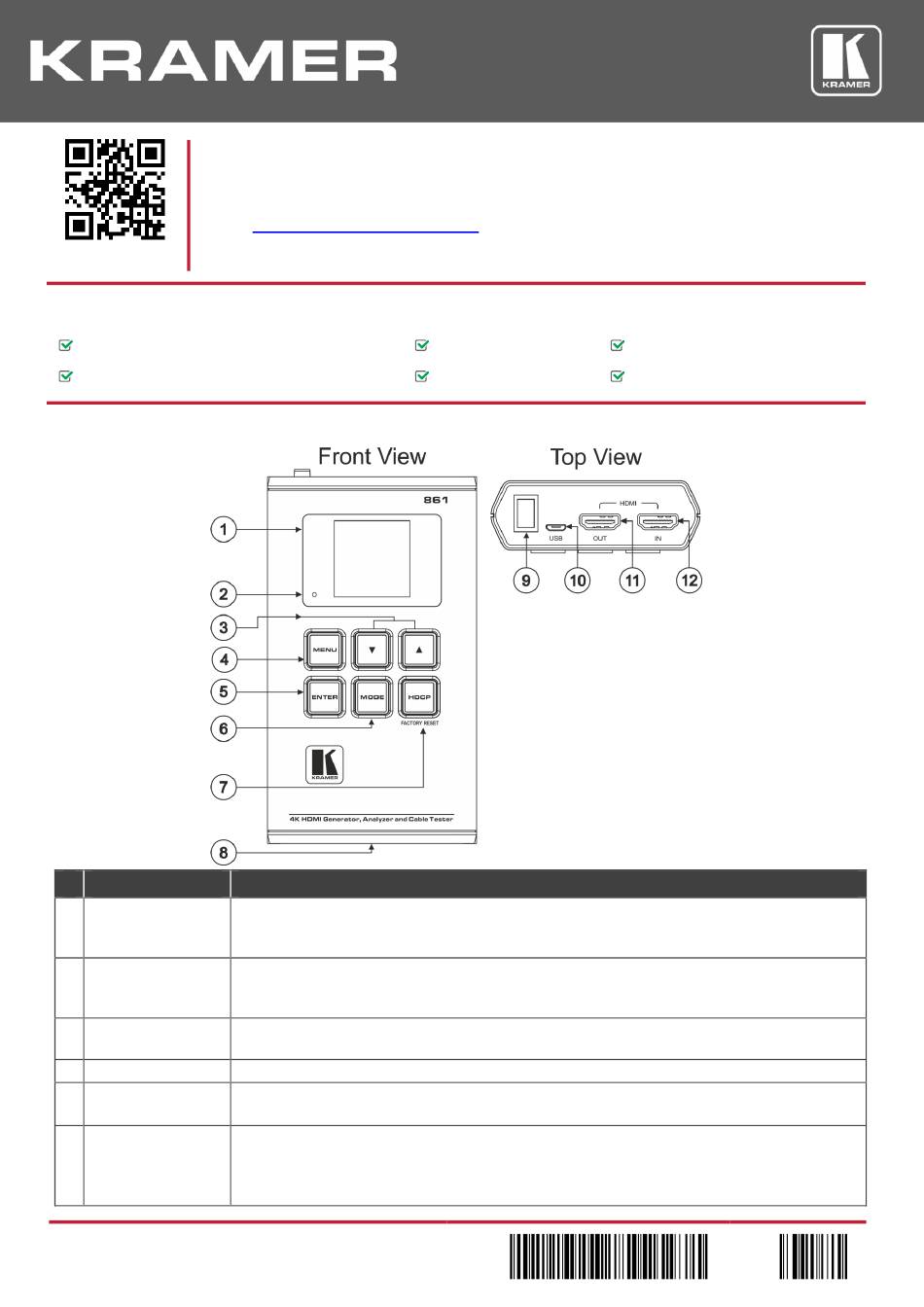

Step 2: Get to know your Product
# Feature
1 OLED Display
2 Battery Charging
LED
3 Up and Down Arrow
Buttons
4 MENU Button
5 ENTER Button
6 MODE Button
861 Quick Start (P/N: 2900-300960QS REV 2)
www.kramerav.com/downloads/861
Function
Displays the selected function of the current operation mode. The status lines at the top show the
current operational mode (Analyzer, Pattern, or Cable Test), USB port mode (power or control),
power status, and mode-specific detection details. The menu or signal analysis data appears below.
Lights red when a USB power source is connected and is charging the battery. When device is not in
use for a while, LED slowly flashes red to indicate that the device entered the power saving mode
(when not receiving power via USB). Press any key to turn the display back on.
Press to move up and down or adjust selections within menus.
Press to exit to previous menu steps and to return to the main menu screen.
Press to confirm a selection or go to the next menu level.
In the Analyzer and Pattern modes, press and hold for about 2 seconds to turn the audio on or off.
Press to switch between Analyzer mode, Pattern mode, and Cable Test mode.
In the Analyzer mode, press and hold for about 2 seconds to toggle the input's hot plug trigger.
In the Pattern mode, press and hold for about 2 seconds to enable or disable the output's AV Mute
function.
to download the latest user manual and check if firmware
1 Belt pouch for the 861
1 Quick start guide
P/N:
2 9 0 0 - 3 0 0 9 6 0 Q S
1 Lithium battery
1 USB mirco-B to USB type-A cable
Rev:
2
