TOJOIN GNSS Signal Repeater Kit
GNSS-1000B (60.01.001.0010)

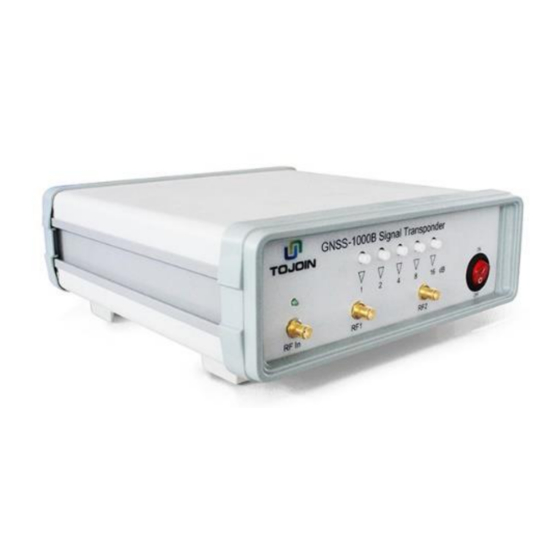

GNSS-1000B
GNSS Signal Repeater is designed to receive outdoor GNSS
satellite signals and then re-radiate them into indoor workplace or covered
space where the satellite signals cannot reach directly for testing GNSS
products indoor to lower the outdoor test costs, or keeping a GNSS device's
positioning function running all time to avoid the so-called cold start time delay
issue for quick emergency action services.
Different from the GNSS-101, GNSS-1000B has two signal output ports. It can
send received GNSS signal to two transmitting antennas to double the
coverage area.
Different from the GNSS-1000, GNSS-1000B has an additional output signal
attenuation function. The signal attenuation range is step by step from 0 to
31dB. This function is very helpful for testing receiver's signal sensitivity.
_____________________________________________________________________________
Geoidsoft Inc. - Mobile GPS Online
3151 Strandherd Drive, P. O. Box 45535, Ottawa, ON K2J 0P9 Canada
https://www.mobilegpsonline.com
e-mail:
sales@mobilegpsonline.com
Tel.: 613-8230926
Advertisement
Related Manuals for Geoidsoft MOBILE GPS ONLINE TOJOIN GNSS-1000B
Summary of Contents for Geoidsoft MOBILE GPS ONLINE TOJOIN GNSS-1000B
- Page 1 The signal attenuation range is step by step from 0 to 31dB. This function is very helpful for testing receiver’s signal sensitivity. _____________________________________________________________________________ Geoidsoft Inc. - Mobile GPS Online 3151 Strandherd Drive, P. O. Box 45535, Ottawa, ON K2J 0P9 Canada https://www.mobilegpsonline.com e-mail: sales@mobilegpsonline.com...
- Page 2 GNSS Repair Service • GNSS Signal Reception in Underground Garage such as Tunnels and • Mines etc. Geoidsoft Inc. - Mobile GPS Online 3151 Strandherd Drive, P. O. Box 45535, Ottawa, ON K2J 0P9 Canada https://www.mobilegpsonline.com e-mail: sales@mobilegpsonline.com Tel.: 613-8230926...
- Page 3 Fix the indoor cable 3DFB along the ceiling of the operation room(s) and mount the two transmitting antennas on the ceiling or crossbeam above the center of the testing benches or workplaces. Geoidsoft Inc. - Mobile GPS Online 3151 Strandherd Drive, P. O. Box 45535, Ottawa, ON K2J 0P9 Canada https://www.mobilegpsonline.com e-mail: sales@mobilegpsonline.com...
- Page 4 Note: The inside transmitting antenna has to be located/mounted inside the building with adequate isolation from the outdoor (outside) antenna to avoid interference. Geoidsoft Inc. - Mobile GPS Online 3151 Strandherd Drive, P. O. Box 45535, Ottawa, ON K2J 0P9 Canada https://www.mobilegpsonline.com e-mail: sales@mobilegpsonline.com...
- Page 5 Operating voltage 3.3～5.0V Working current 23mA Connector type N-Female Dimension Φ100mm×77mm Working temperature -45°C～+70°C Storage temperature -55°C～+85°C Geoidsoft Inc. - Mobile GPS Online 3151 Strandherd Drive, P. O. Box 45535, Ottawa, ON K2J 0P9 Canada https://www.mobilegpsonline.com e-mail: sales@mobilegpsonline.com Tel.: 613-8230926...
- Page 6 -45°C～+70°C Storage temperature -55°C～+85°C Working humidity 0～95% Wind resistance 60m/s（max.） Installation mode Screw fixation Weight 0.5 Kg Geoidsoft Inc. - Mobile GPS Online 3151 Strandherd Drive, P. O. Box 45535, Ottawa, ON K2J 0P9 Canada https://www.mobilegpsonline.com e-mail: sales@mobilegpsonline.com Tel.: 613-8230926...
- Page 7 7. 1 x AC to DC 12V power supply 8. 1 x Mounting accessories package 9. 1 x User manual (English version) Geoidsoft Inc. - Mobile GPS Online 3151 Strandherd Drive, P. O. Box 45535, Ottawa, ON K2J 0P9 Canada https://www.mobilegpsonline.com e-mail: sales@mobilegpsonline.com...
