Production induction ..................LED Light ......................Nintendo Switch Charging ................Output via HDMI connector in TV mode ........... Device charging and video output .............. Connect to Nintendo Switch accessories ..........Connect to headsets by Bluetooth ............. Pairing with second headset ..............

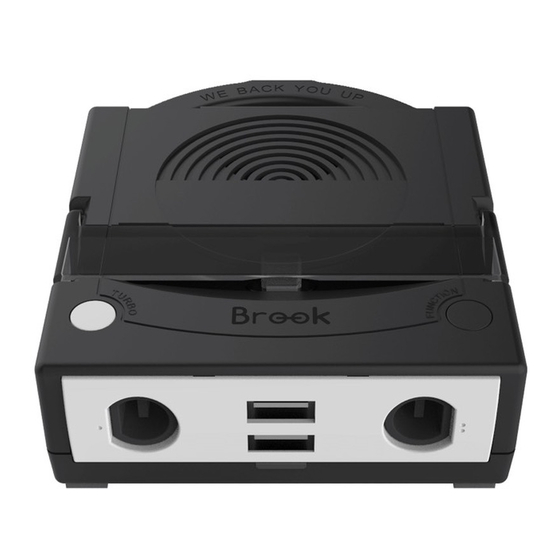

HDMI output USB Type C Charging Socket Cooling Plinth (Power Input) Turbo Function Button Game Cube Controller Slot Bluetooth/HDMI USB Type A Switch Button (Accessory Insert) Power-Bay is a quick-charging dock for Nintendo Switch. Besides supporting Nintendo Switch accessories, it can also be connected with two headsets by Bluetooth and two wired Game Cube controllers..
Nintendo Switch Charging Make sure Power-Bay is plugged in and dock Nintendo Switch console in the charging dock. Output via HDMI connector in TV mode Connect Power-Bay with HD TV via HDMI. When the connection is successful, it will HDMI automatically switch to video output via HDMI.
Connect to headsets by Bluetooth 1.Make sure Power-Bay is turned on with blue LED light. 2.Press the Bluetooth/HDMI switch button for 3 seconds then switch to Bluetooth pairing mode. It will flash purple LED light when the mode is switched. 3.Pairing with headsets by Bluetooth.
Use Game Cube controllers Connect Game Cube controllers to the ports on Power-Bay to use it. ●Switch the input mode of Game Cube controller The default controller input setting of Power-Bay is "Switch Pro Input Mode". When using the GameCube controller, you can switch to "GameCube Input Mode" manually. Make sure that you have not pressed any button on the GameCube controller, then press the "Turbo Function Button"...
●Button Configuration Game Cube Switch GameCube Mode Controller Controller (Smash Bros.) DPad-UP DPad-UP DPad-UP Dpad-Down Dpad-Down Dpad-Down DPad-Left DPad-Left DPad-Left Dpad-Right Dpad-Right Dpad-Right No Function No Function No Function No Function No Function L Key down LTSB No Function R Key down RTSB No Function Start/Pause...
Other ●Firmware update Update via a PC: Long press the turbo setting button and connect to a PC with USB cable to switch to the firmware update mode. https://www.brookaccessory.com/download/Switch/ ●More product information https://www.brookaccessory.com/detail/46552968/ ●Bluetooth Codec Support aptX / aptX Low Latency / MP3 / AAC / SBC ●Bluetooth Profile Support HFP 1.6 / A2DP 1.3.1 / AVRCP 1.6 / HOGP 1.0 / FMP 1.0 / PXP 1.0 / BAS 1.0 / TPS 1.1...
●Notice M/N: ZPP0059 P/N: Power Bay FCC serial number and notice FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the follow- ing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Switch 本体 HDMI 出力端子 USB Type C 接続端子 (外部電源用) 放熱スタンド 連射機能 設定ボタン Game Cube コントローラー 接続端子 USB Type A Bluetooth/HDMI (周辺機器用) 切り替えボタン Power-BayはNintendo Switch専用の高速充電スタンドです。通常のSwitch周辺機器 の使用に加え、Bluetoothで2つのヘッドセットに同時接続、2つのGame Cube コントローラーの接続をサポートします。 本製品はプラグアンドプレイに対応しており、HDMI信号ケーブルを接続すると自 動で画面をHDMI出力に切り替えます。また接続を解除するとSwitchディスプレイ に切り替えることができます。 Power Bay Crimsonなどの一部のモデルは、Bluetooth機能をサポートしていません。 ライト ライト 状態 ライトが点灯していない Power-Bay オフ 青いライトが点灯 Power-Bayオン、HDMI音声出力 Power-Bayオン、Bluetooth音声出力...
Game Cubeコントローラーの使用 Game Cubeコントローラーを、Power-BayのGame Cube コントローラー接続端子に差し込みご使用ください。 ●Game Cubeコントローラーの入力モードを切り替える Power-Bayのコントローラー入力デフォルト設定は「Switch Pro入力モード」です。 GameCubeコントローラーを使用する場合、手動で「GameCube入力モード」に切り 替えることができます。 GameCube コントローラーのどのボタンも押していないこと を確認してから、Power-Bayの「連射機能設定ボタン」)を 5 秒間押して入力モード設 定を切り替えます。「連射機能設定ボタン」をもう一度5秒間押し続けると、再び 「Switch Pro入力モード」に切り替わります。 ●Game Cube連射機能/ボタンの連射機能の設定と解除 Game Cubeコントローラー上には連射機能を設定できる10個のボタンがあります (X、Y、A、B、L、ZL、Left Thumb Stick Button、R、ZR、Right Thumb Stick Button) 。以下の手順に従い設定と解除を行ってください: 1. コントローラー上の連射機能を設定するボタンを長押しします(例:A) 2. 次にPower-Bay本体の連射機能設定ボタンを押してください。...
Page 22
●ボタン配置表 Game Cube Switch GameCube Mode Controller Controller (Smash Bros.) DPad-UP DPad-UP DPad-UP Dpad-Down Dpad-Down Dpad-Down DPad-Left DPad-Left DPad-Left Dpad-Right Dpad-Right Dpad-Right No Function No Function No Function No Function No Function L Key down LTSB No Function R Key down RTSB No Function Start/Pause...
HDMI 출력 USB 타입 C 충전 소켓 냉각 플린스 (전원 입력) 터보 기능 버튼 게임 큐브 컨트롤러 슬롯 Bluetooth/HDMI USB 타입 A 전환 버튼 (액세서리 삽입) Power-Bay는 Nintendo Switch용 신속 충전 도크입니다. Nintendo Switch 액세서리를 지원하는 것 외에, Bluetooth를 이용해 헤드셋 2개, 유선 Game Cube 컨트롤러...
Nintendo Switch 충전 Power-Bay의 전원 플러그가 올바로 연결되어 있는지 확인하고 Nintendo Switch 콘솔을 충전 도크에 끼웁니다. TV 모드에서 HDMI 커넥터를 통해 출력 HDMI를 통해 Power-Bay를 HD TV에 연결합니다. 성공적으로 연결되면 자동으로 HDMI 동영상 출력 HDMI 모드로 전환됩니다. Device 휴대전화 충전 및 동영상 출력 DisplayPort Alt Mode(DP Alt Mode)에서...
Bluetooth 헤드셋 연결 1.Power-Bay의 전원이 켜져 있고 청색 LED 등이 켜져 있는지 확인합니다. 2.Bluetooth/HDMI 전환 버튼을 3초간 눌러 Bluetooth 페어링 모드로 전환합니다. 모드 전환이 완료되면 LED 등이 보라색으로 깜박입니다. 3.헤드셋의 Bluetooth 페어링을 실시합니다. 첫 번째 헤드셋이 성공적으로 페어링되면 계속해서 두 번째 헤드셋...
Game Cube 컨트롤러 Game Cube 컨트롤러를 Power-Bay 포트에 연결해 사용합니다. ●Game Cube 컨트롤러의 입력 모드 전환 Power-Bay의 기본 컨트롤러 입력 설정은 "Switch Pro 입력 모드"입니다. GameCube 컨트롤러를 사용할 때 수동으로 "GameCube 입력 모드"로 전환 할 수 있습니다. GameCube 컨트롤러에서 아무 버튼도 누르지 않았는지 확인한 다음 Power-Bay의 "터보 기능 버튼"을 5 초 동안...
●버튼 구성 Game Cube Switch GameCube Mode Controller Controller (Smash Bros.) DPad-UP DPad-UP DPad-UP Dpad-Down Dpad-Down Dpad-Down DPad-Left DPad-Left DPad-Left Dpad-Right Dpad-Right Dpad-Right No Function No Function No Function No Function No Function L Key down LTSB No Function R Key down RTSB No Function Start/Pause...
기타 ●펌웨어 업데이트 PC로 업데이트: 터보 설정 버튼을 길게 누르고 PC를 USB 케이블로 연결해 펌웨어 업데이트 모드로 전환합니다. https://www.brookaccessory.com/download/Switch/ ●추가 제품 정보 https://www.brookaccessory.com/detail/46552968/ ●Bluetooth 코덱 지원 aptX / aptX Low Latency / MP3 / AAC / SBC ●Bluetooth 프로필 지원 HFP 1.6 / A2DP 1.3.1 / AVRCP 1.6 / HOGP 1.0 / FMP 1.0 / PXP 1.0 / BAS 1.0 / TPS 1.1 ●주의...
