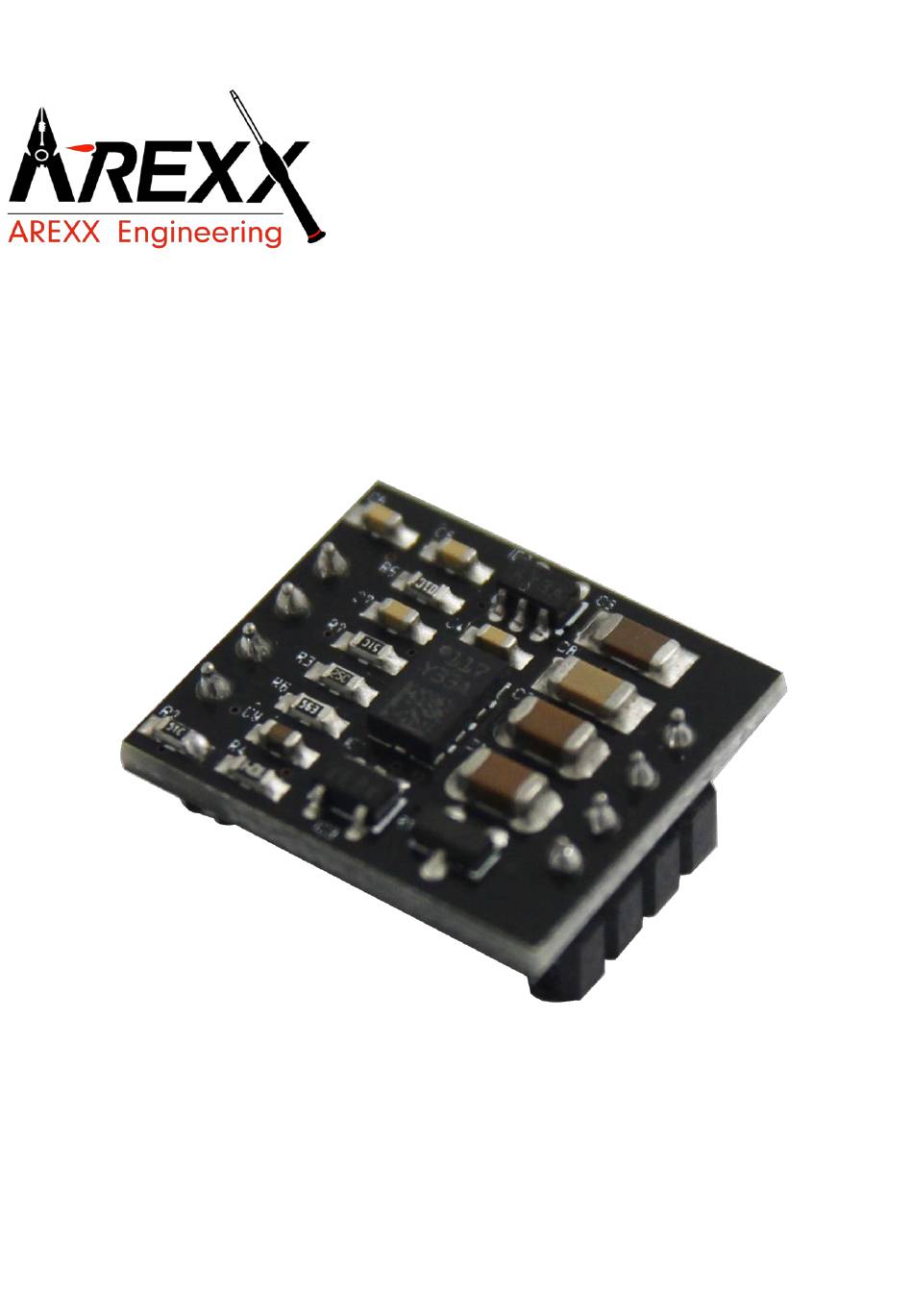

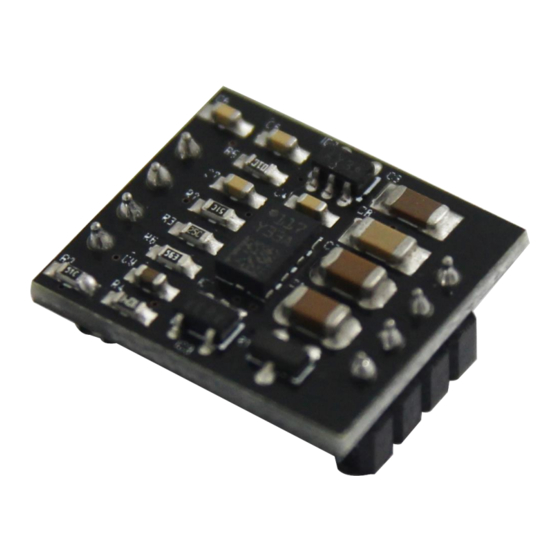

- Page 1 JM3-GYRO JM3 GYRO MODULE For AREXX Robots JM3 GYRO MODULE ©2013 AREXX Engineering and JM3 Engineering www.arexx.com...
- Page 2 Information about limited warranty and responsibility The warranty granted by AREXX Engineering is limited to the replacement or repair of the Module and its accessories within the legal warranty period if the default has arisen from production errors such as mechanical damage or missing or wrong assembly of electronic components except for all components that are connected via plugs/sockets.
- Page 3 Safety recommendations IMPORTANT: Prior to using this robot arm for the first time, please read this manual thoroughly up to the end! They explain the correct use and inform you about potential dangers! Moreover they contain important information that might not be obvious for all users. - Check the polarity of the batteries or power supply.
- Page 4 RP6 Gyro Module (Yaw) Introduction The Gyro module converts rotations around the yaw axis and converts it to an analog output signal. This allows you e.g. to detect that the robot is turning into the commanded direction. Slippage can be measured depending on the software implemented on the motion controller.
- Page 5 Circuit Diagram GYRO MODULE Functional description refer to Datasheet LY330ALH.PDF see CD...
- Page 6 GYRO PCB LAYOUT...
