Battery Backup Unit (BBU) —
Installation & Maintenance Manual Continued
Initial Assembly and Battery Installation
3.3

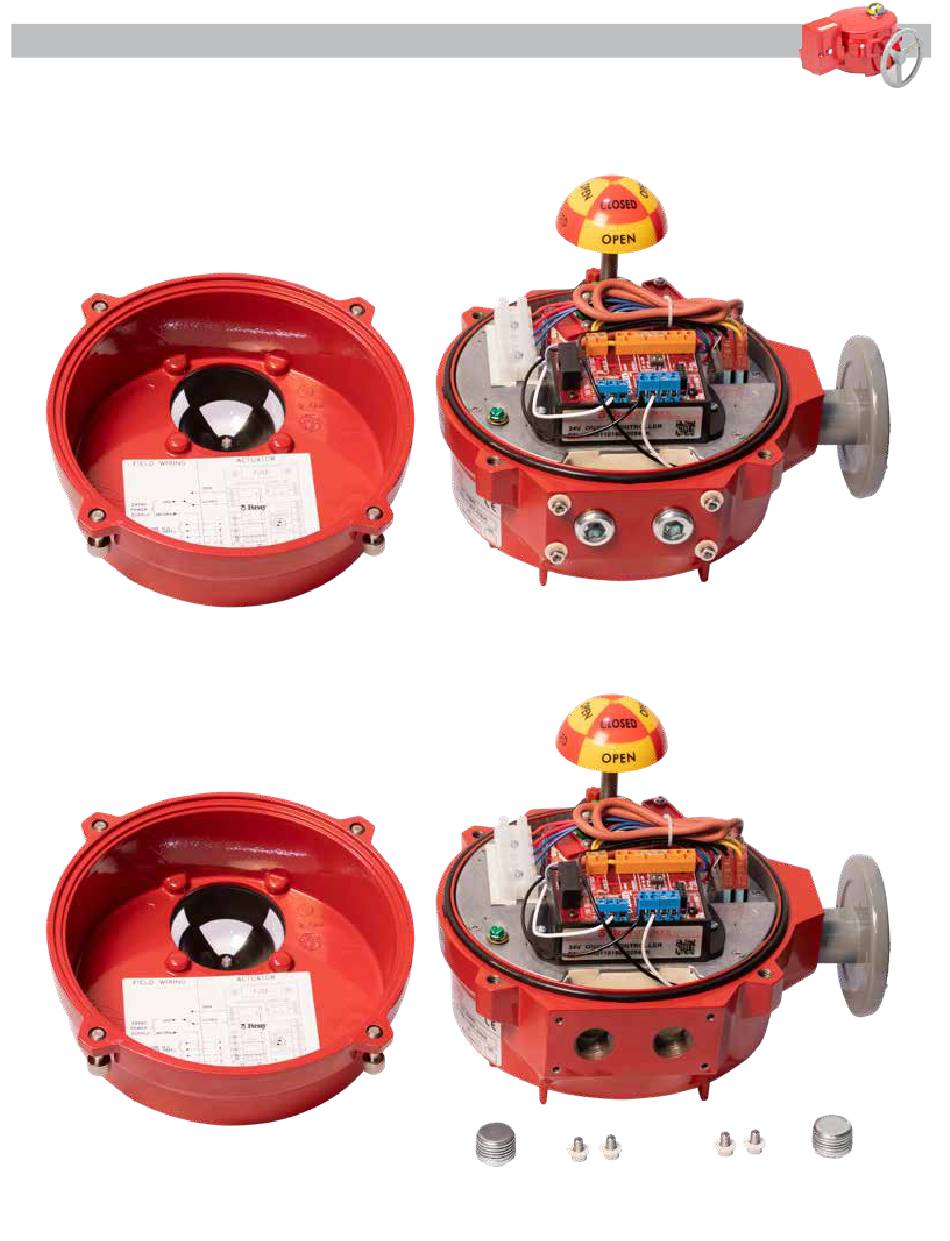

Remove lid of the actuator minding the lid to body O-Ring.
[Figure
2].
Figure 2
3.4
Remove four (4) BBU actuator mounting bolts and two (2) conduit plugs from side of S70 actuator
[Figure
3].
Figure 3
9
