Summary of Contents for CVW SWIFT Z

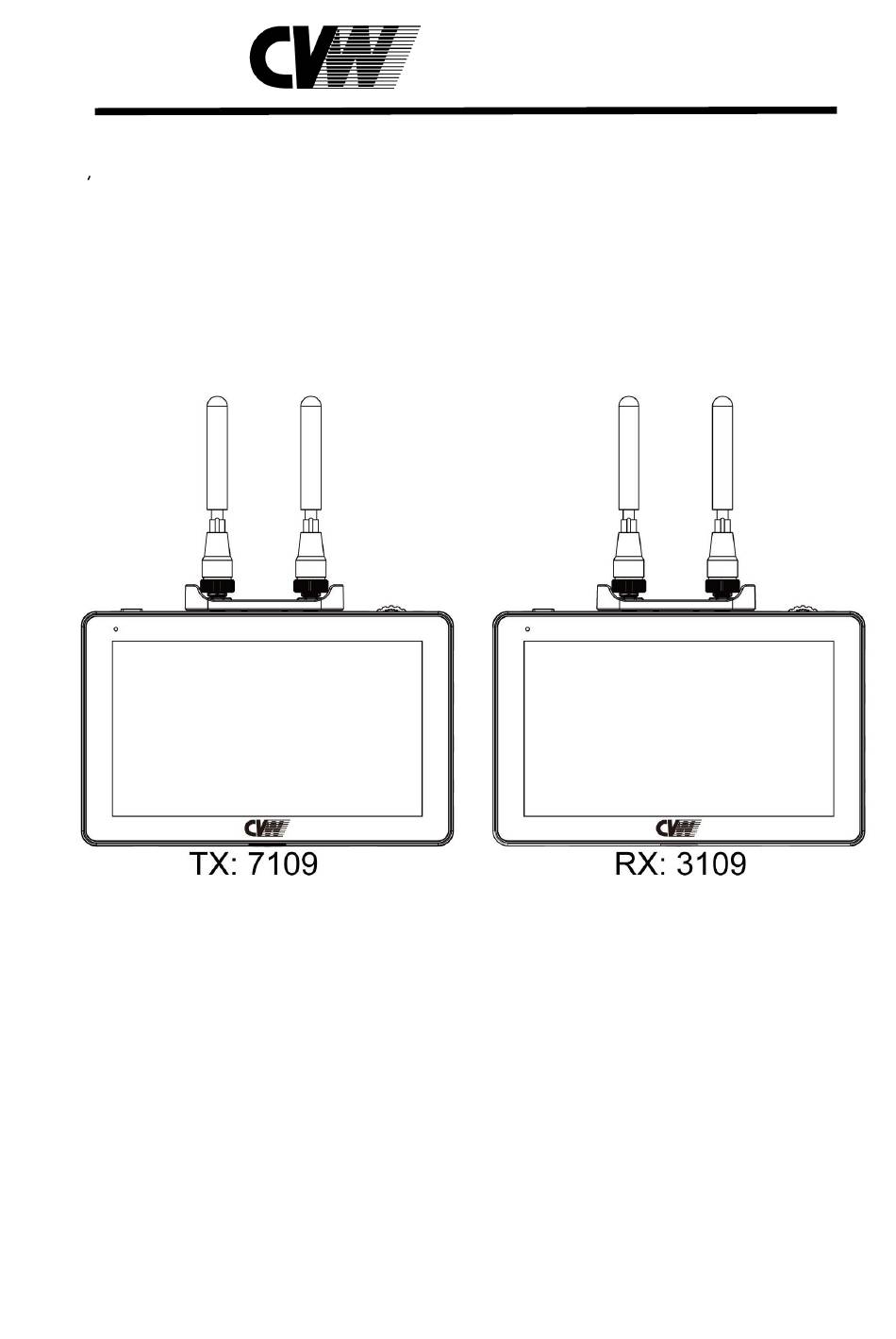

- Page 1 SWIFT Z 5.5″ Wireless Monitor HDMI/3D LUT/HDR User Manual...
- Page 2 Product Overview Thank you for purchasing our wireless video monitor. The product is a set of touch-screen monitors with a built-in wireless receiver and a built-in wireless transmitter, respectively. The highest resolution of wireless transmission is 1080P/60Hz, using 2*2dBi antenna technology and H.264 encoding and decoding technology for professional image processing, clearer image and lower delay.
- Page 3 CAUTION ● This product should not be exposed dripping or splashing. ● Please place the wireless monitor on a flat with hard and stable surface. ● In order to reduce the risk of electric shock of fire, please do not expose the receiver/ transmitter to rain or moisture.
- Page 4 Special Notice ● The impact of radio waves (such as the following environment may cause the abnormal audio and video (blocked image, noise...etc.). 1) Transmit near the wall which is hard for the radio waves to get through. 2) Quite close to the refrigerator, metal fitment and appliances, or net to the crowded situation.
- Page 5 ● Both the transmitter (TX) and receiver (RX) support HDMI IN and HDMI OUT interface (same screen display). ●Support the opening and closing function of the wireless transmission module, which can be used as a monitor alone or as an integrated wireless monitor. ●...
-
Page 6: Table Of Contents
CONTENTS 1. Product Description ----------------------------------------- 6 1.1 Button Instruction --------------------------------------------- 7 1.2 Port Instruction (bottom) ------------------------------------ 7 1.3 Port Instruction (right) --------------------------------------- 8 1.4 Power Supply Way ------------------------------------------- 9 1.5 Mount Points --------------------------------------------------- 9 1.6 Sunshade ------------------------------------------------------ 10 2. Menu Operation Instruction ------------------------------ 11 3. -
Page 7: Product Description
1. Product Description ⚫ Front Panel ⚫ Back Panel... -
Page 8: Button Instruction
1.1 Button Instruction : Long press to turn on and off the power; short press to turn on and off the screen touch function MENU: Long press to open the main menu and short press to open the shortcut menu. Rotate the wheel to select a menu item, press it again to open the corresponding menu function. -
Page 9: Port Instruction (Right)
Barrel output for powering your camera with a separately available DC coupler via adaptor (NP-FW50 Sony & LP-E6 Canon&DMW-BLF19 Panasonic). More adapters coming soon. 1.3 Port Instruction (Right) TX: Transmitter RX: Receiver HDMI IN: 1.4, HDMI signal input HDMI OUT: 1.4, HDMI signal output DC IN 12V: DC power input, polarity as the input power : 3.5mm earphone port output... -
Page 10: Power Supply Way
1.4 Power Supply Way (1) The rear cover of the monitor is equipped with F970 dual battery plates, which is applicable to F970 series of batteries. ● Sony F970 battery plate for battery of Sony DV: Sony F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 QM91D QM91 QM90D QM90 QM71D QM71 QM70D QM70 QM51D QM51 FM71 FM70 series ●Battery switching instruction... -
Page 11: Sunshade
1.6 Sunshade ① Sunshade ② Sunshade Frame ③ Fixed Frame ④ Sunshade Application First lock the Sunshade Frame ②with the monitor tight ③. Open the sunshade ①, and match the sticker on the sunshade inside to the marked part of the sunshade frame ②, smooth and press 3 sides on the sunshade, and then complete the sunshade installation ④. -
Page 12: Menu Operation Instruction
2. Menu Operation Instruction After the monitor is properly connected to the power supply, the indicator light is on (red). Press button to turn on the monitor power. The indicator light turns yellow. After inputting the HDMI signal, the indicator light turns from yellow to green. After startup, short press to select to turn the screen touch function on or off. - Page 13 ①． Double-click on the screen to open the main menu (on the left side of the screen) and click on the corresponding menu to display the secondary menu. You can enter the corresponding function option to select or set with the "<" or ">" key of the option. Exit the menu and press key of the main menu or click the touch screen.
- Page 14 (2) Menu Operation of MENU Wheel ①．When the menu is not displayed, directly rotate the wheel to backlight or brightness adjustment. The wheel option can be set to backlight or brightness in the menu ②． Long press the MENU wheel to open the main menu (on the left side of the screen).
-
Page 15: Menu Function Instruction
3. Menu Function Instruction ⚫ OFF, ON All Waves OFF, RGB, YUV, Y Parada OFF, ON Vector OFF, ON Histogram OFF, ON Focus Assist The focus level and focus color items are displayed after the focus assist is turned on. Focus Level 1～10 Focus Color... - Page 16 Nine Grid OFF, ON OFF, 70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, Safety Marker 1.85:1, 2.35:1 Center Marker OFF, ON OFF, 16:9, 16:10, 4:3, 1.85:1, 2.35:1 Marker Mat The Marker Mat Alpha item is displayed after the Marker Mat is turned on. Marker Mat Alpha 0%, 25%, 50%, 75% Marker Color yellow, red, green, blue, white, black...
- Page 17 ⚫ OFF, HLG 2020, HLG 709, HLG P3 OFF, ON Lut Switch The Lut item is displayed after the Lut Switch is turned on. SLOG2, SLOG3, LOGC, VLOG After copying the 3D LUT file to the U disk and inserting it into the Type-C to USB connector, you Lut Import can click the “<”...
- Page 18 ⚫ Backlight, Volume After selecting the wheel option, you can click the “<” or “>” button in the wheel option, or rotate the Wheel wheel to select one of the shortcut keys to set it to the rotary wheel adjustment (when the menu is not displayed).
-
Page 19: Technical Parameters
⚫ Exit the menu 4.Technical Parameters 5.5” touch screen Panel Size 1920 × 1080 pixels Resolution 5.1～5.9(GHz) Frequency Audio Format 70ms System Latency Video Compression H.264 Format 250m/800ft (open environment) Transmission 2dBi x 2 Distance Antenna Mode 0.0639 (H) × 0.0213 (W) mm Dot Pitch 400PPI Pixel Density... - Page 20 DC OUT 8V, Barrel (5.5mm outer, 2.1mm inner; Power Power Out DSLR or mirrorless camera) Wireless Transmission Opening 480P,576I,576P,720P60/59.94/50,1080I50/59.94/60 1080p23.98/24/25/29.97/30/50/59.97/60 HDMI Input/ Output Wireless Transmission Closing Support Format 480P,576I,576P,720P60/59.94/50,1080I50/59.94/60 1080p23.98/24/25/29.97/30/50/59.97/60 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz) DCI 4K 4096×2160p (24Hz) 7～24V Power Input Voltage ≦18W Power Consumption 148Lx93Hx20W (mm)
-
Page 21: Trouble Shooting
5. Trouble Shooting Only black and white or monochrome image ① please check saturation, brightness & contrast adjustment. ② Please check "Monochrome" is in black, white or monochrome image or other condition. NO Image after power on ① Check if signal cable connecting is in good condition. ②...
