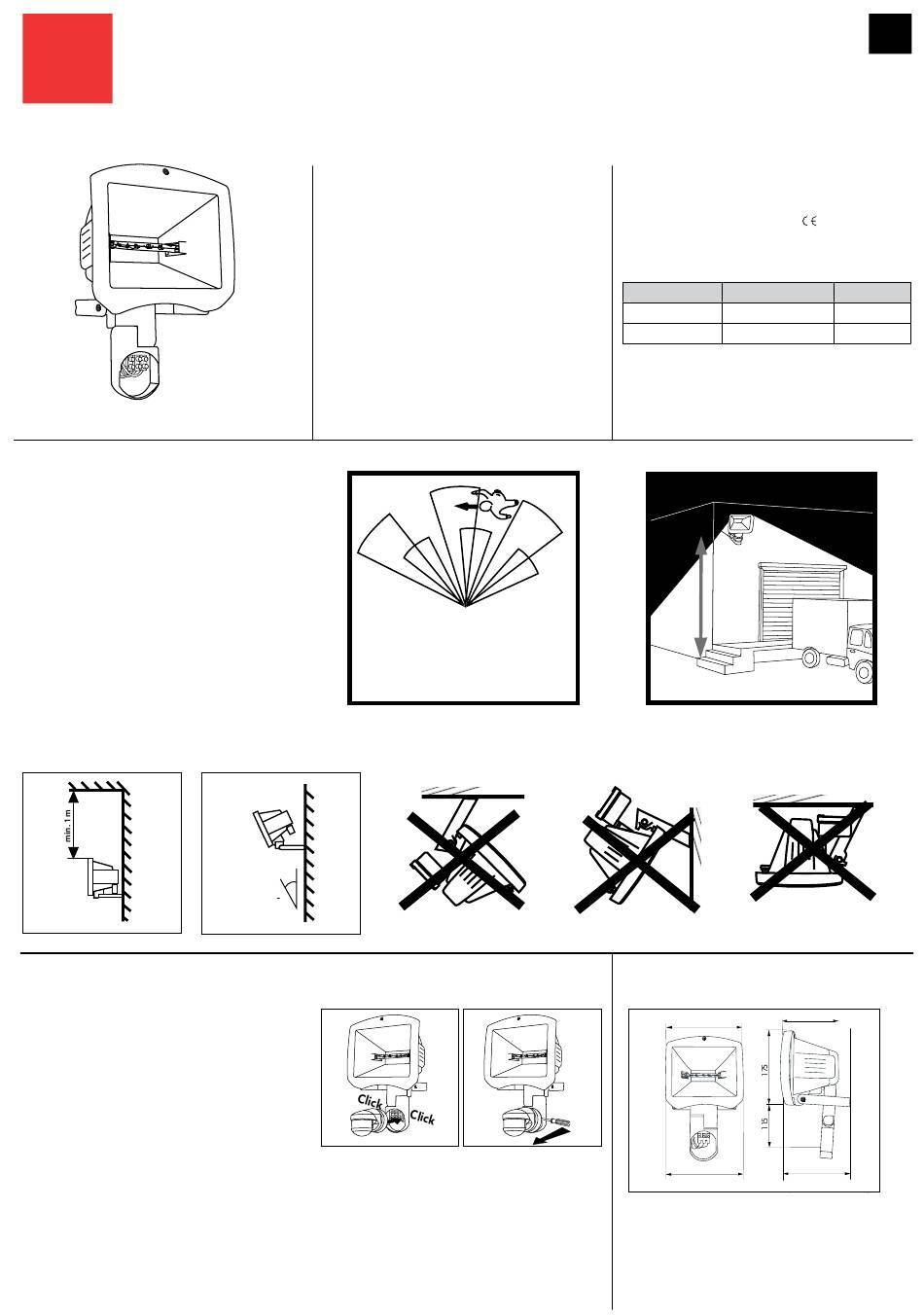

Mounting instructions - Floodlight AL5-RC-plus next 500
LUXOMAT AL5-RC-plus next 500
®
3. The right mounting place
The floodlight must be mounted on a solid wall, protected
against rain, wind and sunradiation.
The recommended mounting height is 3 m. The distance
between floodlight and illuminated surface must be a minimum
of at least 1 m. Also the distance to the street or to a neighbour-
ing house should be considered before fixing the unit.
When the walking direction is lateral to the detection field
of the motion detector, an optimum functioning of the motion
detector will be achieved. Moving frontally towards the motion
detector gives a much shorter range.
(See also LUXOMAT RC-plus next motion detector manual)
®
4. Installation
Before installation the mains to be cut off.
The installation can only be done by an electrician.
Two holes for 6 mm pegs to be drilled in a distance of 50 mm.
The enclosed hexagon screws to be screwed in and now hang
on the floodlight.
(Do not forget the washers!)
Open the junction box by unfastening the 4 screws of the
cover. In order to get the right protection against wateringress
insert the cable through the cable inlet and connect the wires
accordingly to schematic. Fasten cover again.
Adjust floodlight for the right detection and illumination field
and tighten the bracket hexagon screws.
(See also LUXOMAT motion detector manual).
®
AL5-RC-plus next
®
1. Function
The 500 W floodlight is supplied with a plug-in socket only
for the LUXOMAT RC-plus next series. By means of this any
®
combination of 130°, 230° or 280° version can be achieved
with a minimum of stockkeeping.
You can get LUXOMAT
different detection areas: 130°, 230° or 280°.
So you can attach the best motion detector to the floodlight to
cover every field of application.
Lateral mounting to
walking direction
ca. 30°
5
Pluging-in
For plugging-in to produce
with the hand the right coun-
ter pressure.
RC-plus next motion detectors with 3
®
Unplugging
To remove the motion detec-
tor from the socket to use a
small screwdriver as shown
in picture.
2. Technical data
11
Power-supply: 230 V~ ±10 %
Lamp: R7 s (118 mm) max. 500 W
Protection: IP44 / I /
Housing: made of die-cast aluminium
Ambient temperature: -25° C to +50° C
Dimensions: H 160 x W 184 x D 290 mm
Description Colour
AL5-RC-plus next white
AL5-RC-plus next black
Accessory
Fluo lamp
CdS-T-AP
RC-plus next 130 / 230 / 280
3m
Mounting hight
5. Dimensions (mm)
184
184
145
145
EN
Part No.
92401
92400
33316
92367
130
130
160
160
