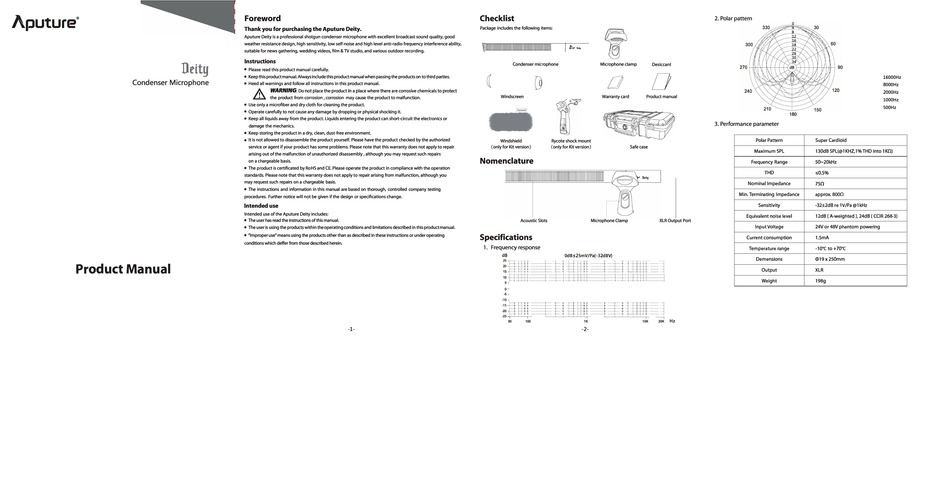

Aputure Deity Product Manual

Aputure"
lldty
Condenser Microphone
Product Manual
Foreword
Thank you for purchasing the Aputure Deity.

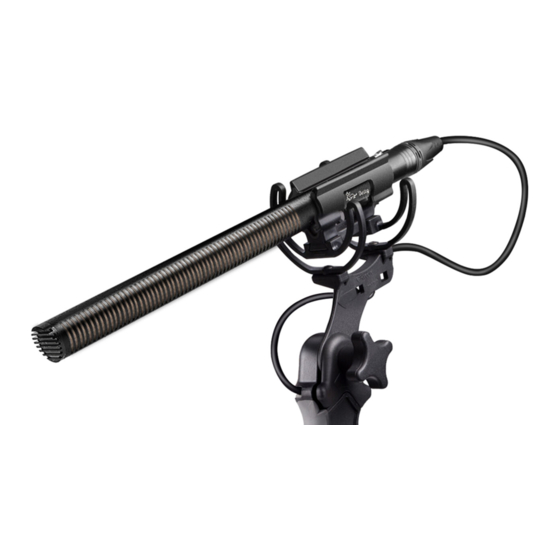

Aputure Deity is a professional shotgun condenser microphone with excellent broadcast sound quality, good
weather resistance design, high sensitivity, low self-noise and high level anti-radio frequency interference ability,
suitable for news gathering, wedding videos, film & lV studio, and various outdoor recording.
Instructions
• Please read this product manual carefully.
• Keep this product manual. Always include this product manual when passing the products on to third parties.
• Heed all warnings and follow all instructions in this product manual.
A.
WARNING:
Do not place the product in a place where there are corrosive chemicals to protect
.Lil._
the product from corrosion , corrosion may cause the product to malfunction.
• Use only a microfiber and dry cloth for cleaning the product.
• Operate carefully to not cause any damage by dropping or physical shocking it.
• Keep all liquids away from the product. Liquids entering the product can short-circuit the electronics or
damage the mechanics.
• Keep storing the product in a dry, clean, dust-free environment.
• It is not allowed to disassemble the product yourself. Please have the product checked by the authorized
service or agent if your product has some problems. Please note that this warranty does not apply to repair
arising out of the malfunction of unauthorized disassembly , although you may request such repairs
on a chargeable basis.
• The product is certificated by RoHS and CE. Please operate the product in compliance with the operation
standards. Please note that this warranty does not apply to repair arising from malfunction, although you
may request such repairs on a chargeable basis.
• The instructions and information in this manual are based on thorough, controlled company testing
procedures. Further notice will not be given if the design or specifications change.
Intended use
Intended use of the Aputure Deity includes:
• The user has read the instructions of this manual.
• The user is using the products within the operating conditions and limitations described in this product manual.
• "Improper use" means using the products other than as described in these instructions or under operating
conditions which deffer from those described herein.
-1-
Checklist
i:
Package includes the following items:
J
� 11���1111111���1111111���11111����11111���1
.e,. ...
Condenser microphone Microphone clamp Desiccant
0
1
0
..
[g
Windscreen Warranty card Product manual
Windshield Rycote shock mount
(only for Kit version) ( only for Kit version) Safe case
Nomenclature
Acoustic Slots Microphone Clamp XLR Output Port
Specifications
1. Frequency response
dB OdB<2SmV/Pa(-32dBV)
: : : r= E E a1E���1�3�13�Ea1E���E�a�13�3a1E��3
- E iSSSt=====E==t=t=ES=EES=====t==t=S=t=EEEEE====l
15-
10
5-
-
0
·5-
_ , , -�E E s1E���1�3�13�Es1E���E�s�13�3s1E��3
-10-
-20-
-25->- , ��+-- - � �����4- - � �����-4- -�, -
50 100 1K 10K 20K
-2-
2. Polar pattern
180
3. Performance parameter
Polar Pattern Super Cardioid
Maximum SPL 130dB SPL(@1 KHZ, 1% THD into 11<0)
Frequency Range 50~20kHz
THD �0.5%
Nominal Impedance 750
soon
approx.
Min. Terminating Impedance
Sensitivity -32±2dB re 1V/Pa @1 kHz
Equivalent noise level 12dB (A-weighted ), 24dB ( CCIR 268-3)
Input Voltage 24V or 48V phantom powering
Current consumption 1.SmA
Temperature range -lO"C to +70"C
Dem ens ions <D19 x 250mm
Output XLR
Weight 198g
Hz
16000Hz
8000Hz
2000Hz
lOOOHz
SOOHz
