Summary of Contents for Wallenstein P202

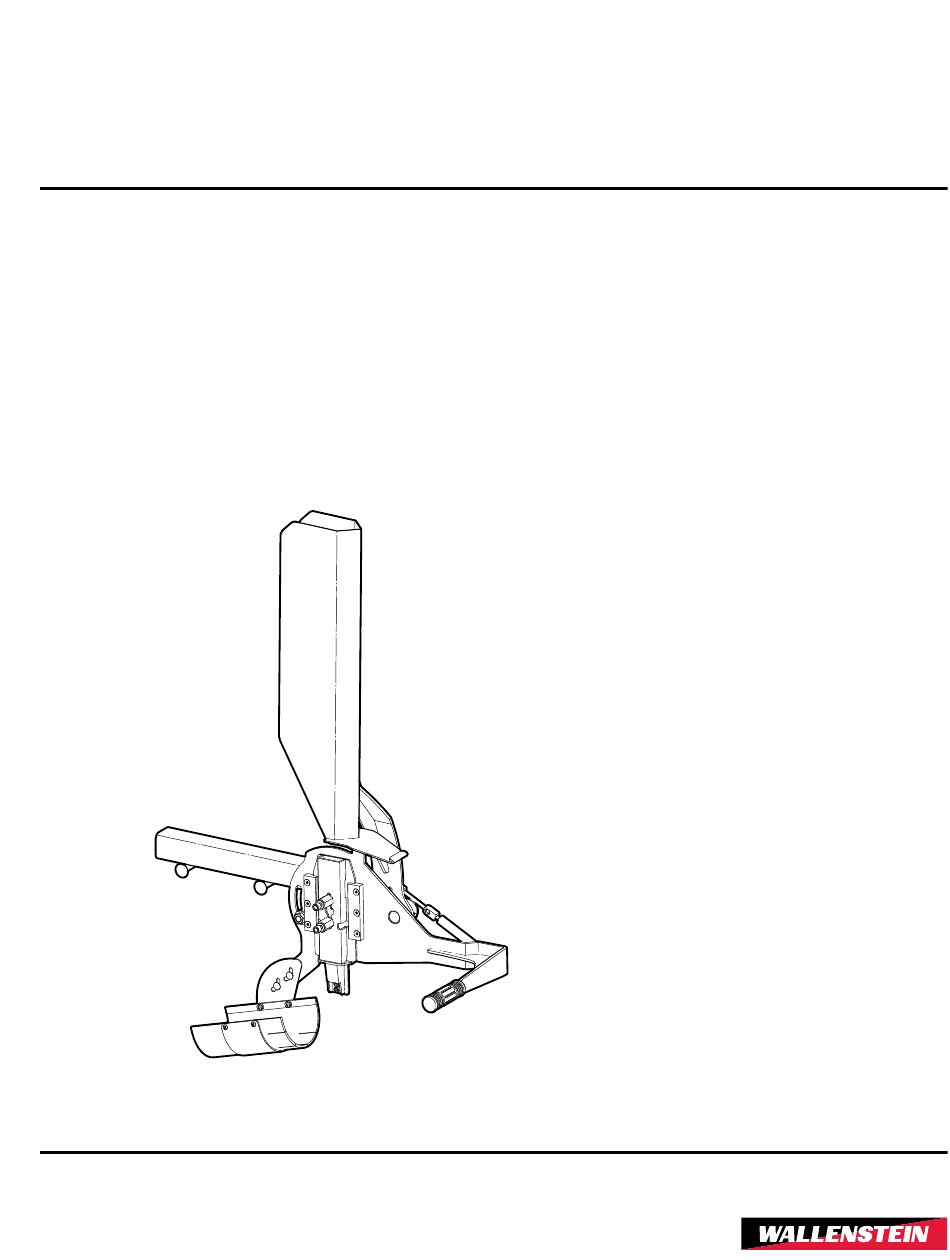

- Page 1 ASSEMBLY INSTRUCTIONS Pivoting Chain Saw Holder Rev Jul-2020 Part Number: Z97806_En...
-
Page 2: Safety Alert Symbol
P202 Safety Safety Alert Symbol This Safety Alert Symbol means: ATTENTION! BE ALERT! YOUR SAFETY IS INVOLVED! The Safety Alert Symbol identifies important safety messages on the machine and in this instruction. This symbol means be alert to the possibility of personal injury or death. Follow instructions provided. -
Page 3: Parts Breakdown
P202 Parts Breakdown 23 24 22 17 21 11 Item No. Part No. Description Item No. Part No. Description 2089L561 Chain Saw Debris Guard Z72351 Jam Nut, 1/2NC 2251W045 Universal Chain Saw Adapter Z762510 Carriage Bolt, 1/2NC x 3-1/2" 2251W047 Chain Saw Pivot... - Page 4 P202 Assembling Chain Saw Holder Step 3 • Slide Chain Saw Pivot Base (5) onto the longer shaft on the Chain Saw Pivot. Place the keyed slot of the Pivot Stop Step 1 Washer (41) over the end of the shaft then secure with Washer (15) and Hex bolt (37).
- Page 5 P202 Step 4 Step 5 • Fasten Chain Saw Guard (4) to Guard Spine (6) with four • Install Ball Studs (33) on the Chain Saw Pivot. The Ball 1/4"NC x 3/4" Carriage Bolts (31) and 1/4" Flange Locknuts Stud in the Guard arm threads in. The one on the base end (32).
- Page 6 P202 Step 7 Attaching Chain Saw to Holder • Slide the Assembled Chain Saw Holder into the receiver on the Wood Processor. Insert two 1/2"NC x 3-1/2" Carriage IMPORTANT! The chain saw must have dual bar-mounting Bolts (23) and 1/2 NC Hex Locknuts (24) into the holder to studs to mount the chain saw adapter plate.
- Page 7 P202 Step 13 Step 14 • Slide the saw adapter plate into the guides on the chain saw • Close the draw latch over the catch on the saw / adapter pivot. Make sure the draw latch is open so the saw can plate.
-
Page 8: Product Warranty
P202 Product Warranty LIMITED WARRANTY Wallenstein products are warranted to be free of defects in materials and workmanship under normal use and service, for a period of Five Years for Consumer Use Two Years for Commercial/Rental Use from the date of purchase, when operated and maintained in accordance with the opera�ng and maintenance instruc�ons supplied with the unit. -
Page 9: Bolt Torque Specifications
P202 Bolt Torque Specifications Checking Bolt Torque Imperial Bolt Torque Specifi cations The tables shown give correct torque values for various Torque Value bolts and capscrews. Tighten all bolts to the torque values Bolt specified in the table, unless indicated otherwise. Check SAE Gr.
