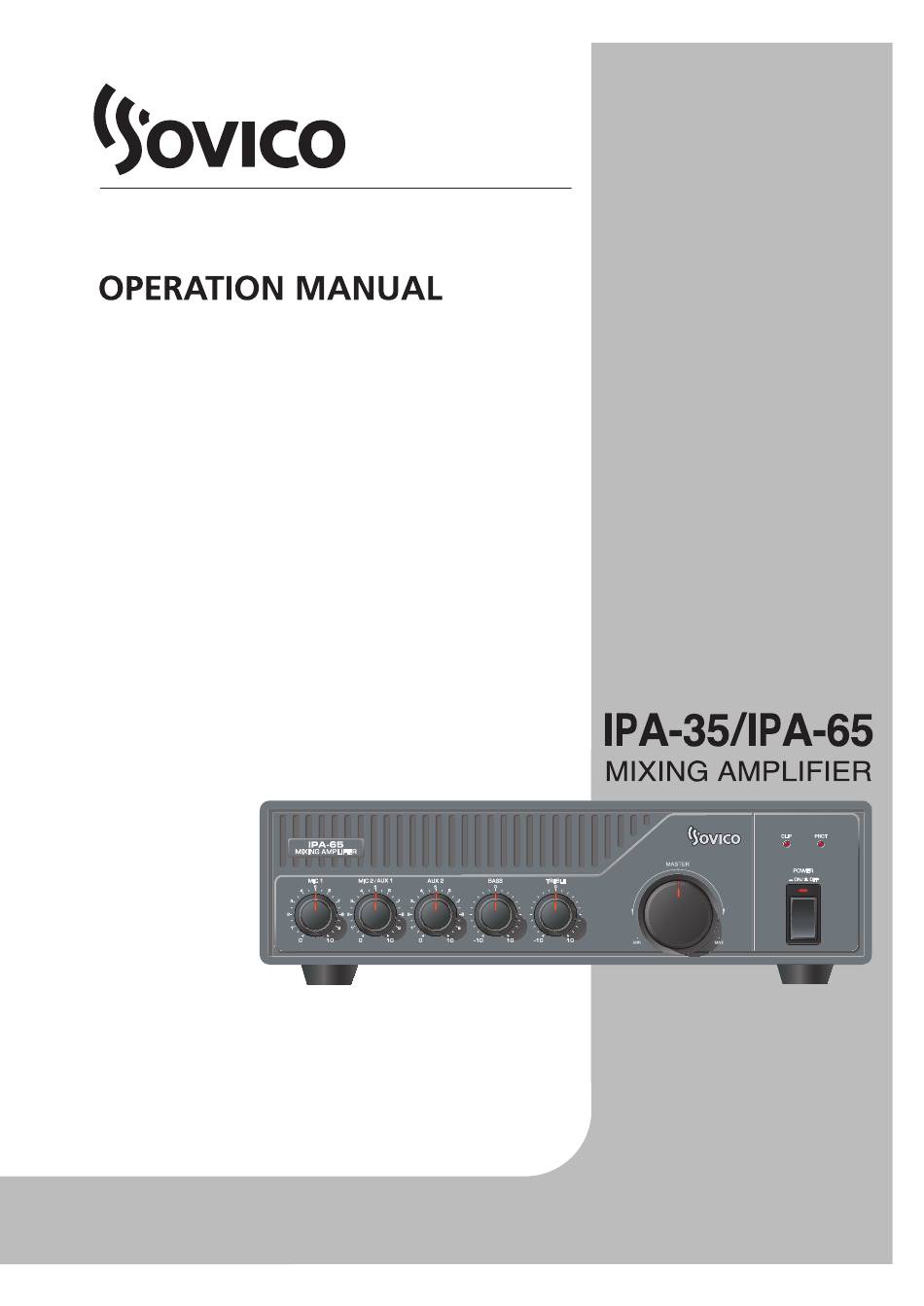

MIXING AMPLIFIER CONTENTS WELCOME UNPACKING BEFORE USE SAFETY INSTRUCTION OPERATION FEATURES FRONT PANEL REAR PANEL CONNECTING SPEAKER CONNECTION BLOCK DIAGRAM SPECIFICATION SERVICE & WARRANTY IPA-35 / IPA-65... -
Page 3: Welcome
Be sure to keep carton boxes and other all packing materials for the carrier’s inspection. If your packing materials are in good condition, please keep them. If you ever need to return the unit to SOVICO PROFESSIONAL or an authorized service center, you should use only the original factory packing. BEFORE USE To insure proper use of this product, please read owner’s manual carefully and keep this manual in an... -
Page 4: Safety Instruction
These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of diposal. Note for the battery symbol (bottom two symbol examples): The sign Pb below the symbol for batteries indicates that this batteries contains lead. IPA-35 / IPA-65... -
Page 5: Operation
Check the connection of set in/output when protect circuits are in operation. FEATURES * Rated Output power 35W(IPA-35) and 60W(IPA-65) * 2 MIC Input and 2 AUX Inputs * Priority Function on MIC 1... -
Page 6: Front Panel
MIXING AMPLIFIER IPA-35 / IPA-65... -
Page 7: Rear Panel
This holder contains the AC overload protection fuse. If the fuse has blown out, replace if with a fuse of the same type and rating, as shown below. AC FUSE RATING MODEL 100V~120V AC 220V~240V AC IPA-35 1.6A/250V 1A/250V IPA-65 2A/250V 1A/250V IPA-35 / IPA-65... -
Page 8: Connecting Speaker
When connect speaker, pull a power cord from the outlet. And then, select a proper terminal depends on your speaker types and connection methods to connect it to speaker terminals on the rear panel. A. FOR EUROPE IPA-35 / IPA-65... - Page 9 B. FOR USA & CANADA * Note : Total impedance of speaker terminal must be higher than regulated impedance (refer to above figure) in any time, and do not use two sorts of impedance (high and low impedance) simultaneously. IPA-35 / IPA-65...
-
Page 10: Connection
MIXING AMPLIFIER IPA-35 / IPA-65... -
Page 11: Block Diagram
MIXING AMPLIFIER BLOCK DIAGRAM IPA-35 / IPA-65... -
Page 12: Specification
MIXING AMPLIFIER SPECIFICATIONS ■ ELECTRICAL Rated Output IPA-35/65 (at T.H.D 1%) IPA-35:35W, IPA-65:60W Frequency Response(±3dB) MIC 1, 2 100Hz-10kHz AUX 1,2 80Hz-15kHz Telephone 330Hz-3kHz Total Harmonic Distortion (at Rated Output, 1kHz) Less Than 1% Signal to Noise Ratio MIC 1, 2... -
Page 13: Service & Warranty
SERVICE AND WARRANTY To purchase SOVICO PROFESSIONAL gear and optional accessories, contact any authorized SOVICO PROFESSIONAL distributor. For a list of SOVICO PROFESSIONAL distributors please visit our website at www.sovicopro.com. For replacement parts, service and repairs please contact the SOVICO PROFESSIONAL distributor in your country. - Page 14 MIXING AMPLIFIER MEMO IPA-35 / IPA-65...
