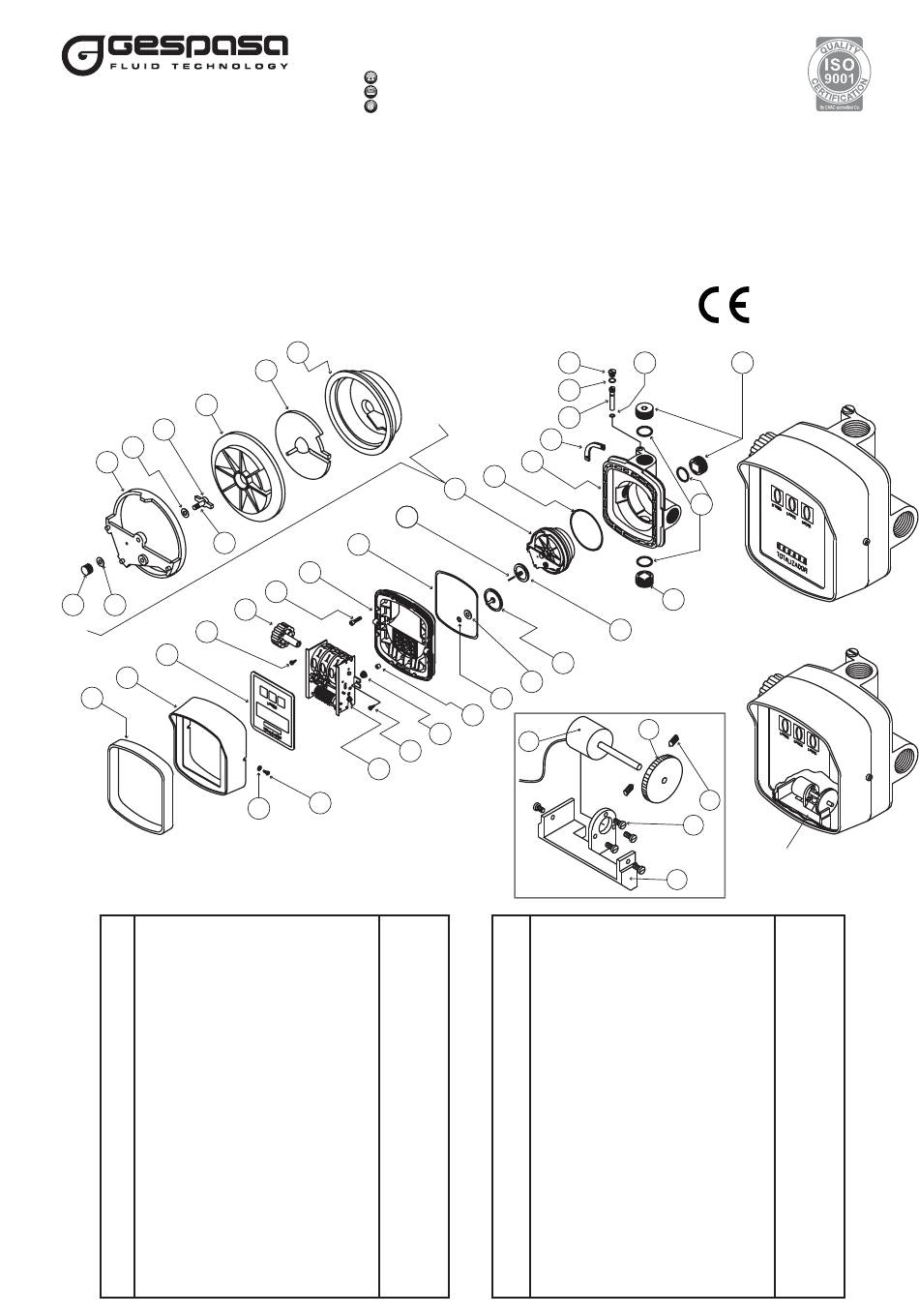

MG-80
VOLUMETRIC MECHANICAL METER
MG-80V
VOLUMETRIC MECHANICAL METER with VITON JOINTS
30
31
25
32
35
25
33
16
17
18
19
12
No.
DESCRIPTION
1
1" INLET/OUTLET PLUG
2
24x3.5 mm JOINT
2
D.24x3.5 mm VITON JOINT
3
5.28x1.78 mm CALIBRATION JOINT
3
D.5.28x1.78 mm VITON CALIBRATION JOINT
4
PLUG WITH PROTECTION REGULATION
5
D.9.5x1.5 mm JOINT
5
D.9.5x1.5 mm VITON JOINT
6
10x47 mm FLOW SCREW
7
HOUSING FIXATION SUPPORT
8
METER HOUSING
9
80x3 mm VITON JOINT
10
MEASURING CHAMBER
11
D.2x16 mm DIN.6325 PIN
12
BLACK RUBBER NUT CAP
13
SPECIAL SQUARE VITON JOINT
14
CENTRAL COVER
15
M-5x22 mm DIN.912 SCREW
16
RESET DRIVE
17
D.4.2x9.5 mm DIN.7981 ZINC-PLATED SCREW
18
3-DIGIT PLATE
19
NUMERATION SET COVER
Partida Horta d'Amunt s/n · Apdo. de Correos nº 149
25600 BALAGUER (Lleida) · SPAIN
++34 (9)73 451 072
++34 (9)73 448 400
gespasa@gespasa.es · http://www.gespasa.es
CODE 32000
CODE 32070
INSTRUCTION MANUAL
WARRANTY AND CONFORMITY DECLARATION
28
29
11
13
14
15
17
22
21
20
CODE
320004001
803100022
803101022
803100024
803101024
320004004
803100045
803101031
320004006
320004007
320004008
803101025
320002000
804000001
320004010
320704011
320004012
805400008
320005001
805404003
320004113
320004014
MGI-80
VOLUMETRIC MECHANICAL METER WITH PULSER
MGI-80V
VOLUMETRIC MECHANICAL METER WITH PULSER and VITON JOINTS
4
5
6
7
8
9
10
26
25
24
34
23
37
No.
20
M-4 WASHER
21
D.3.5x9.5 mm DIN.7981 ZINC-PLATED SCREW
22
NUMERATION
23
CONICAL GEAR
24
D.3.69x1.78 mm JOINT
24
D.3.69x1.78 mm VITON JOINT
25
GEAR WHEEL RING
26
GEAR WHEEL
27
DOUBLE PINION
28
MEASURING BOX
29
NUTATING DISC
30
TOP COVER
31
COVER LEVER
32
MEASURING BOX SUPPORT
33
CM GEAR MEASURING UNIT PINION
34
D.7 x D.4x6 mm SLEEVE
35
4x15 mm LEVER SHAFT
37
PULSER
38
TRANSMISSION GEAR
39
3x6 mm ALLEN STUD
40
M-3x5 mm DIN.7985 SCREW
41
3-DIGIT ENCODER SUPPORT
3
1
MG-80
2
1
27
MGI-80
38
39
40
PULSER
EMISOR DE IMPULSOS
41
DESCRIPTION
800300001
805404002
320005002
320001002
803100023
803101023
320001005
320001003
320001004
320002001
320002002
320002003
320002004
320002006
320002005
320004016
320002007
805800002
805890003
805701001
805406003
321105009
CODE 32050
CODE 32230
CODE
M-1
